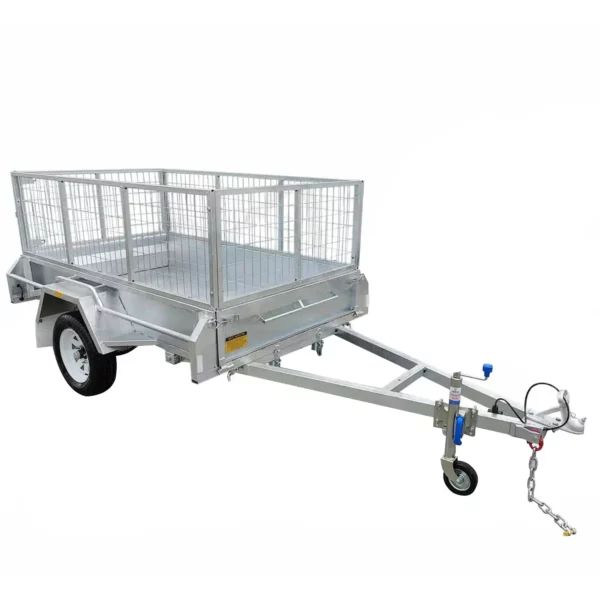

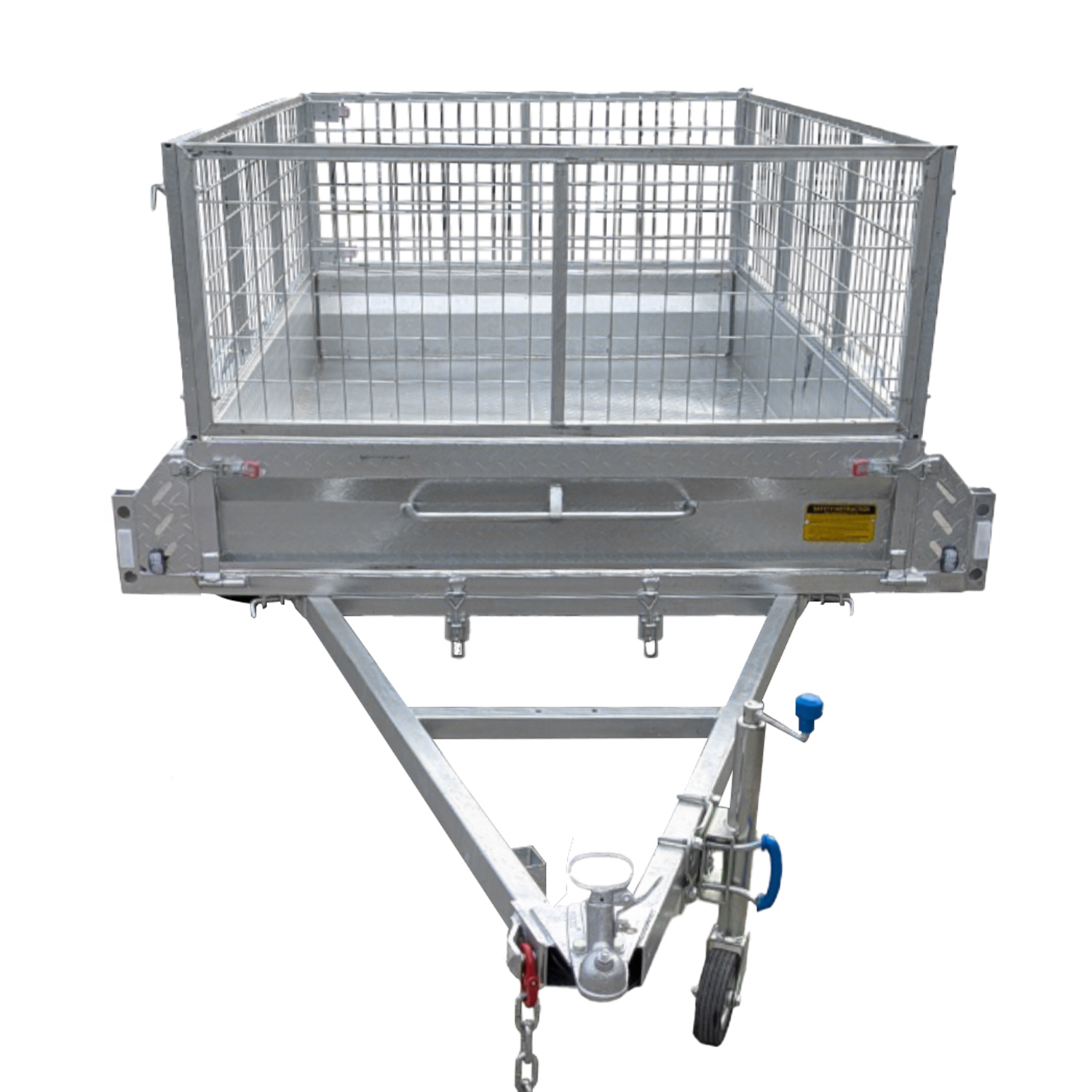

A 6x4 single axle box trailer with mesh sides and a hitch with a blue knob at the front. Its equipped with a safety chain and jockey wheel, empty and set against a plain white background.

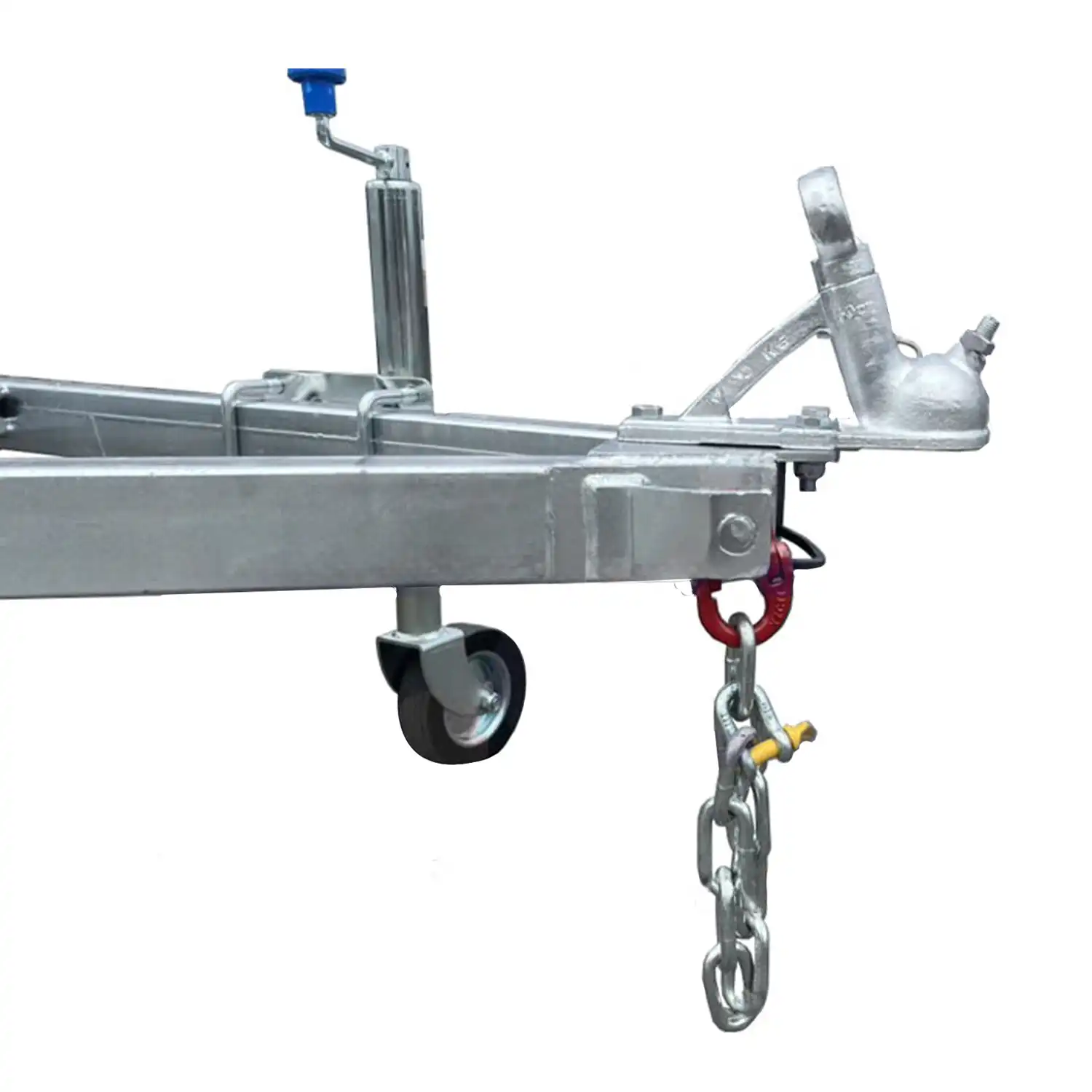

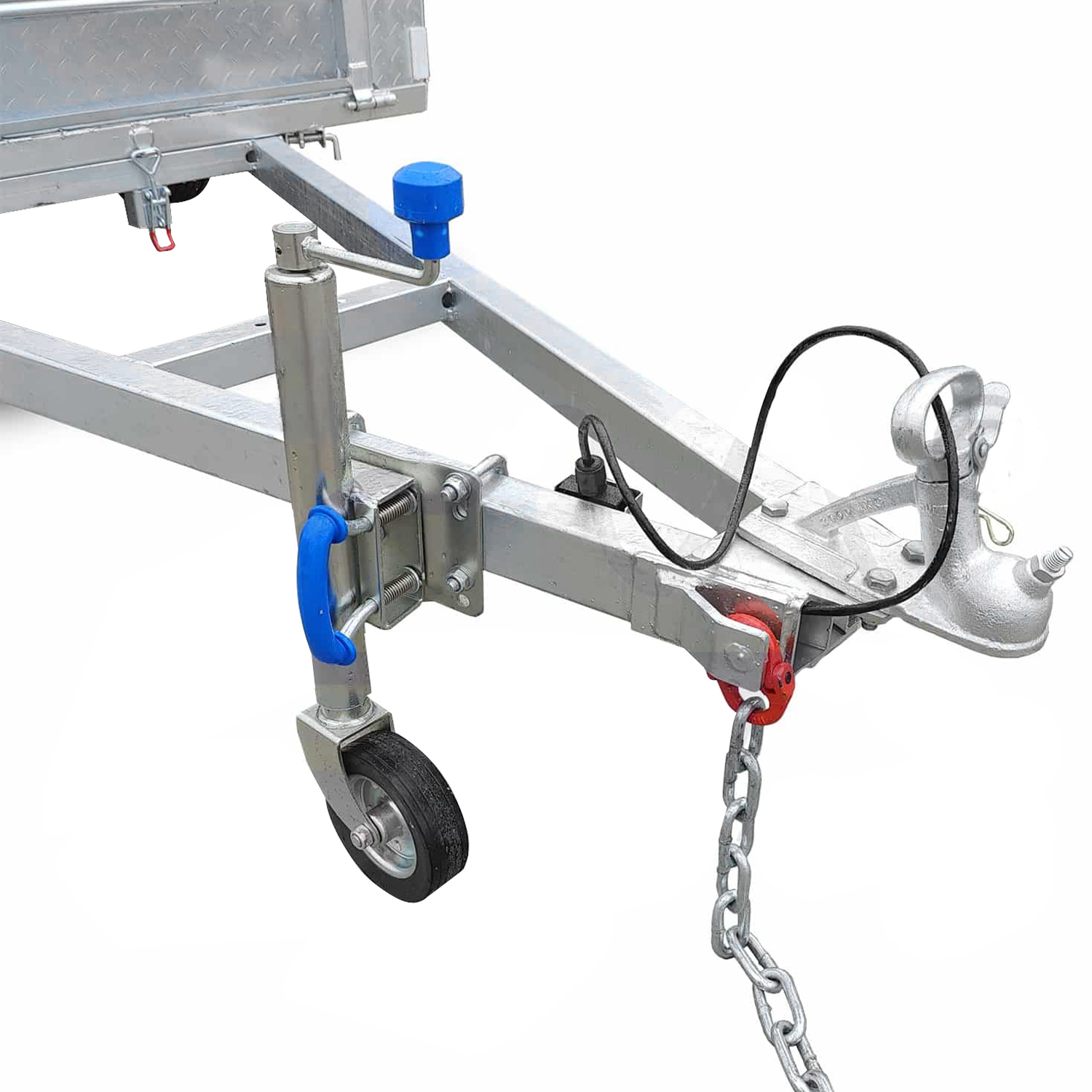

The 6x4 Single Axle Box Trailer ATM 750KG features a metallic hitch with a blue handle and is mounted on a frame with a small wheel. Below, a heavy-duty chain with a red hook hangs, and it includes a coupler for towing connections.

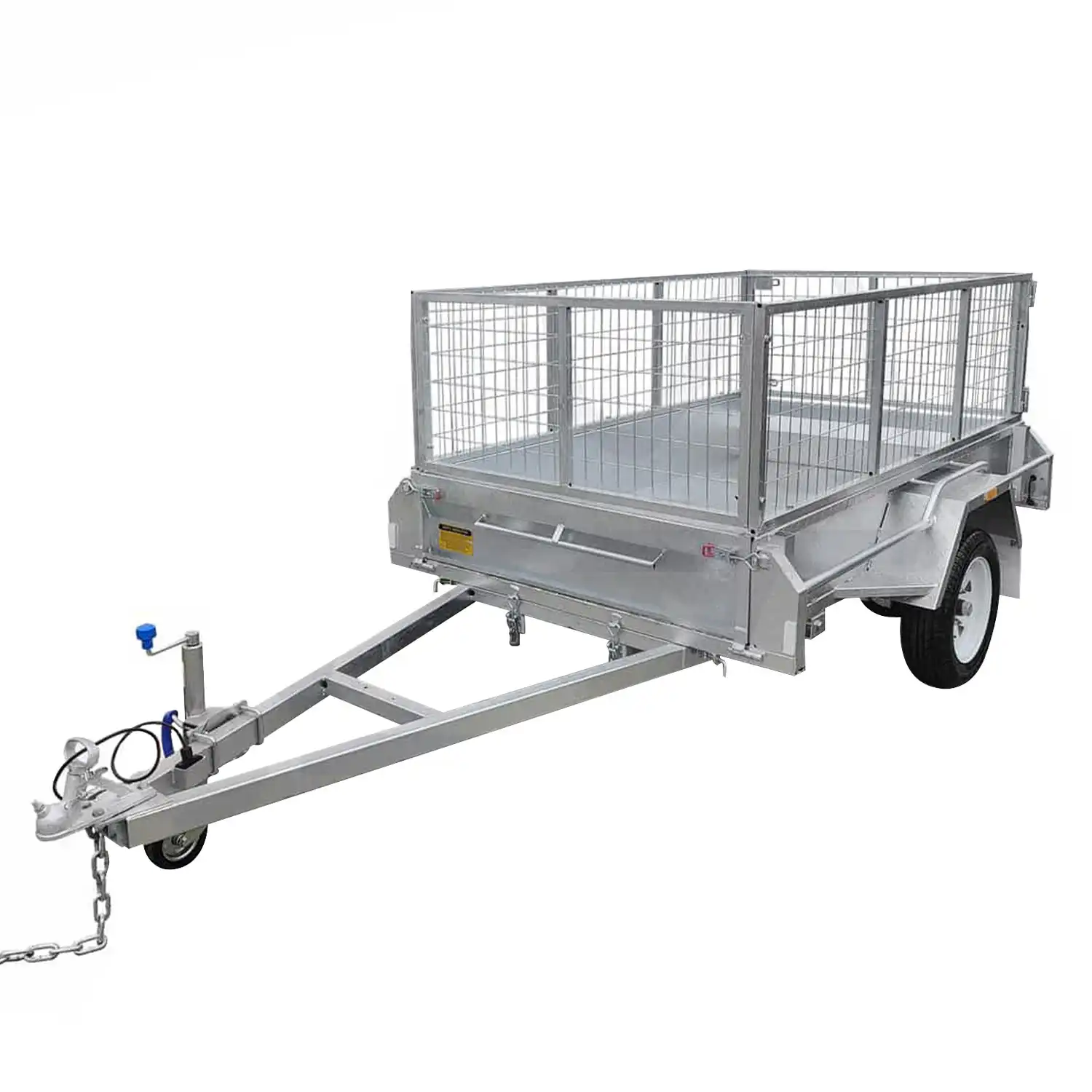

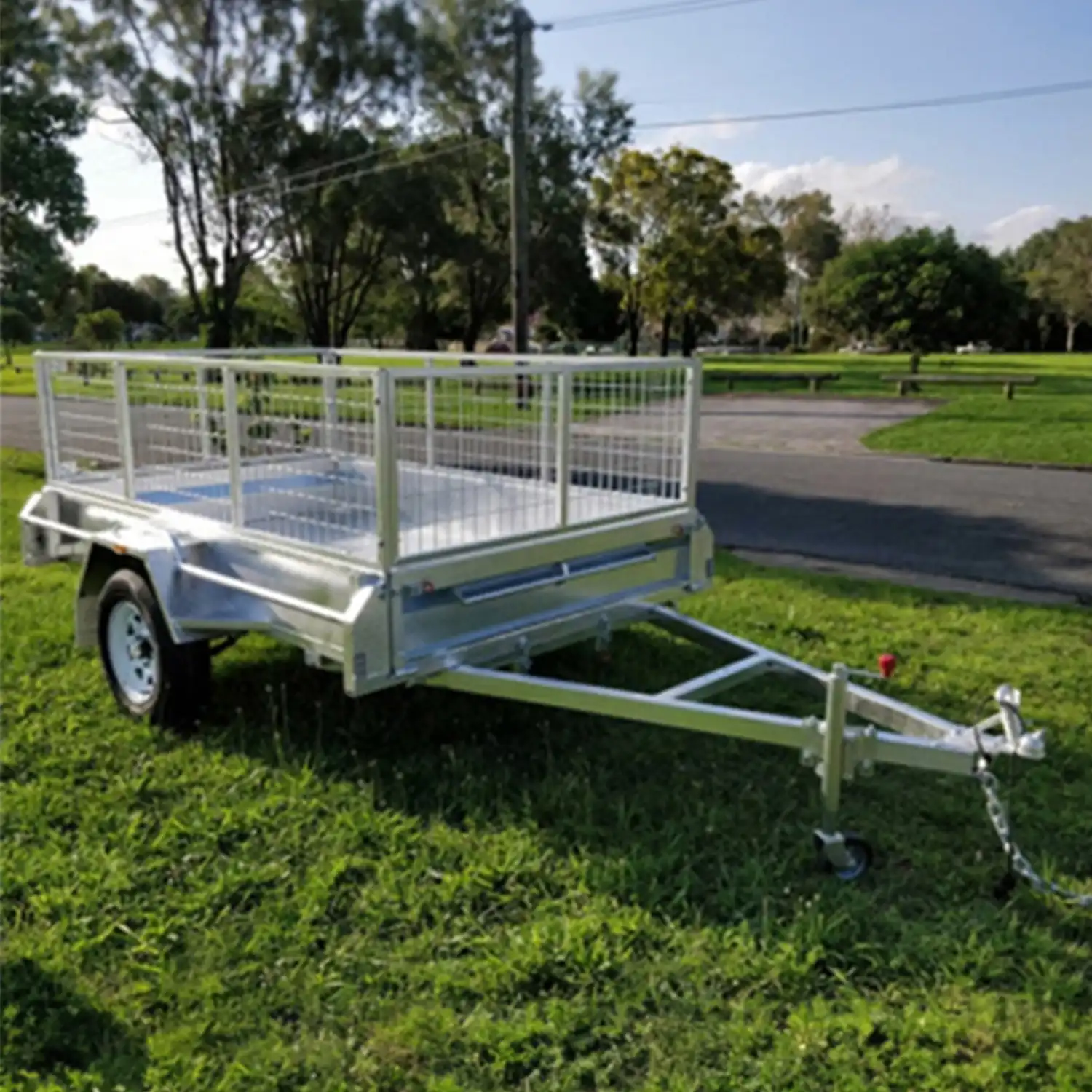

This 6x4 Single Axle Box Trailer, featuring high mesh sides and a triangular hitch with a blue connector, comes equipped with two wheels and a jockey wheel. The trailer is presented against a white background.

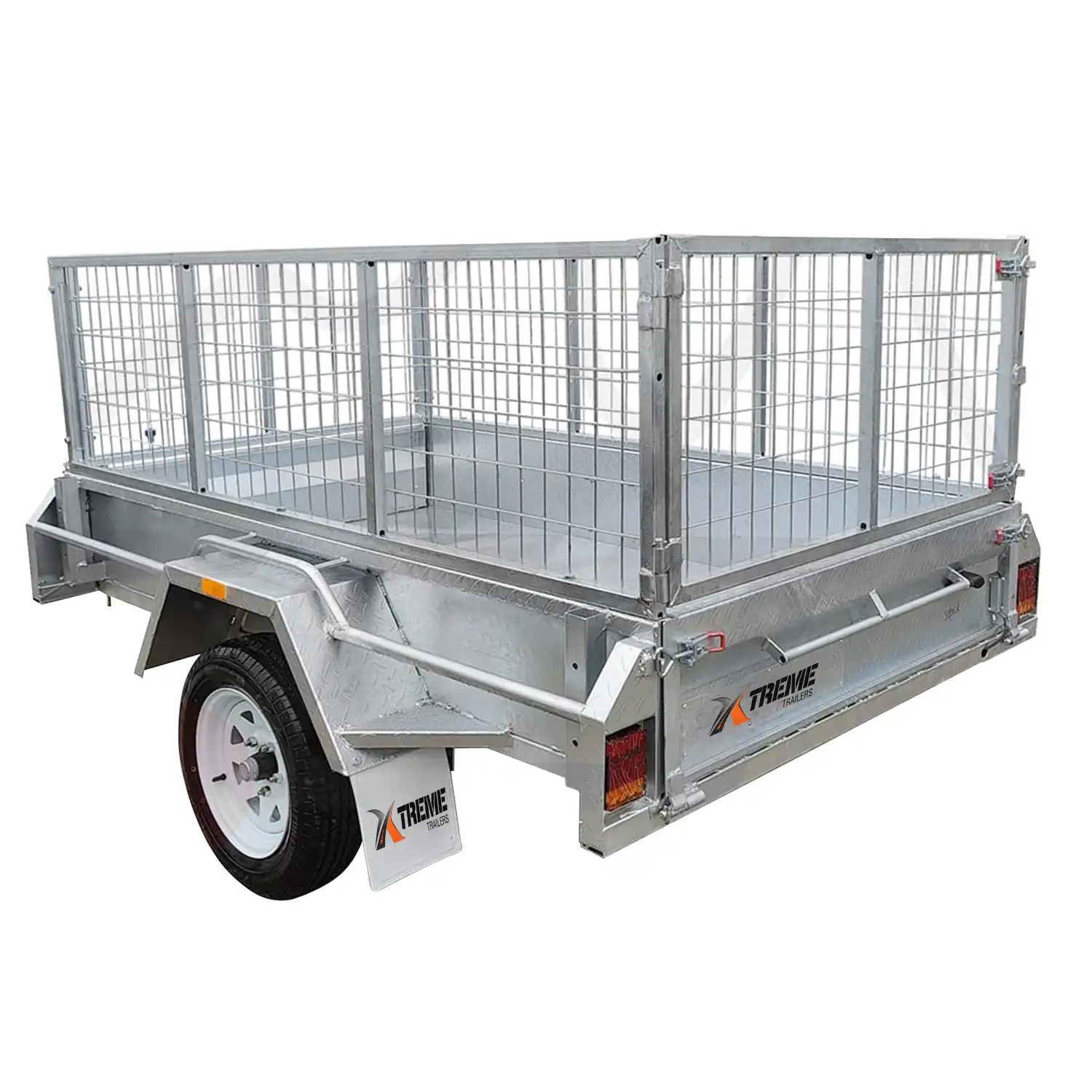

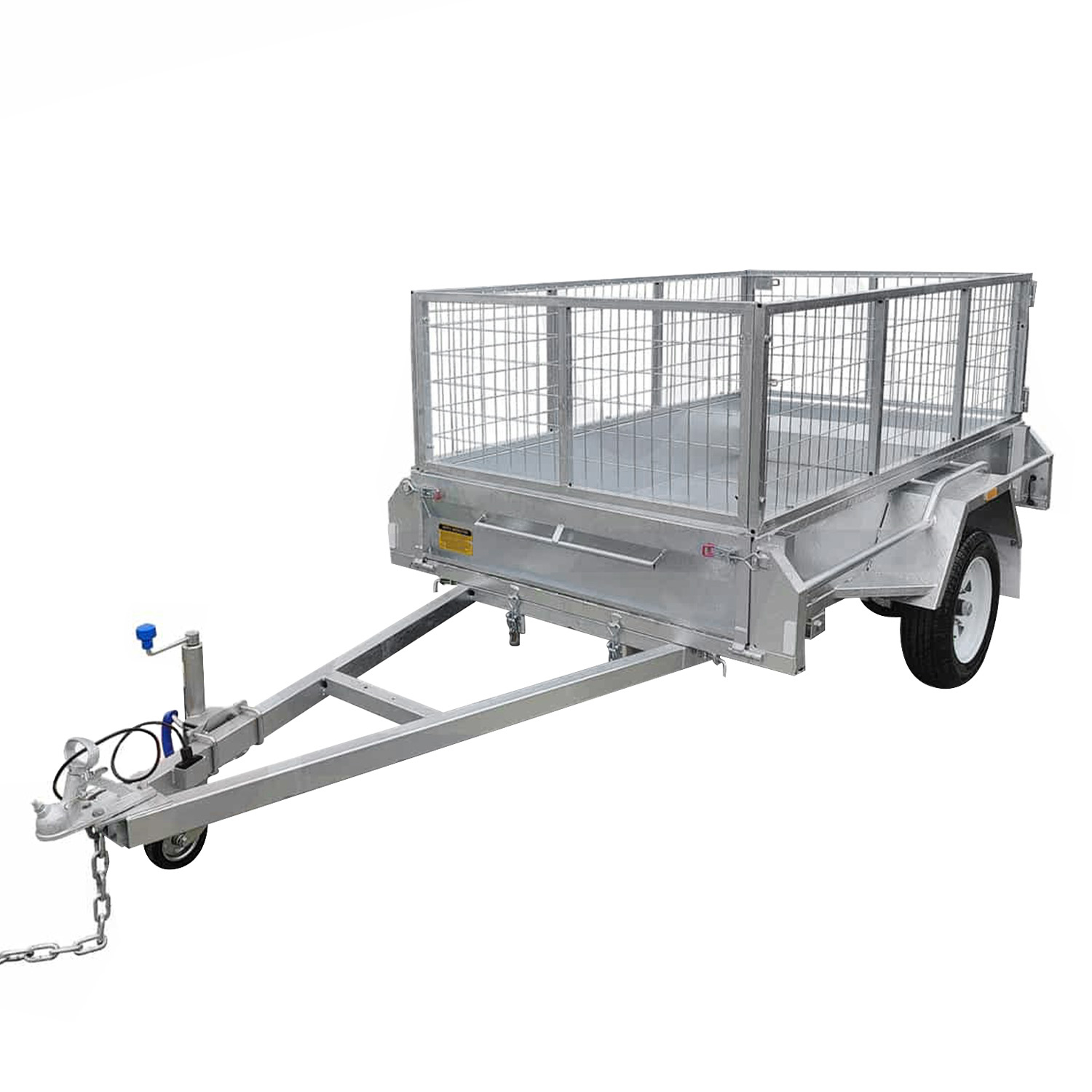

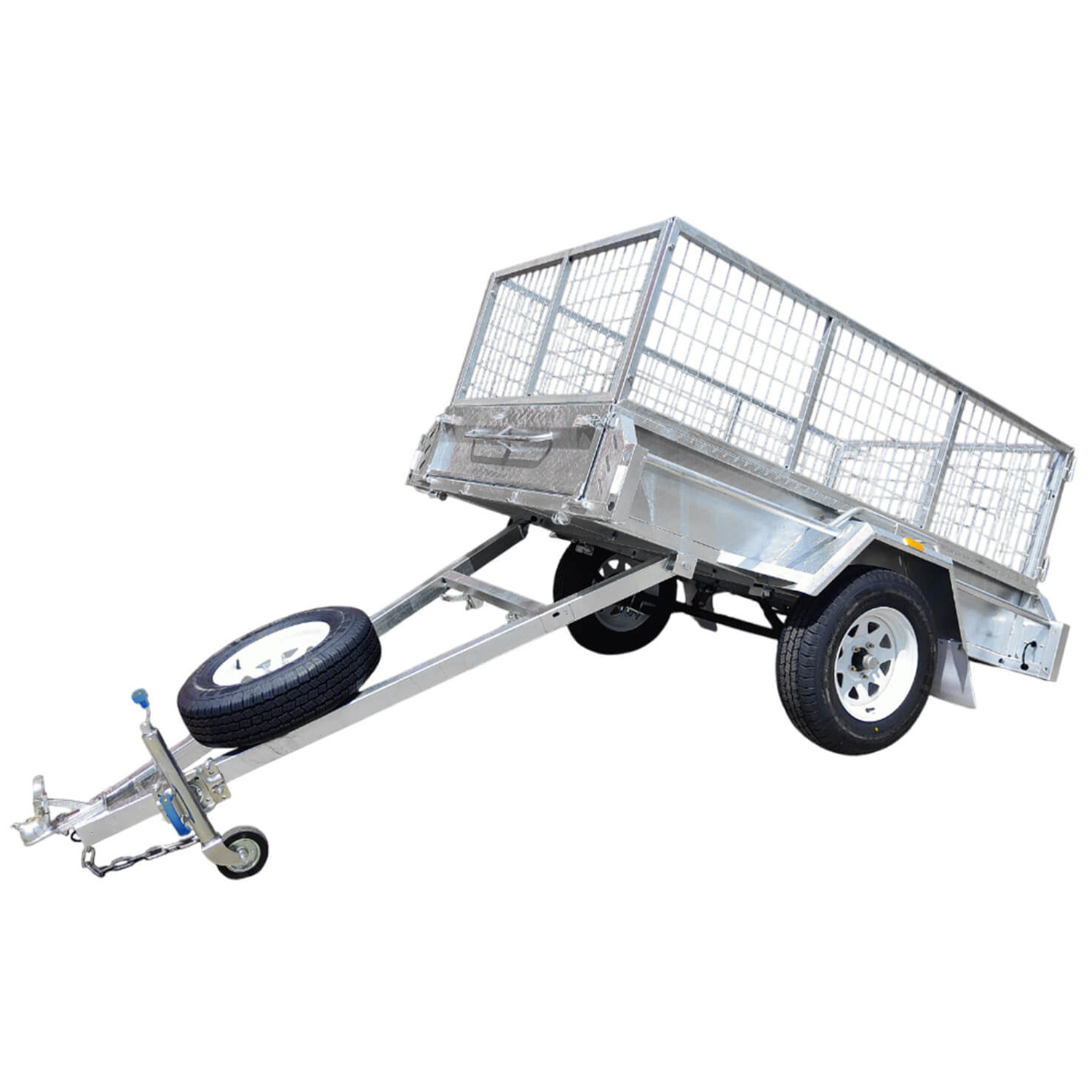

A durable metal 6x4 single axle box trailer with wire mesh sides, silver finish, white wheels, and mudguards. The brand XTREME is displayed on the side and mudguard. It supports ATM 750KG and features a jockey wheel.

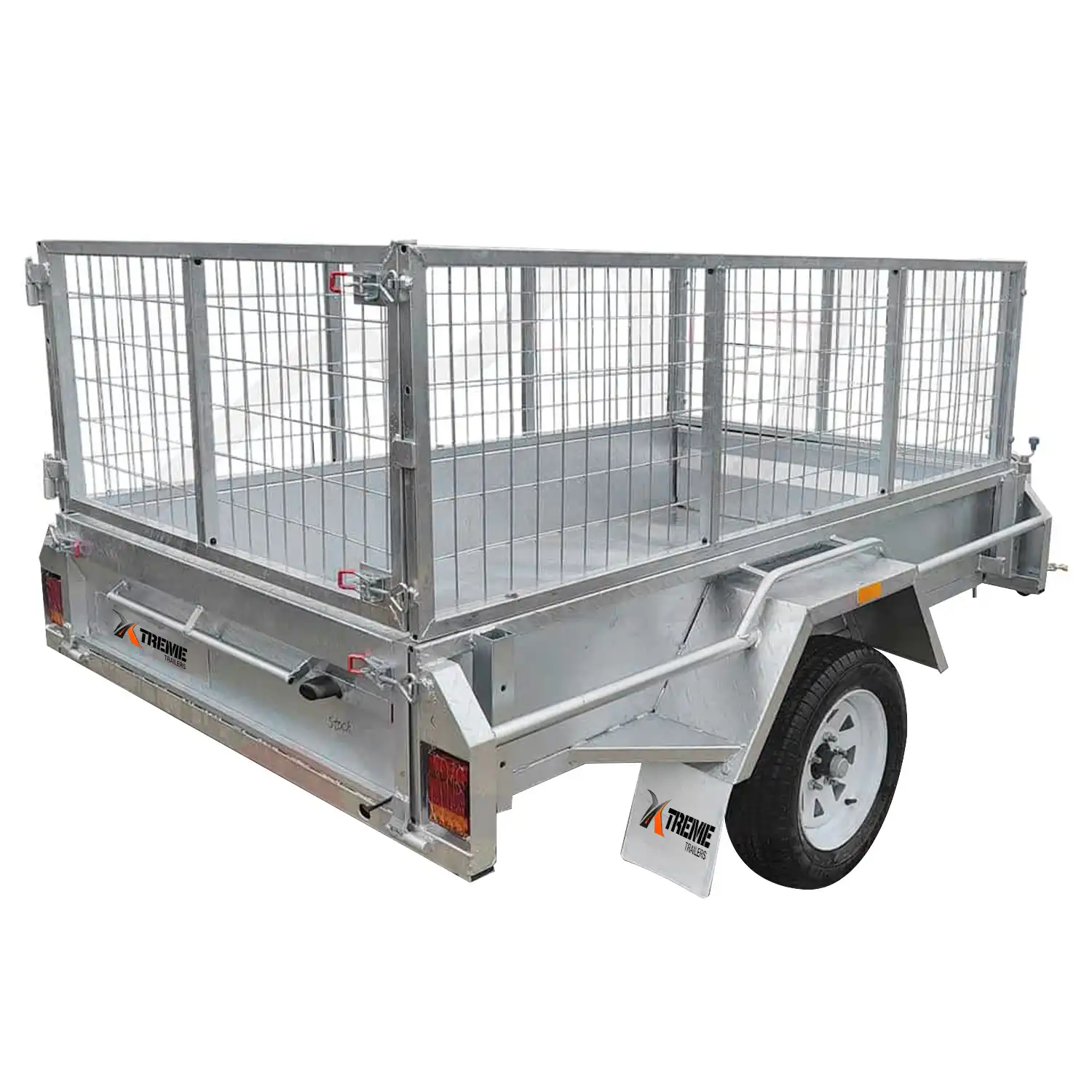

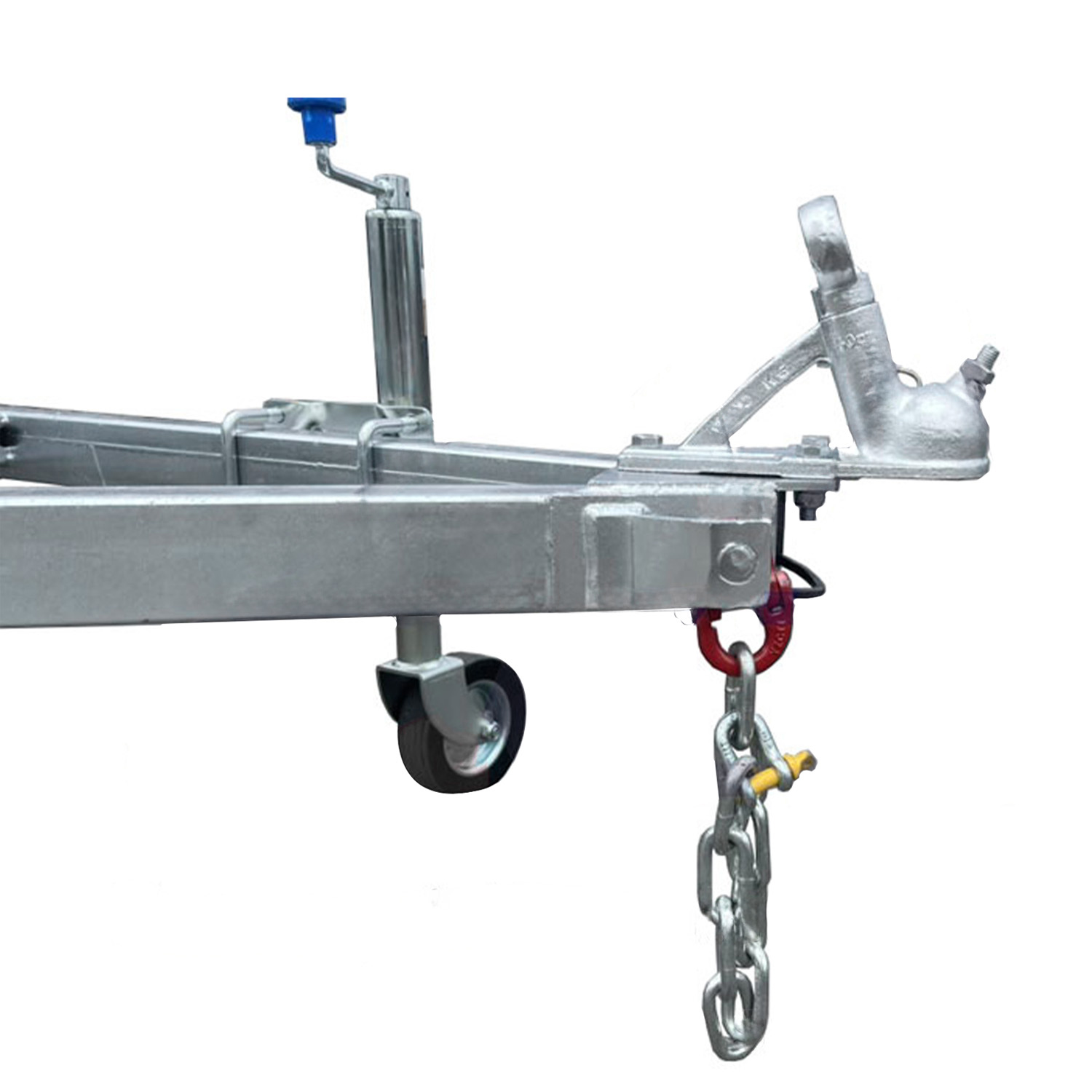

The 6x4 Single Axle Box Trailer ATM 750KG with a jockey wheel features mesh sides, a single axle with white wheels, a tailgate, reflective lights, and branding on the mudguard and tailgate for transporting goods.

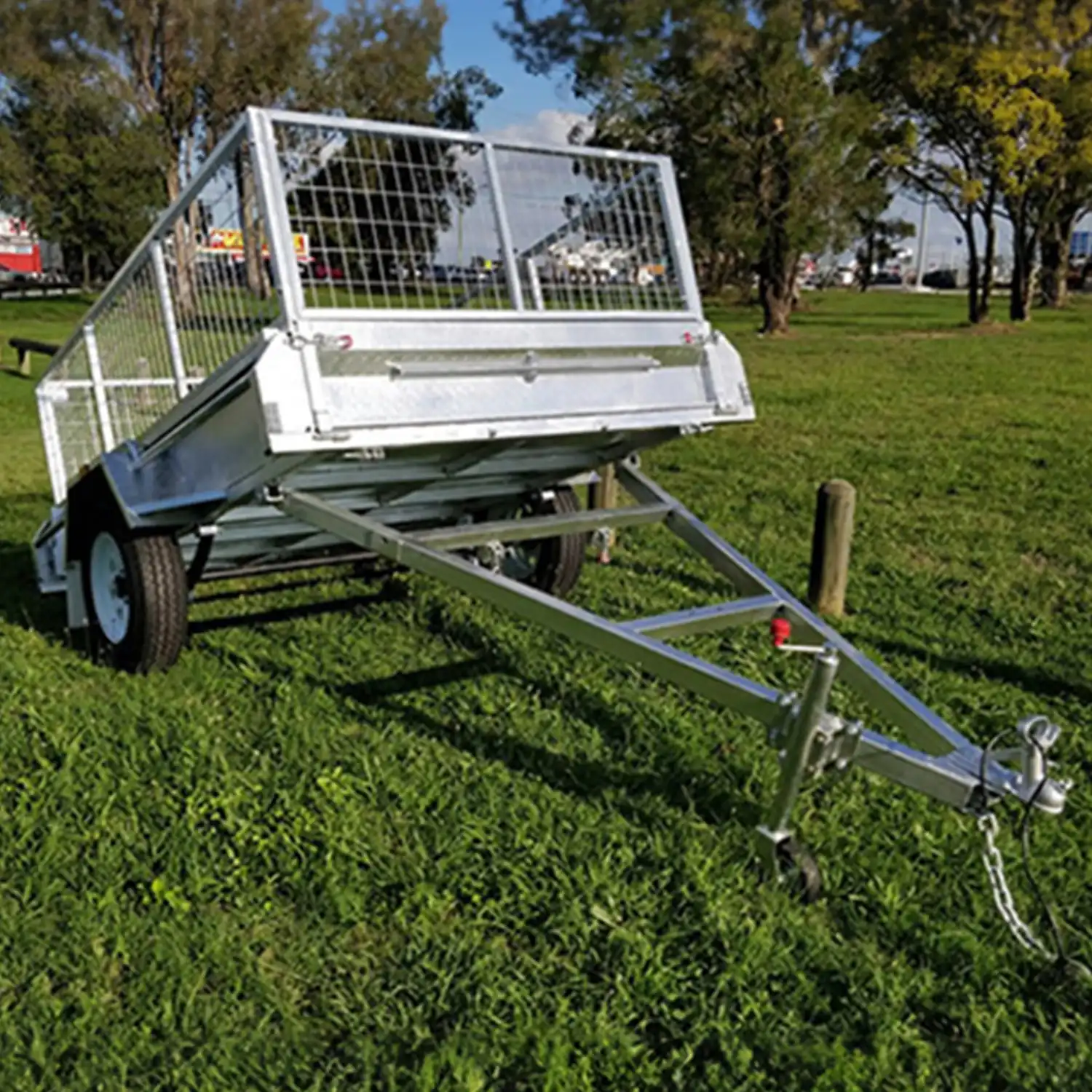

A 6x4 Single Axle Box Trailer with a silver finish, cage, two wheels, and a jockey wheel is parked on green grass. A tow bar extends toward the viewer, with trees and a cloudy blue sky in the background.

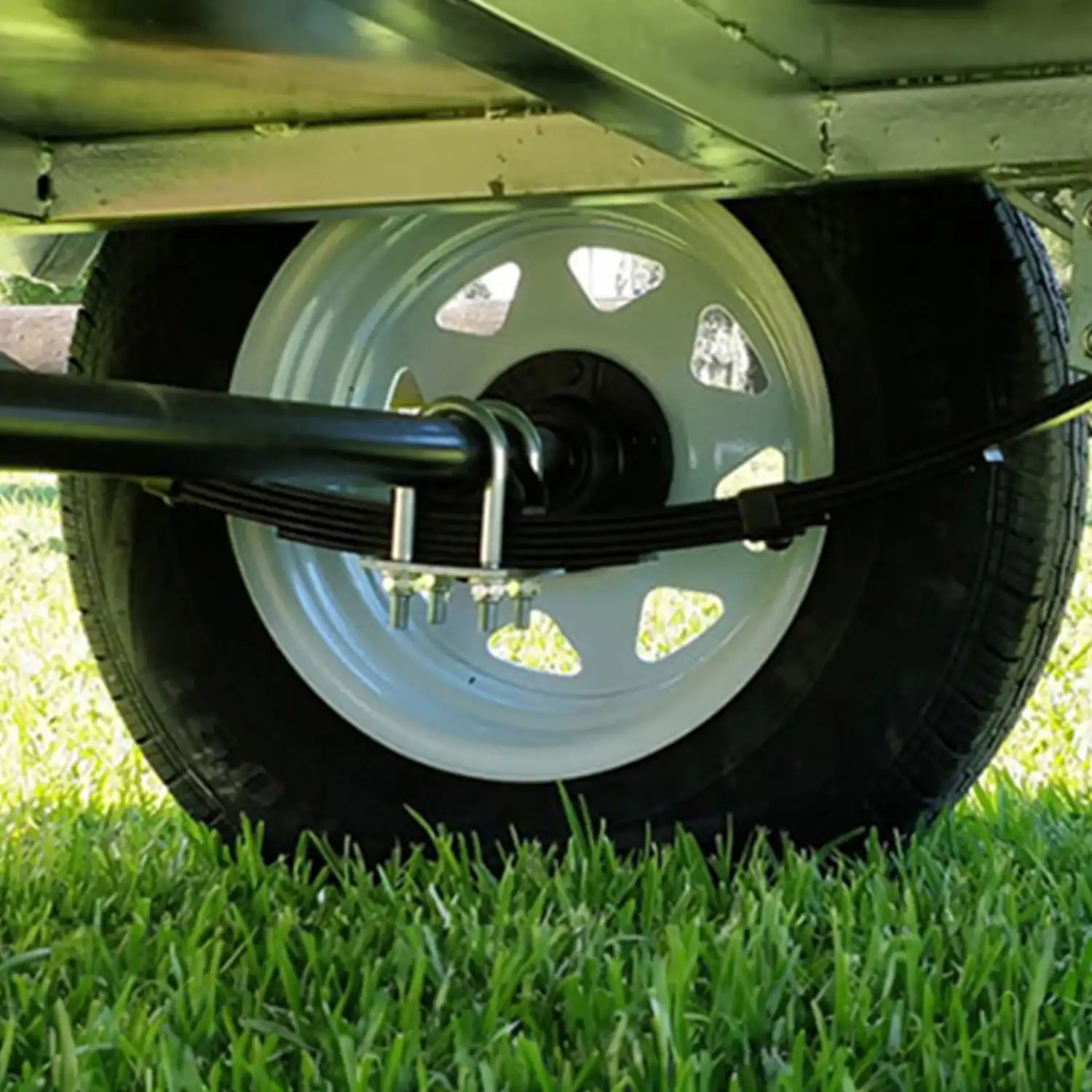

A close-up of the 6x4 Single Axle Box Trailer ATM 750KG with Jockey Wheel shows a black tire with a white rim, secured by a metal U-bolt clamp against green grass. The metal components of the trailers underside are visible in the background.

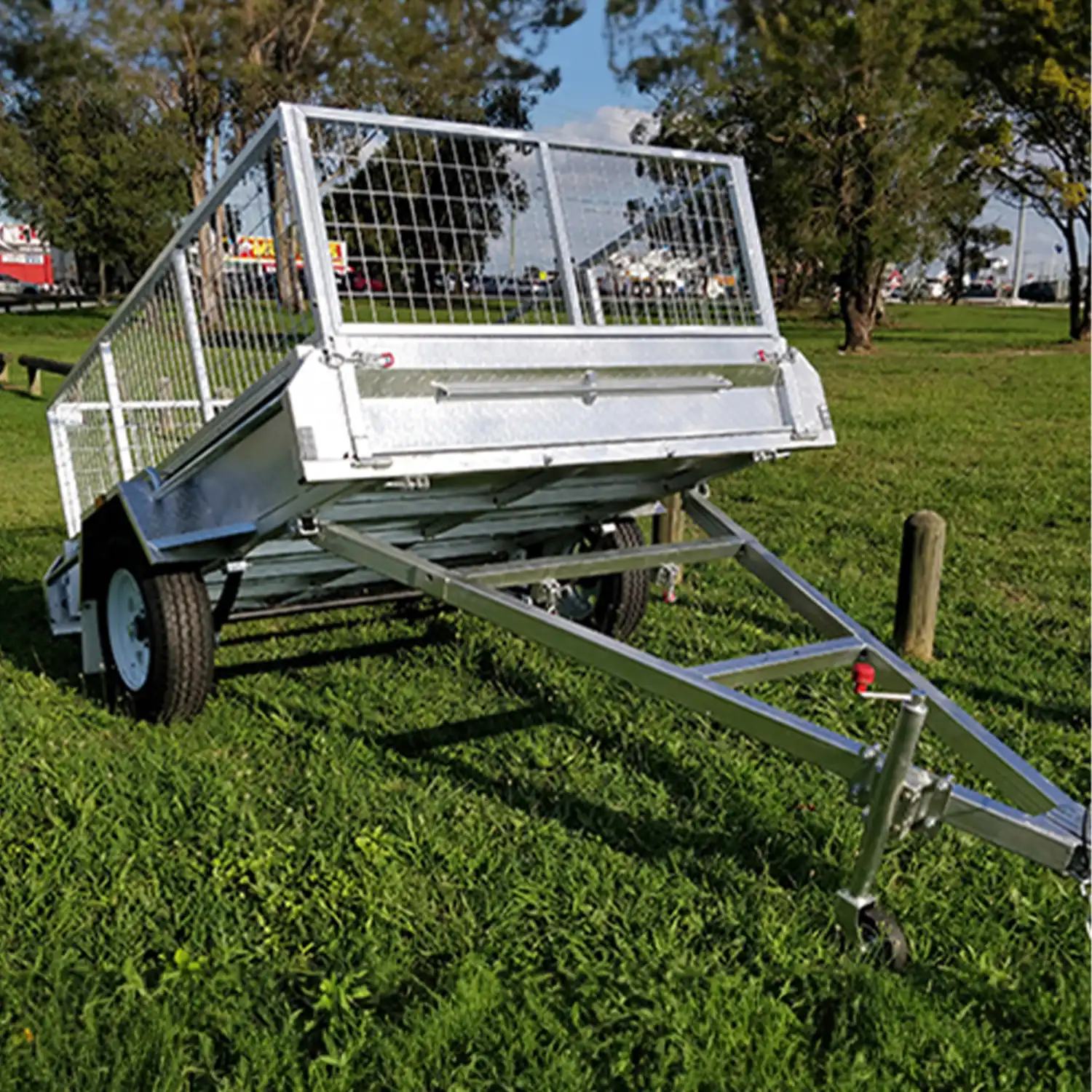

A 6x4 Single Axle Box Trailer ATM 750KG with Jockey Wheel, featuring a mesh wire enclosure, is parked on grass with its back gate open. The sky is mostly clear with some clouds, and trees are seen in the background.
A 6x4 Single Axle Box Trailer ATM 750KG with Jockey Wheel, featuring wire mesh sides, is parked on grass in a park. It has two wheels and a long tow bar with a hitch at the front. Trees and a building are in the background under partly cloudy skies.
A 6x4 Single Axle Box Trailer ATM 750KG with mesh sides is parked on grass, featuring a jockey wheel and branded Xtreme on the side and mudguard. Trees and a cloudy sky form the background.
A 6x4 Single Axle Box Trailer ATM 750KG with mesh sides and a jockey wheel is parked on grass. It has two wheels, a tow hitch in the foreground, trees, and a paved road visible in the background.

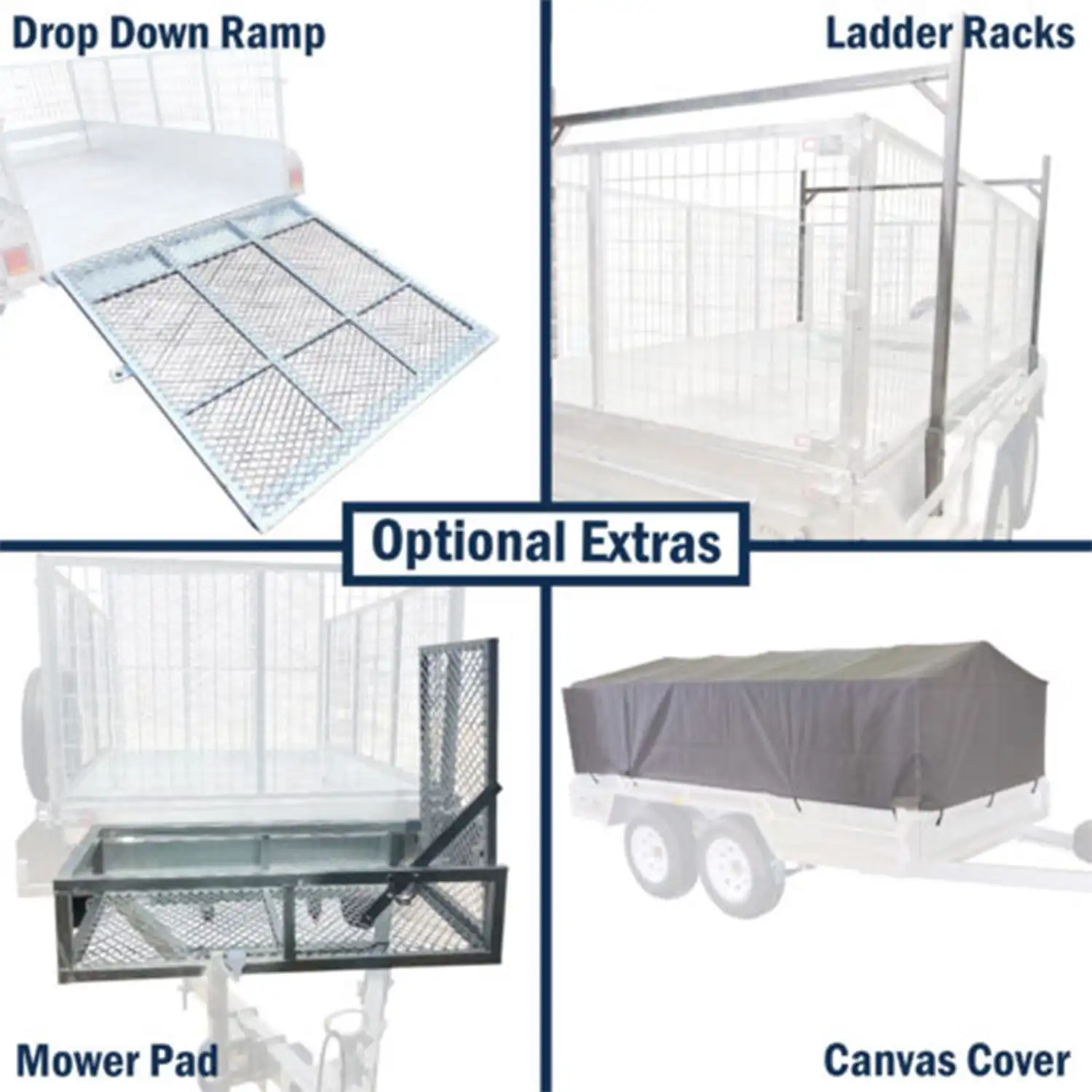

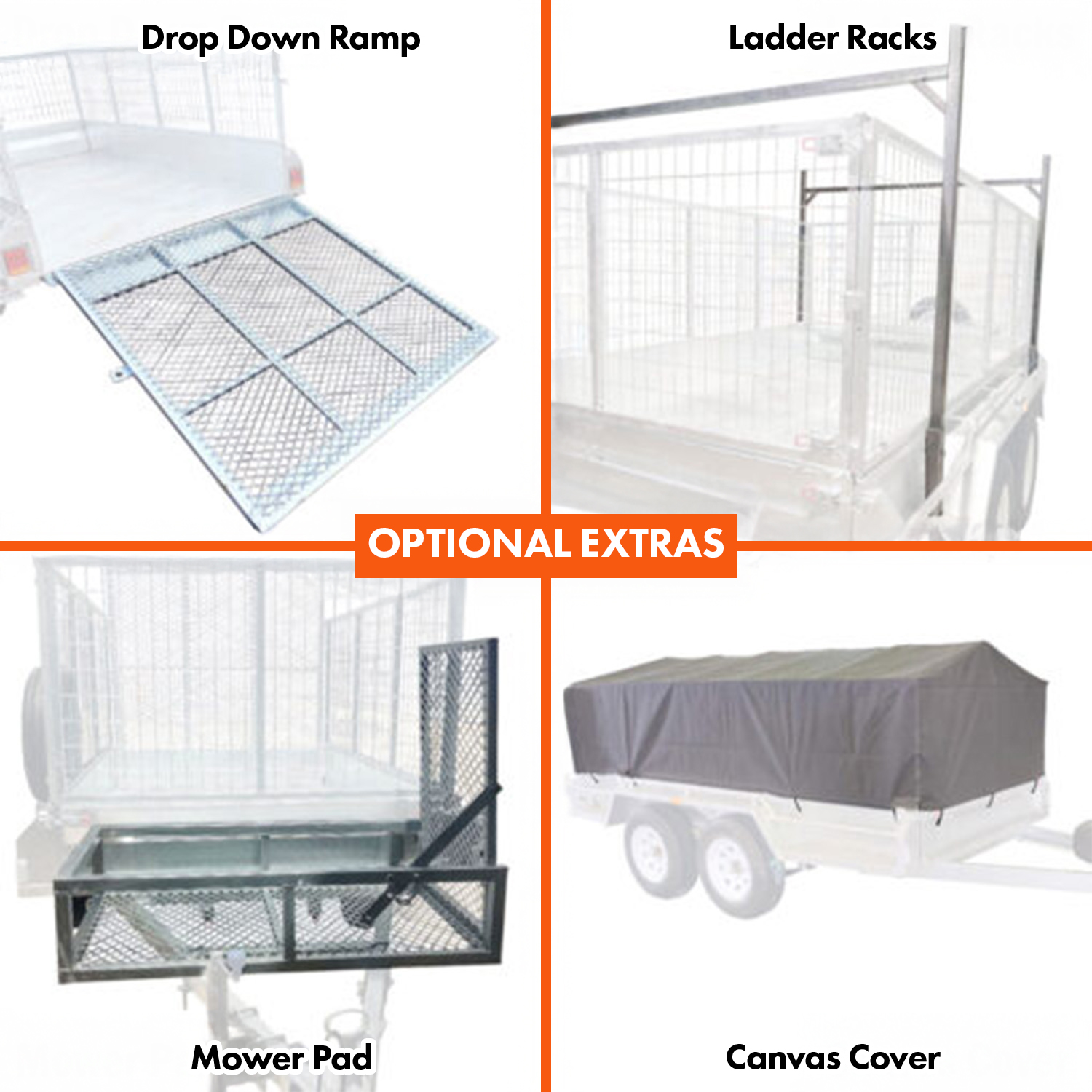

Collage displaying optional extras for a 6x4 Single Axle Box Trailer ATM 750KG With Jockey Wheel: features include a drop-down ramp, ladder racks, mower pad, and canvas cover. Each is illustrated in its own section of the image.
A 6x4 single axle box trailer with mesh sides and a hitch with a blue knob at the front. Its equipped with a safety chain and jockey wheel, empty and set against a plain white background.
The 6x4 Single Axle Box Trailer ATM 750KG features a metallic hitch with a blue handle and is mounted on a frame with a small wheel. Below, a heavy-duty chain with a red hook hangs, and it includes a coupler for towing connections.
This 6x4 Single Axle Box Trailer, featuring high mesh sides and a triangular hitch with a blue connector, comes equipped with two wheels and a jockey wheel. The trailer is presented against a white background.
A durable metal 6x4 single axle box trailer with wire mesh sides, silver finish, white wheels, and mudguards. The brand XTREME is displayed on the side and mudguard. It supports ATM 750KG and features a jockey wheel.
The 6x4 Single Axle Box Trailer ATM 750KG with a jockey wheel features mesh sides, a single axle with white wheels, a tailgate, reflective lights, and branding on the mudguard and tailgate for transporting goods.
A 6x4 Single Axle Box Trailer with a silver finish, cage, two wheels, and a jockey wheel is parked on green grass. A tow bar extends toward the viewer, with trees and a cloudy blue sky in the background.
A close-up of the 6x4 Single Axle Box Trailer ATM 750KG with Jockey Wheel shows a black tire with a white rim, secured by a metal U-bolt clamp against green grass. The metal components of the trailers underside are visible in the background.
A 6x4 Single Axle Box Trailer ATM 750KG with Jockey Wheel, featuring a mesh wire enclosure, is parked on grass with its back gate open. The sky is mostly clear with some clouds, and trees are seen in the background.
A 6x4 Single Axle Box Trailer ATM 750KG with Jockey Wheel, featuring wire mesh sides, is parked on grass in a park. It has two wheels and a long tow bar with a hitch at the front. Trees and a building are in the background under partly cloudy skies.
A 6x4 Single Axle Box Trailer ATM 750KG with mesh sides is parked on grass, featuring a jockey wheel and branded Xtreme on the side and mudguard. Trees and a cloudy sky form the background.
A 6x4 Single Axle Box Trailer ATM 750KG with mesh sides and a jockey wheel is parked on grass. It has two wheels, a tow hitch in the foreground, trees, and a paved road visible in the background.
Collage displaying optional extras for a 6x4 Single Axle Box Trailer ATM 750KG With Jockey Wheel: features include a drop-down ramp, ladder racks, mower pad, and canvas cover. Each is illustrated in its own section of the image.

Displayed product images are for illustrative purposes only and may not precisely represent the product. Xtreme Trailers reserves the right to alter product specifications without notice. Some pictures may include optional features. All website images are copyright protected.

Categories: Box Trailers, Single Axle ATM 750kg

6×4 Single Axle Box Trailer ATM 750KG With Jockey Wheel

SKU-SABTS64XT ATM-750KG
$1,689.00

Don't Pay $2,199.00

Save $510.00

Finance Options Available
6x4 Single Axle Box Trailer ATM 750KG With Jockey Wheel*
$1,689.00
Cage*
Clear
$250.00
Ramp*
Clear
$300.00
Ladder racks*
Clear
$250.00
Aluminum Toolbox*
Clear
$0.00
Canvas Cover*
Clear
$450.00
Spare wheel*
Clear
$130.00
Spare wheel bracket*
Clear
$50.00
Mower Pad*
Clear
$380.00
Plug*
Clear
$0.00
Blue Slip*
Clear
$0.00

Deposit : $366.90 Per item

Delivery Options

71 Long St, Smithfield
NSW 2164
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate Shipping Cost

Get Finance

×

    6×4 Single Axle Box Trailer ATM 750KG With Jockey Wheel$1,689

    Enquiry Now

    ×

    Complete this enquire form to obtain additional information about our services or send personal complaint.

      6×4 Single Axle Box Trailer ATM 750KG With Jockey Wheel$1,689

      Description

      6×4 Cage for Trailer – Strength, Versatility, and Australian Reliability

      When strength meets smart design, you get Xtreme Trailers’ 6×4 cage for trailers,  the compact yet heavy-duty choice for everyday use. Proudly designed in Sydney and delivered Australia-wide, this single-axle box trailer offers the perfect balance of size, durability, and practicality for tradies, homeowners, and outdoor enthusiasts.

      Built from the ground up to exceed Australian Design Rules (ADRs) and RVSA certification, this trailer ensures peace of mind every time you tow. Whether you’re hauling tools, garden waste, building materials, or bulky equipment, it’s built to handle it all.

      Built Tough for Australian Conditions

      Constructed using hot-dipped galvanised steel, the 6×4 cage trailer resists rust, corrosion, and wear making it  perfect for coastal, rural, or urban use. The fully welded chassis and body provide exceptional structural integrity, while a checker plate floor delivers added strength under heavy loads.

      Every trailer undergoes rigorous inspection to meet ADR and RVSA standards, guaranteeing safe, compliant towing across Australia.

      Key Features

      • ATM: 750kg capacity – perfect for light commercial and home use
      • Tare: 275kg (excluding cage), leaving 475kg payload capacity
      • Hot-dipped galvanised steel construction for long-term corrosion resistance
      • Fully-welded chassis and sides (300mm high) for added strength
      • Checker plate flooring for durability and anti-slip performance
      • Upgraded 45mm 7-leaf eye-to-eye springs for smoother, more stable towing
      • Removable front and rear drop-down gates for easy loading and unloading
      • Tie-down rails and step-up side platforms for convenience and safety
      • Cage-ready design compatible with optional 600mm or 900mm cages
      • Single axle, 40mm solid round axle with 14″ (35.6cm) wheels (185/14 tyres)
      • 6″ (15.2cm) swing-up jockey wheel, LED tail lights, and 7-pin plug included

      Smart, Cage-Ready Design

      The 6×4 cage for the trailer is built to adapt. Add a 600mm or 900mm cage to keep loose or tall items secure, which is perfect for garden waste, camping gear, tools, and general transport. The removable gates and welded ladder-rack holders make it easy to load, unload, and customise for any job.

      For even greater flexibility, explore the full single-axle range including 6×4, 7×4, 7×5, and 8×5 models, or step up to our Premium Heavy Duty and Tandem Box Trailers with load ratings up to 3,200kg ATM.

      Customisation and Optional Extras

      Enhance your 6×4 cage trailer with quality accessories engineered for performance:

      • Spare wheel with holder
      • Removable 600mm or 900mm cage
      • Heavy-duty mesh ramp door
      • Canvas cover for cage
      • Ladder racks
      • Tool box and mower pad

      All accessories are galvanised and built to integrate perfectly with your trailer, ensuring functionality without compromise.

      Backed by Warranty and Expert Support

      Every Xtreme Trailer is locally engineered and tested for long-term performance in real-world conditions. We back our craftsmanship with a 5-year structural warranty and 1-year warranty on parts, including leaf springs, lights, wiring, and jockey wheel.

      Our team is here to help with service, advice, and nationwide delivery options, so you can buy with total confidence.

      Order Your 6×4 Cage for Your Trailer Today

      Get unbeatable strength, proven reliability, and the peace of mind that comes with Australian design and manufacturing.
      Call 02 7908 5573 or 1300 637 514 or buy online today, with options for pickup from Smithfield, NSW or fast delivery across Australia.

      Frequently asked questions

      A 6x4 cage trailer is ideal for transporting garden waste, building materials, tools, or general household loads. The added cage helps secure tall or loose items safely during travel.
      Yes. With its galvanised steel construction, upgraded springs, and ADR-compliant build, this trailer tows smoothly and reliably on highways and rougher country roads alike.
      Absolutely. The cage is fully removable, allowing you to convert the trailer into a standard box trailer for lighter or flat loads.
      Yes, all Xtreme Trailers come with compliance plates and paperwork to make registration simple. Blue slip and weighbridge tickets can be provided where required.
      Yes. We offer Australia-wide delivery including Melbourne, Brisbane, Adelaide, Perth, Canberra, and many regional cities. Pickup is also available from our Smithfield, NSW showroom.

      Optional Extras

      • Spare Wheel
      • Mounting Spare Wheel Holder
      • Removable 600mm/ 900mm Cage
      • Heavy Duty Mesh Ramp Door
      • Canvas Cover For 600mm Or 900mm Cage
      • Ladder Racks For 600mm Or 900mm Cage
      • Tool Box
      • Mower Pad

      Dimension

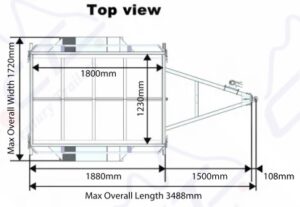

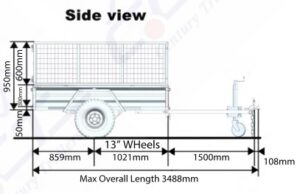

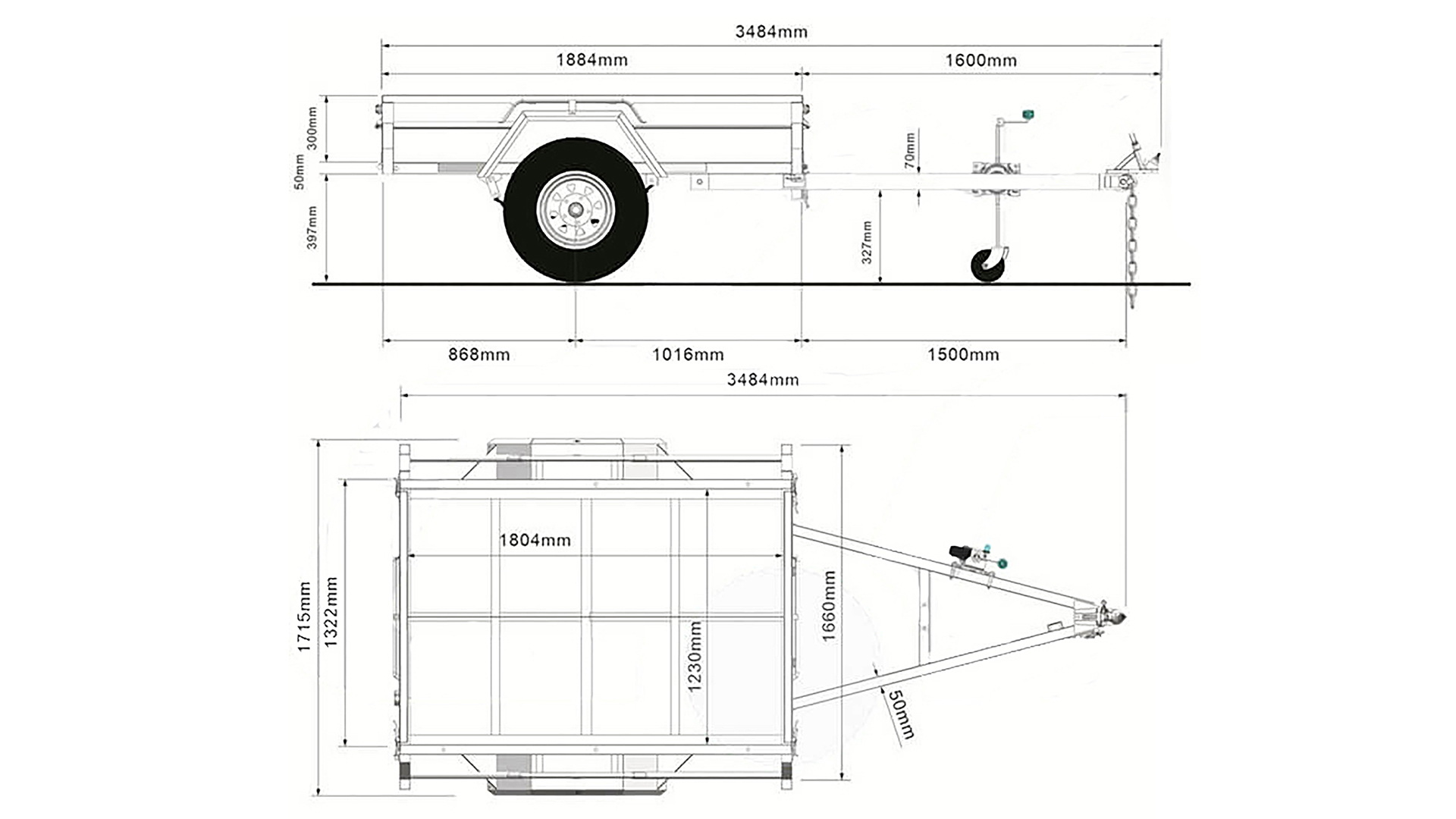

      Technical drawing of a trailer with dimensions labeled in millimeters, showing side and top views. Key measurements include overall lengths, widths, heights, and specific distances between parts.

      Warranty

      The company guarantees all its distributed goods against defective parts or workmanship with the following warranty provisions:

      • 5-Year Structural Warranty on all Brand-New Trailers: This warranty excludes coverage for surface rust, mistreatment, damage, or misuse.
      • 1-Year Warranty on Leaf Springs, Lights, Wiring, Jockey Wheel, and All Other Parts.
      • Warranty Exclusion for Second-hand or Used Trailers or Goods.

      Specifications

      • ATM : 750KG
      • Tare : 275KG (Exclude cage)
      • Capacity : 475KG
      • Internal Trailer Size : 1800mm x 1230mm x 300mm
      • Side : 300mm High, Fully Welded
      • Drawbar : 1600mm, 70mmx50mm RHS
      • Hot Dipped Galvanised
      • Fully Welded Body & Chassis
      • Removable Front and Rear Drop Down Gates
      • Welded Ladder Racks Holders
      • 4 Locking Points On Drawbar
      • Flooring : Checker Plate Floor
      • Tie Down Rails All Around
      • Support : Better Structure Support, 50mm×50mm SHS Support Beams From Left To Right, 40mm×40mm SHS Support Beams From Front To Back
      • Step-up Platforms On Both Sides
      • Axle : Single Axle, 40mm Round Solid Axle
      • Brake : None
      • Springs(upgraded) : 45mm 7 Leaf Eye To Eye springs
      • Wheel Size : 14″
      • Tyre Size : 185/14
      • Coupling : 50mm 2000kg
      • Jockey Wheel : 6″ Swing up
      • Light : Tail Light, LED
      • Plug : 7 Pin, Flat/ Small Round/ Big Round
