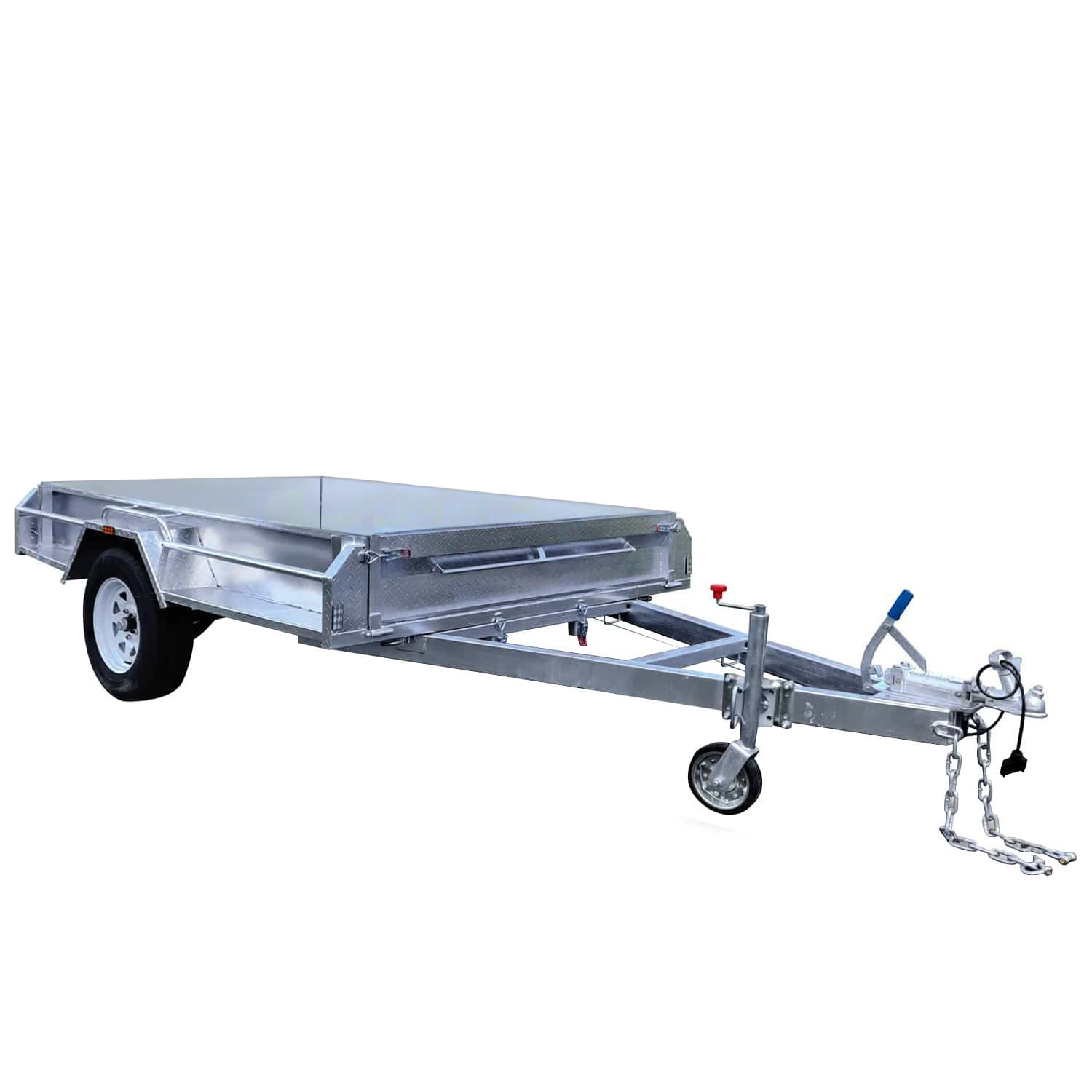

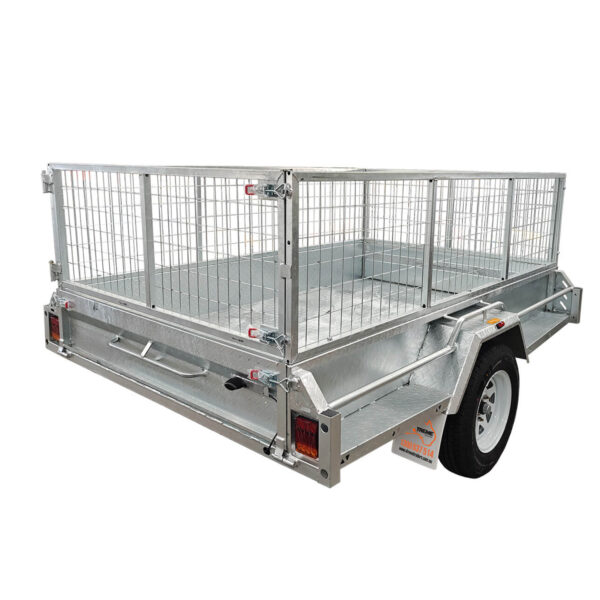

7×5 Single Axle Box Trailer ATM 1400KG With Jockey Wheel


Don't Pay $2,649.00

Save $350.00

Please select the cage, spare wheel, and other options separately as they are sold individually subject to availability.

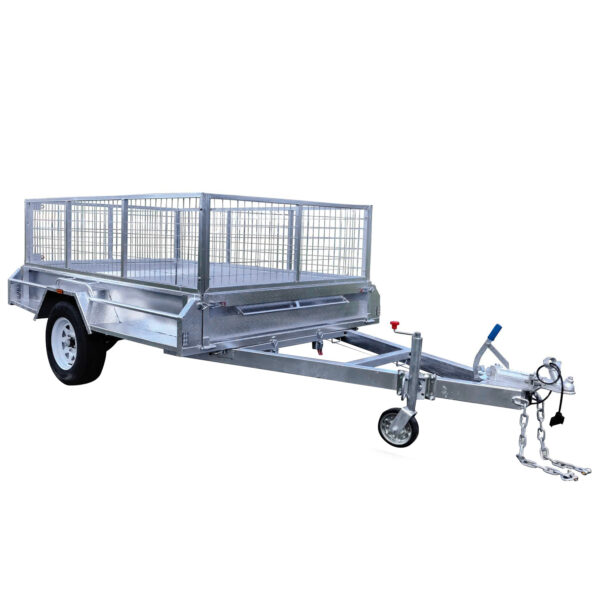

7×5 Single Axle Box Trailer ATM 1400KG With Jockey Wheel*

2 in stock

Ladder Racks*
Aluminum Toolbox*
Canvas Cover*
Spare wheel*
Spare wheel bracket*
Mower Pad

Out of stock


Out of stock

Calculate Shipping Cost

Get Finance


    7×5 Single Axle Box Trailer ATM 1400KG With Jockey Wheel$2,299

    Enquiry Now


    Complete this enquire form to obtain additional information about our services or send personal complaint.

      7×5 Single Axle Box Trailer ATM 1400KG With Jockey Wheel$2,299

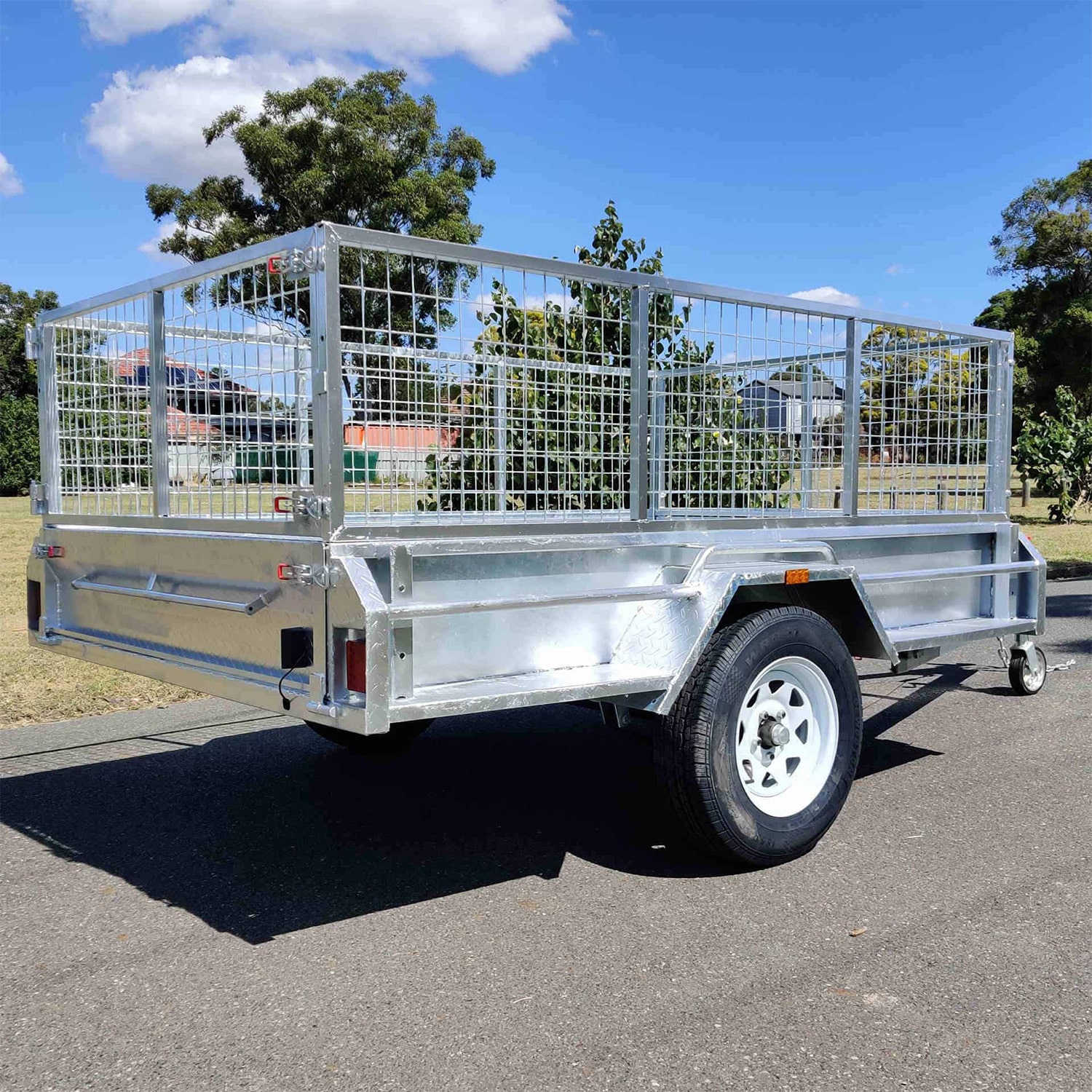

      Looking for a reliable 7×5 single axle box trailer for sale in Sydney? Xtreme Trailers has the perfect solution for your heavy-duty hauling needs with our 7×5 Premium Single Axle Heavy-Duty Box Trailer, boasting an ATM of 1400KG.

      Key Features:

      • Robust Construction: The trailer is meticulously crafted with a hot-dipped galvanized fully welded body and chassis, ensuring durability for heavy-duty tasks.
      • Optimal Load-Bearing Capacity: Engineered with enhanced 45mm 9-leaf Eye To Eye springs, this trailer is designed to handle substantial loads with ease.
      • Versatile Sizes: Choose from a range of sizes including 7×4, 7×5, 8×5, 8×6, and 9×5, allowing you to select the perfect fit for your specific requirements.
      • Variety of Series: Xtreme Trailers offers versatility with various series, including the ATM750KG ideal for lightweight applications, Heavy Duty series with ATM750KG/1400KG for flexible transport, and the Tandem series with ATM 2000KG/3200KG/3500KG designed for heavy lifting.
      • Extensive Product Range: Our product range extends beyond box trailers, encompassing Tandem trailers, Boat & Jet-ski trailers, Hydraulic tipper trailers, Flat-Top trailers, Cattle/Livestock crate trailers, Car trailers, Tradesman trailers, Plant Trailers, ATV Trailer, and accessories.
      • Nationwide Delivery: Xtreme Trailers caters to customers across Australia, including Sydney, Melbourne, Brisbane, Adelaide, Perth, Canberra, Newcastle, Wollongong, Port Macquarie, Coffs Harbour, Dubbo, Gold Coast, Sunshine Coast, Geelong, and Ballarat.

      Xtreme Trailers is your go-to provider for top-quality and affordable trailers. Explore our diverse range of trailers and find the perfect solution for your hauling needs. Contact us today to secure your 7×5 Premium Single Axle Heavy-Duty Box Trailer and experience the reliability and durability that Xtreme Trailers is known for.

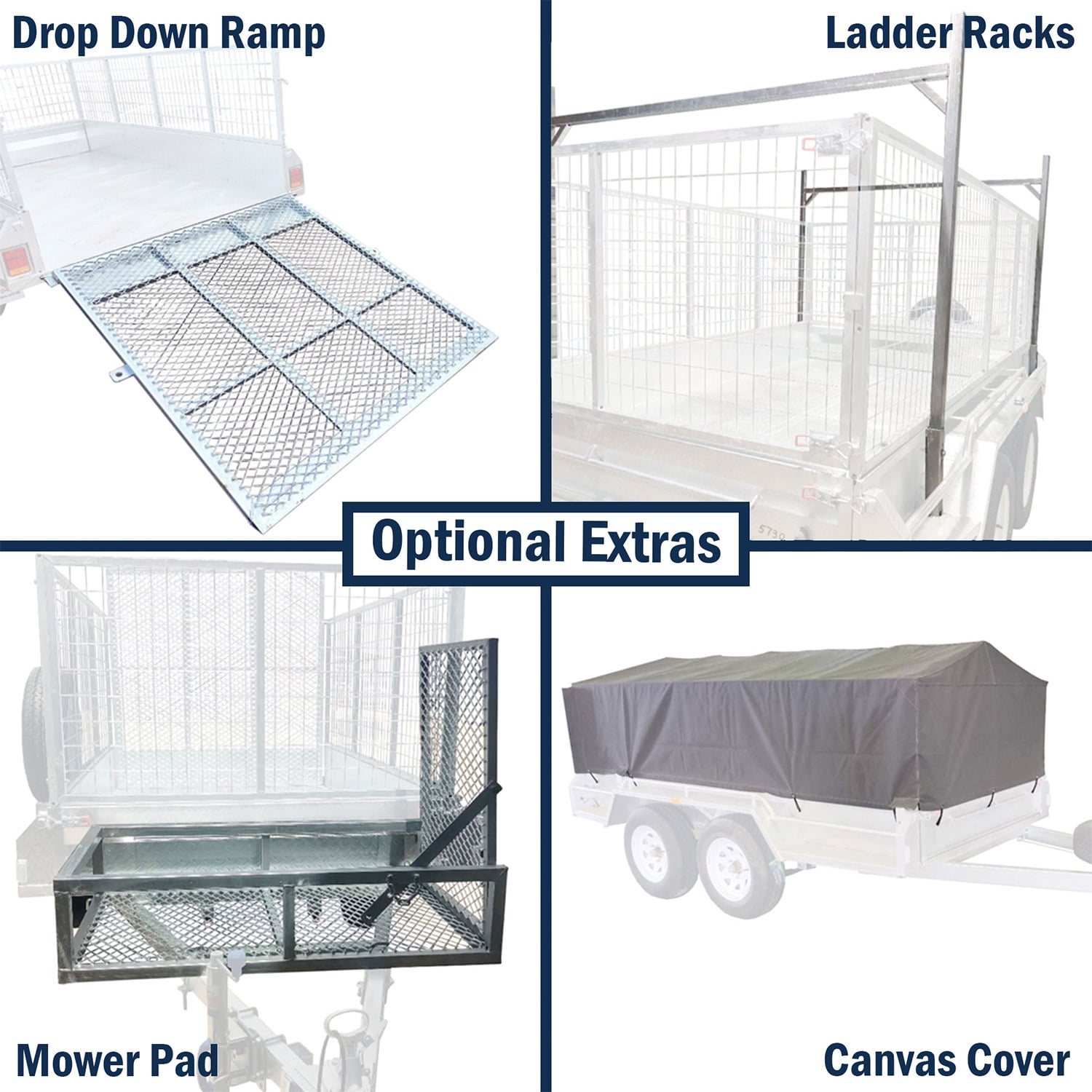

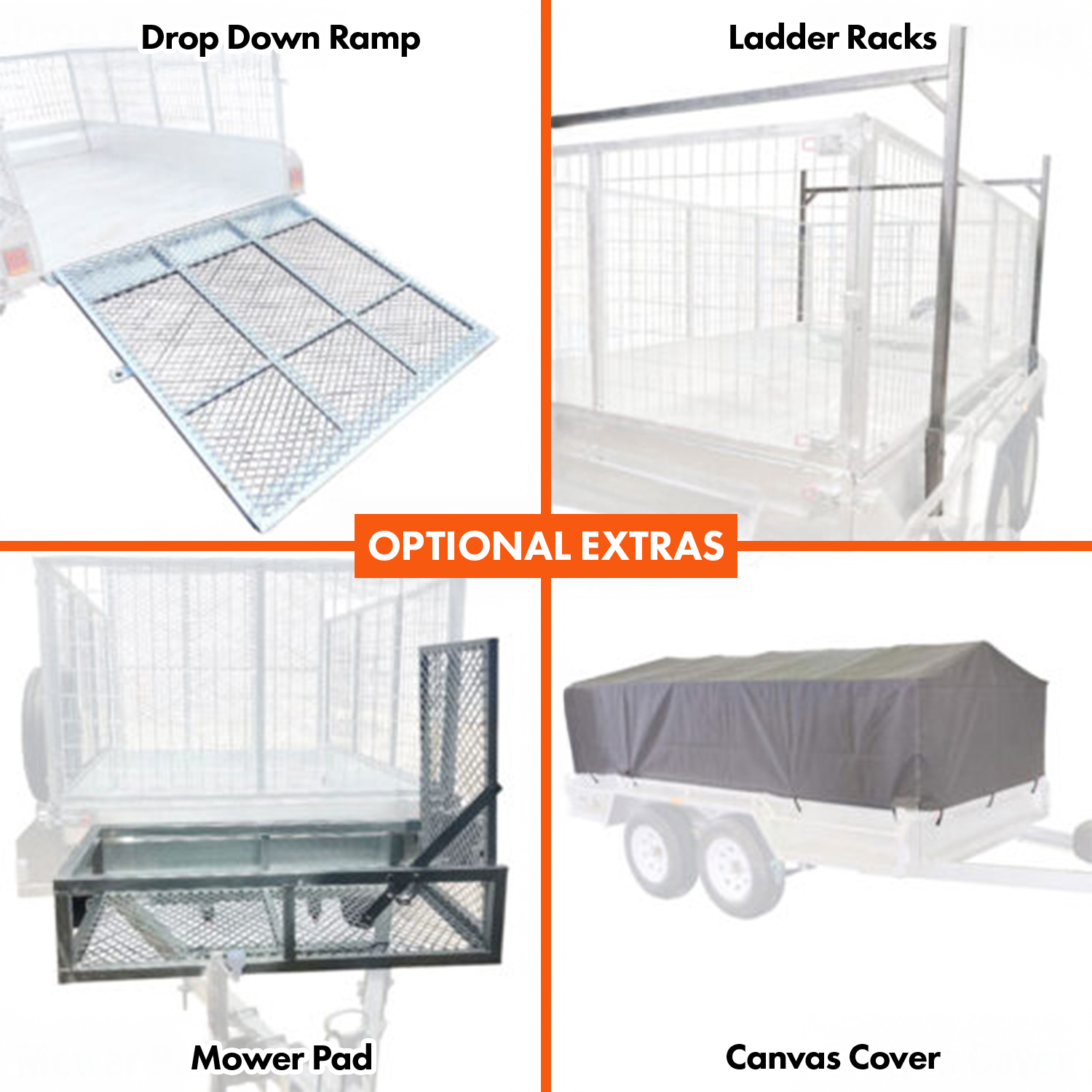

      Optional Extras

      • Spare Wheel
      • Mounting Spare Wheel Holder

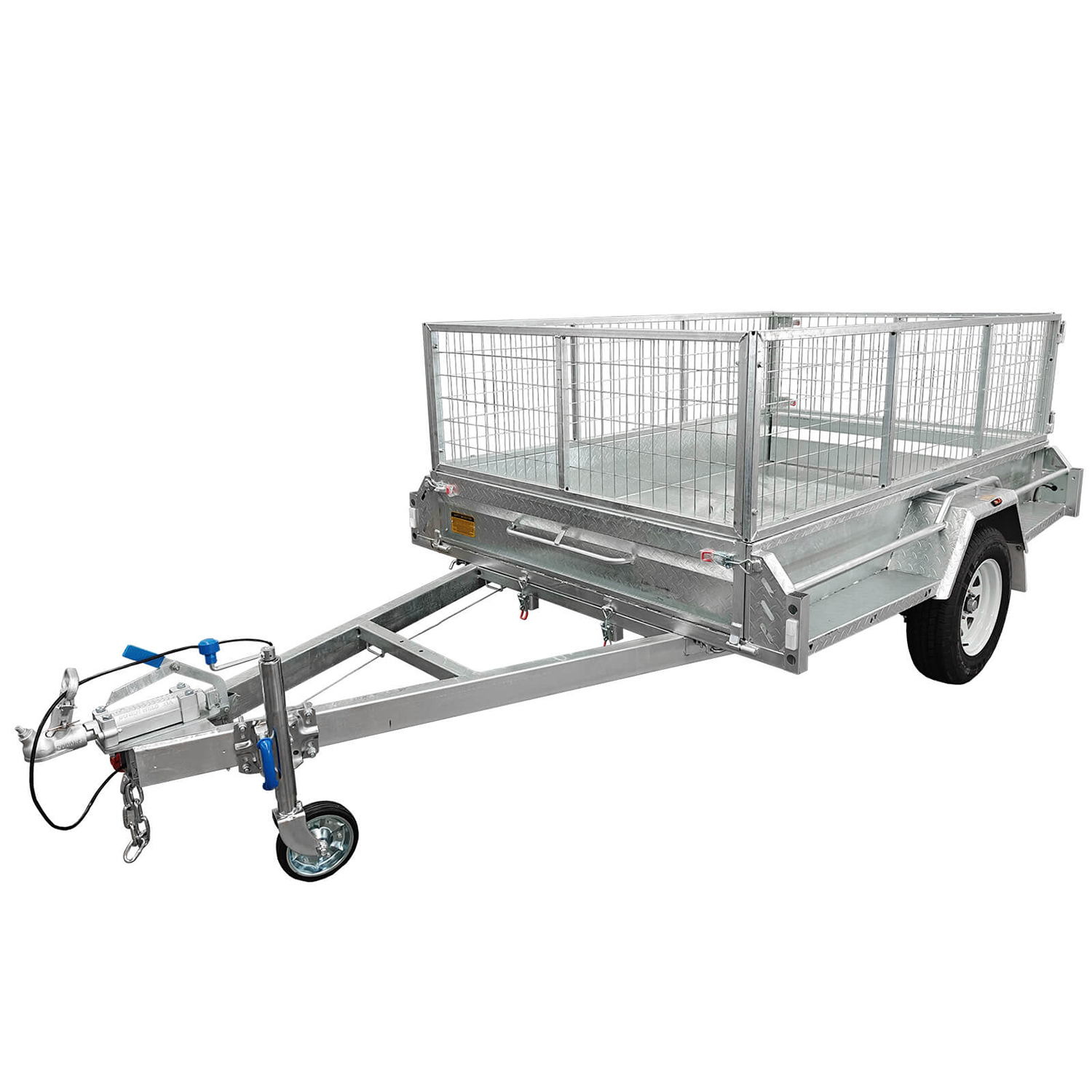

      • Removable 600mm/ 900mm Cage
      • Heavy Duty Mesh Ramp Door
      • Canvas Cover For 600mm Or 900mm Cage
      • Ladder Racks For 600mm Or 900mm Cage
      • Tool Box
      • Mower Pad


      The company guarantees all its distributed goods against defective parts or workmanship with the following warranty provisions:

      • 5-Year Structural Warranty on all Brand-New Trailers: This warranty excludes coverage for surface rust, mistreatment, damage, or misuse.
      • 1-Year Warranty on Leaf Springs, Lights, Wiring, Jockey Wheel, and All Other Parts.
      • Warranty Exclusion for Second-hand or Used Trailers or Goods.


      • Model Number : SABTHD75
      • ATM : 1400kg
      • Tare : 400kg(Exclude the weight of the cage)
      • Capacity : 1000kg

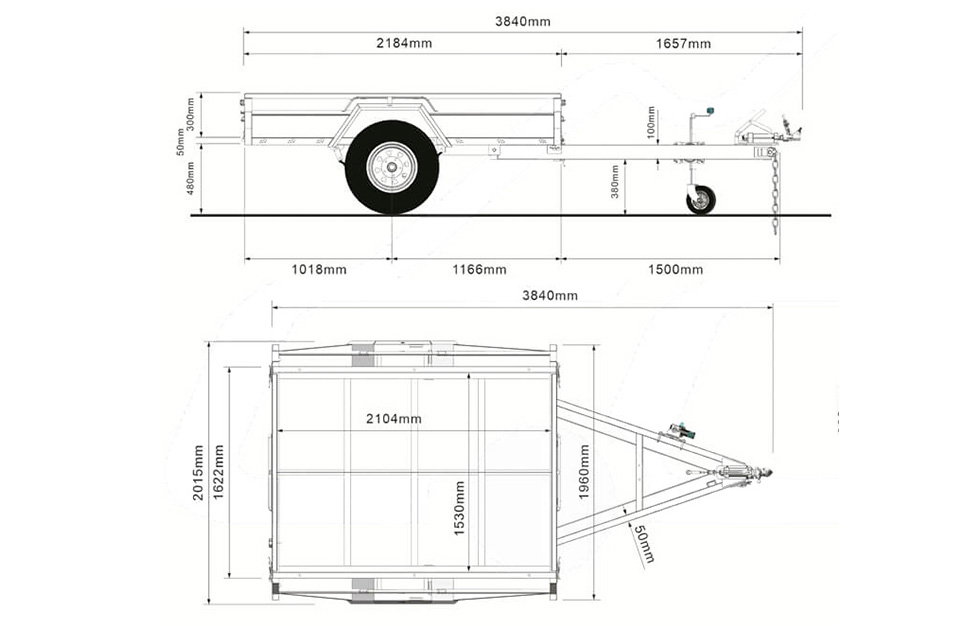

      • Internal Trailer Size : 2100mm x 1530mm x 300mm
      • Side : 300mm High, Fully Welded
      • Drawbar : 1600mm, 100mmx50mm RHS
      • Hot Dipped Galvanised
      • Fully Welded Body & Chassis

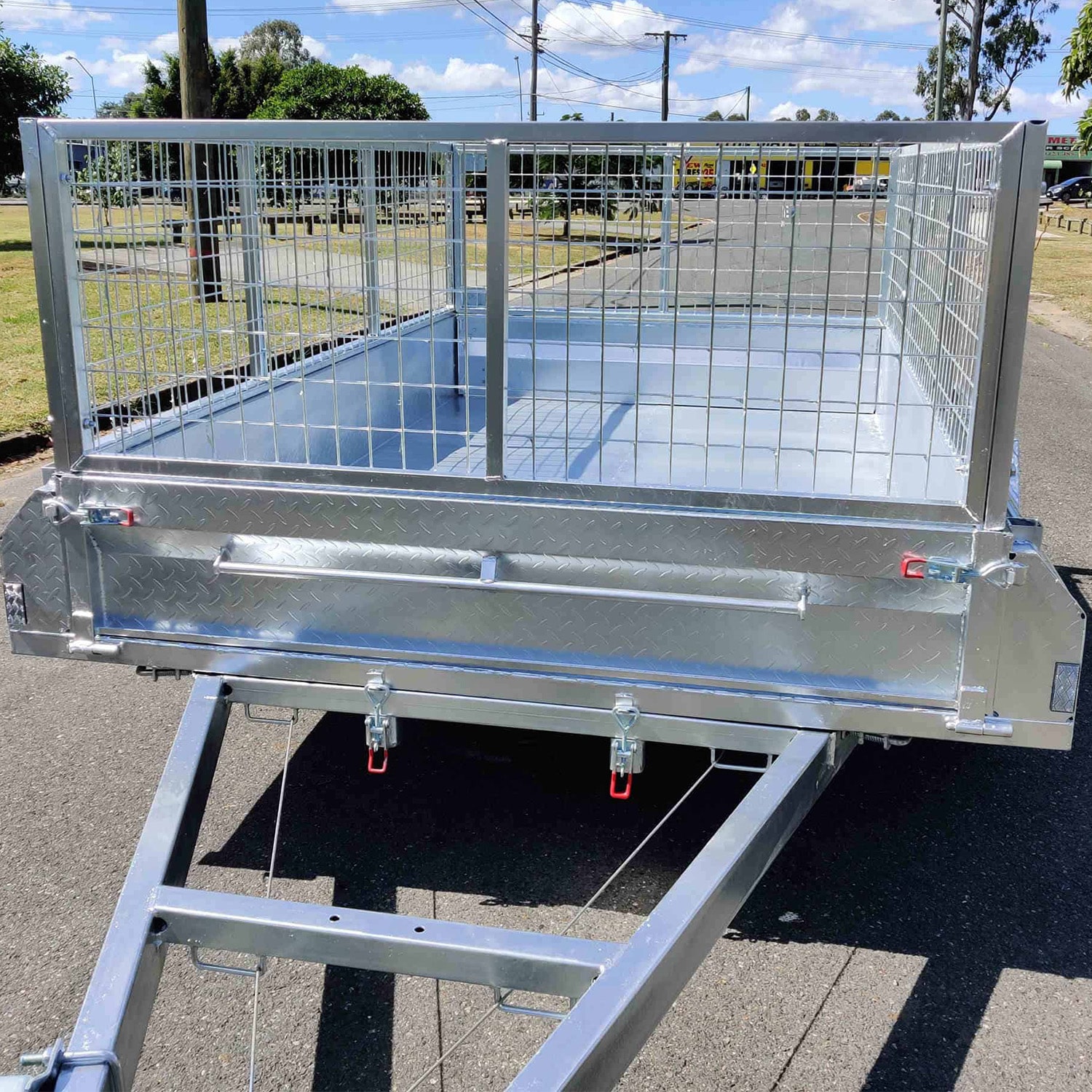

      • Removable Front and Rear Drop Down Gates
      • Welded Ladder Racks Holders
      • 6 Locking Points On Drawbar

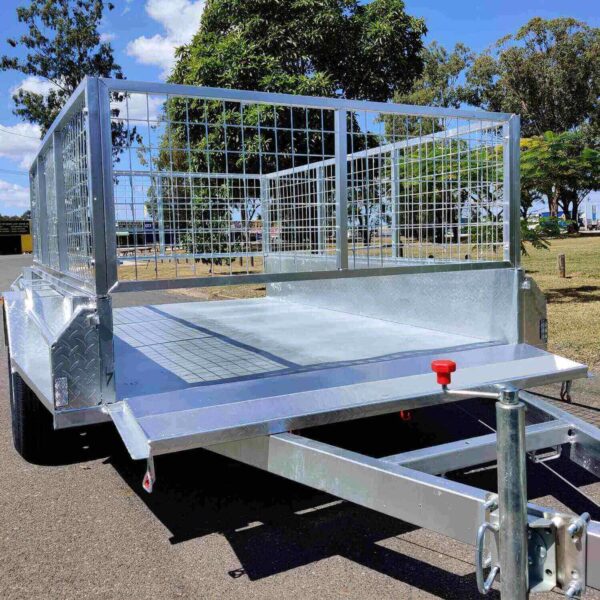

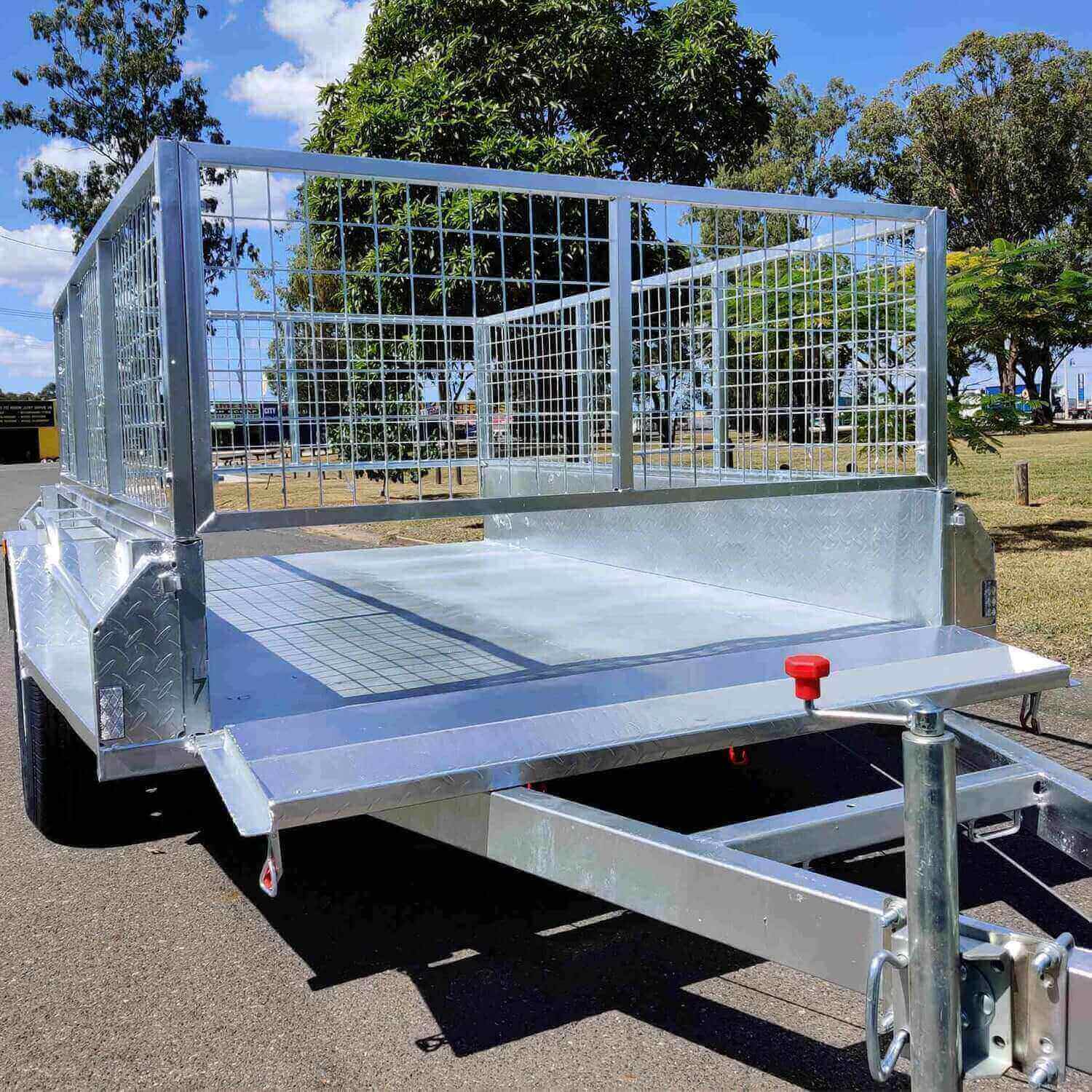

      • Flooring : Checker Plate Floor
      • Tie Down Rails All Around

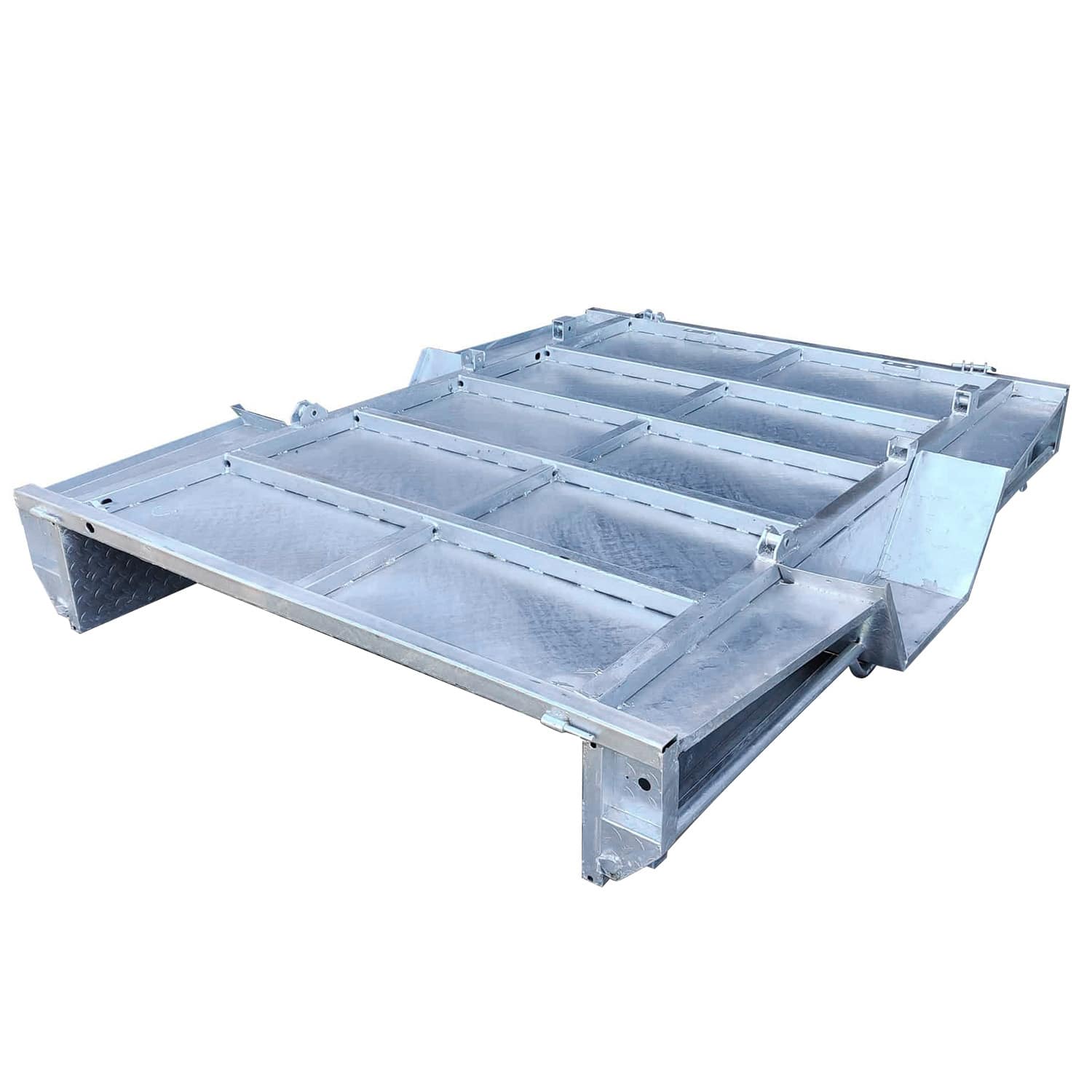

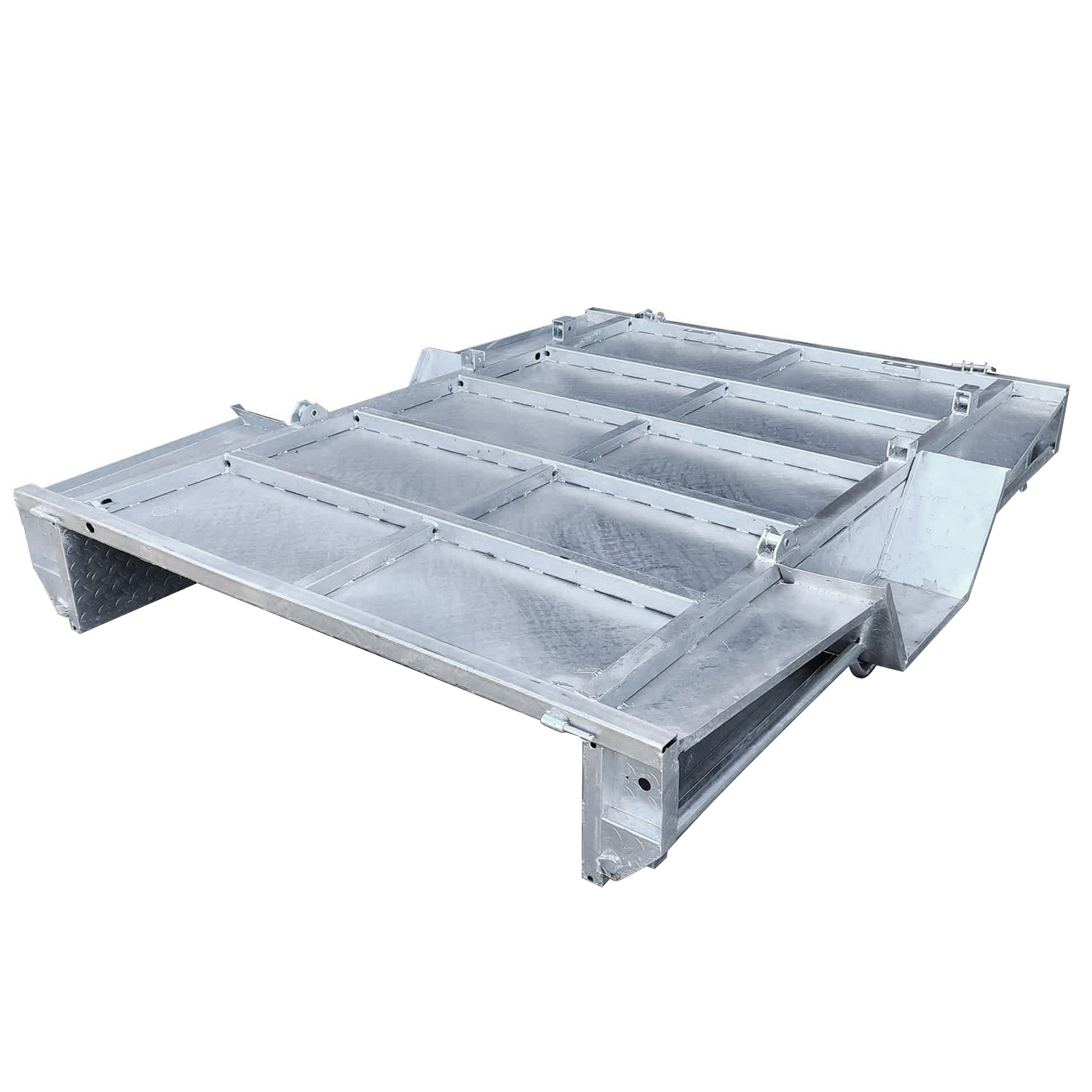

      • Support : Better Structure Support 50mm×50mm SHS Support Beams From Left To Right 40mm×40mm SHS Support Beams From Front To Back
      • Step-up Platforms On Both Sides

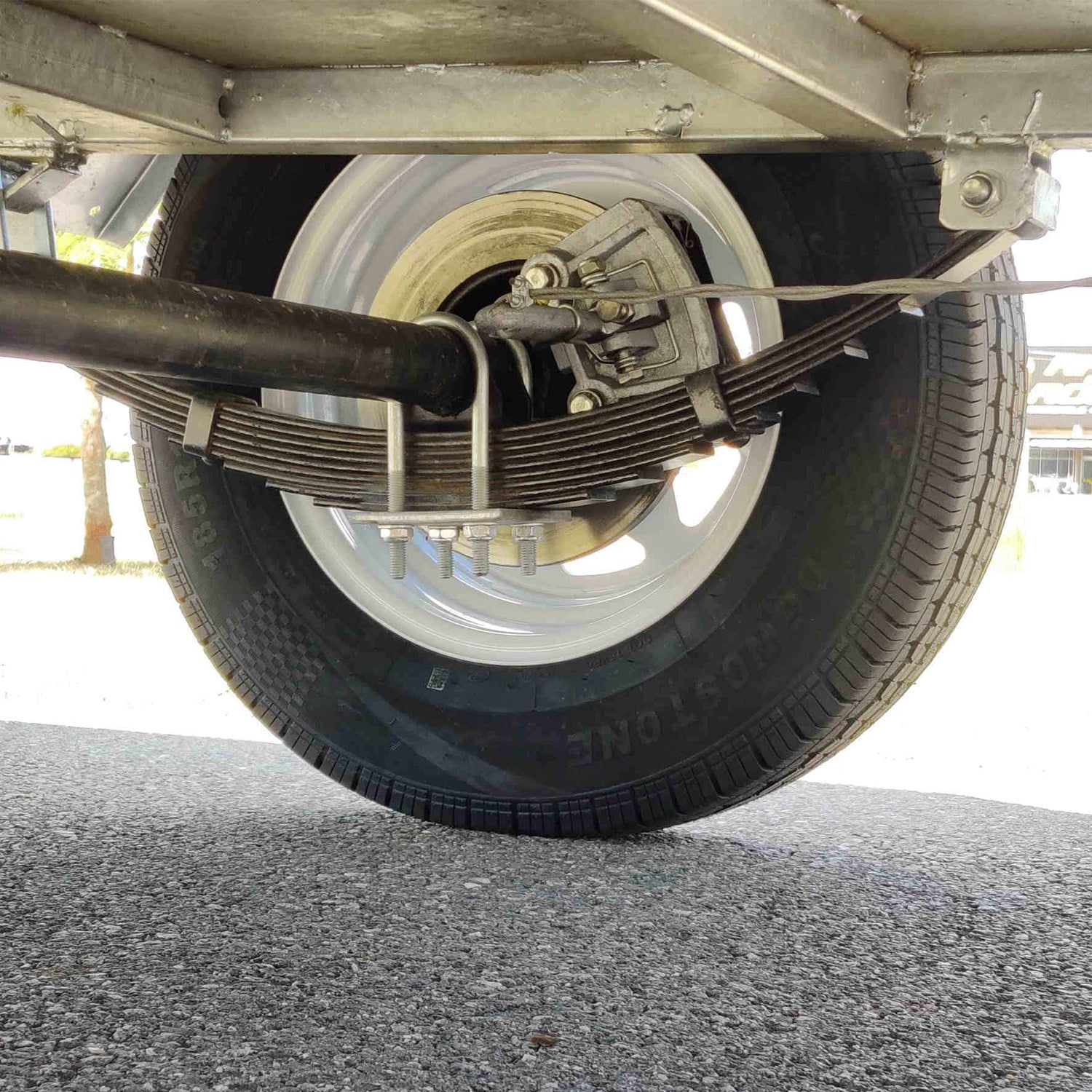

      • Axle : Single Axle, 50mm Round Solid Axle
      • Brake : Menchanic Disc
      • Springs : 45mm 9 Leaf Eye To Eye
      • Wheel Size : 14″
      • Tyre Size : 185/14

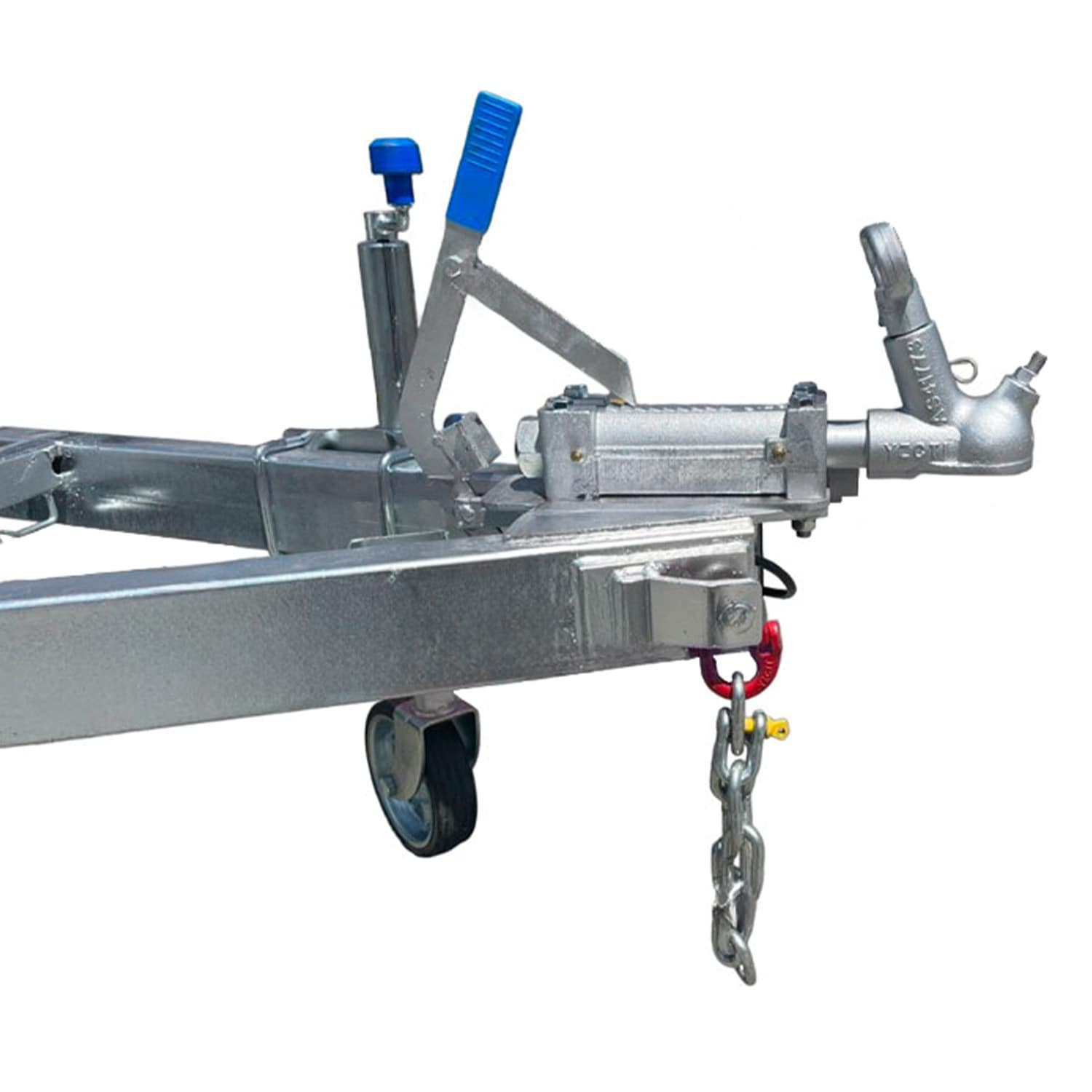

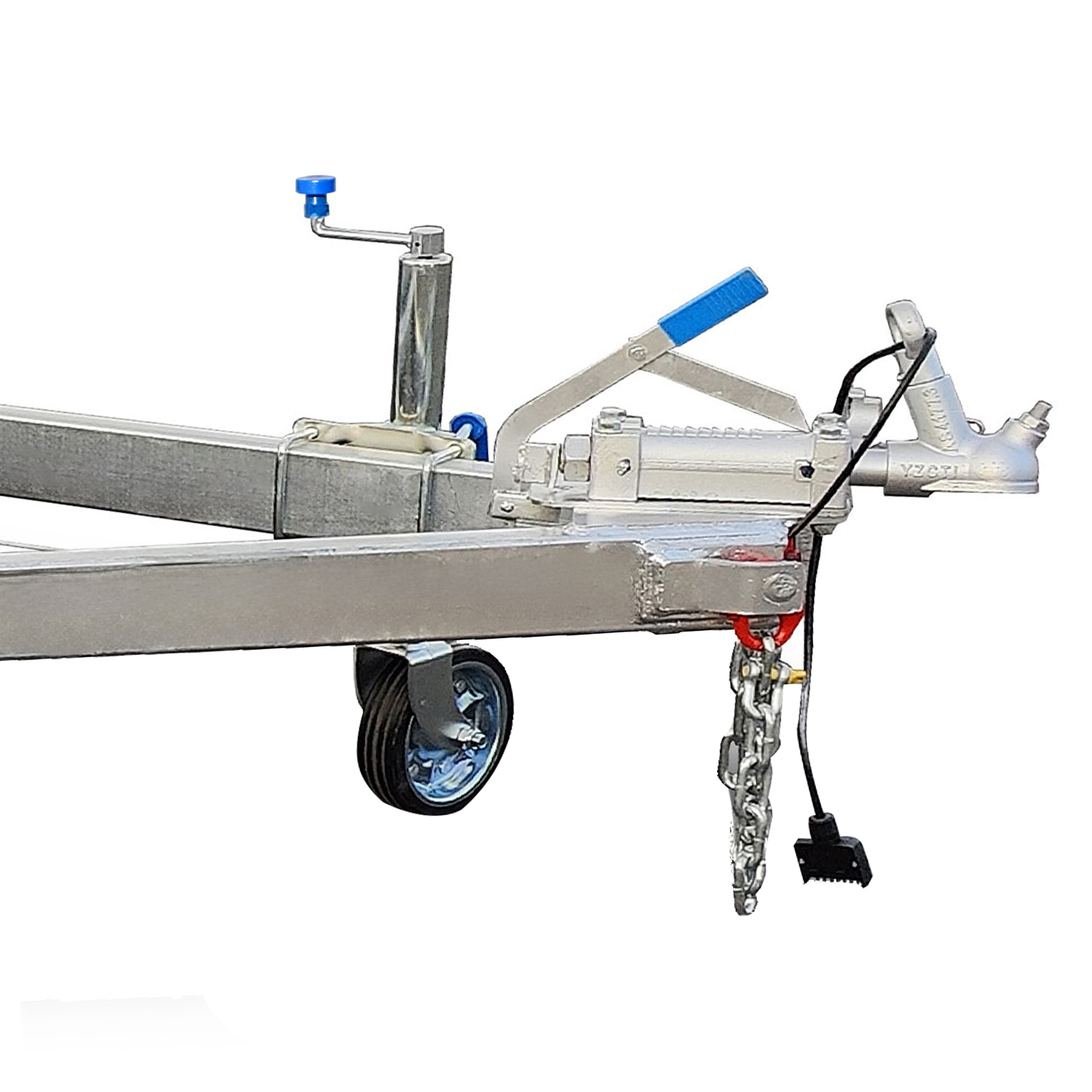

      • Coupling : 50mm 2000kg Over-ride

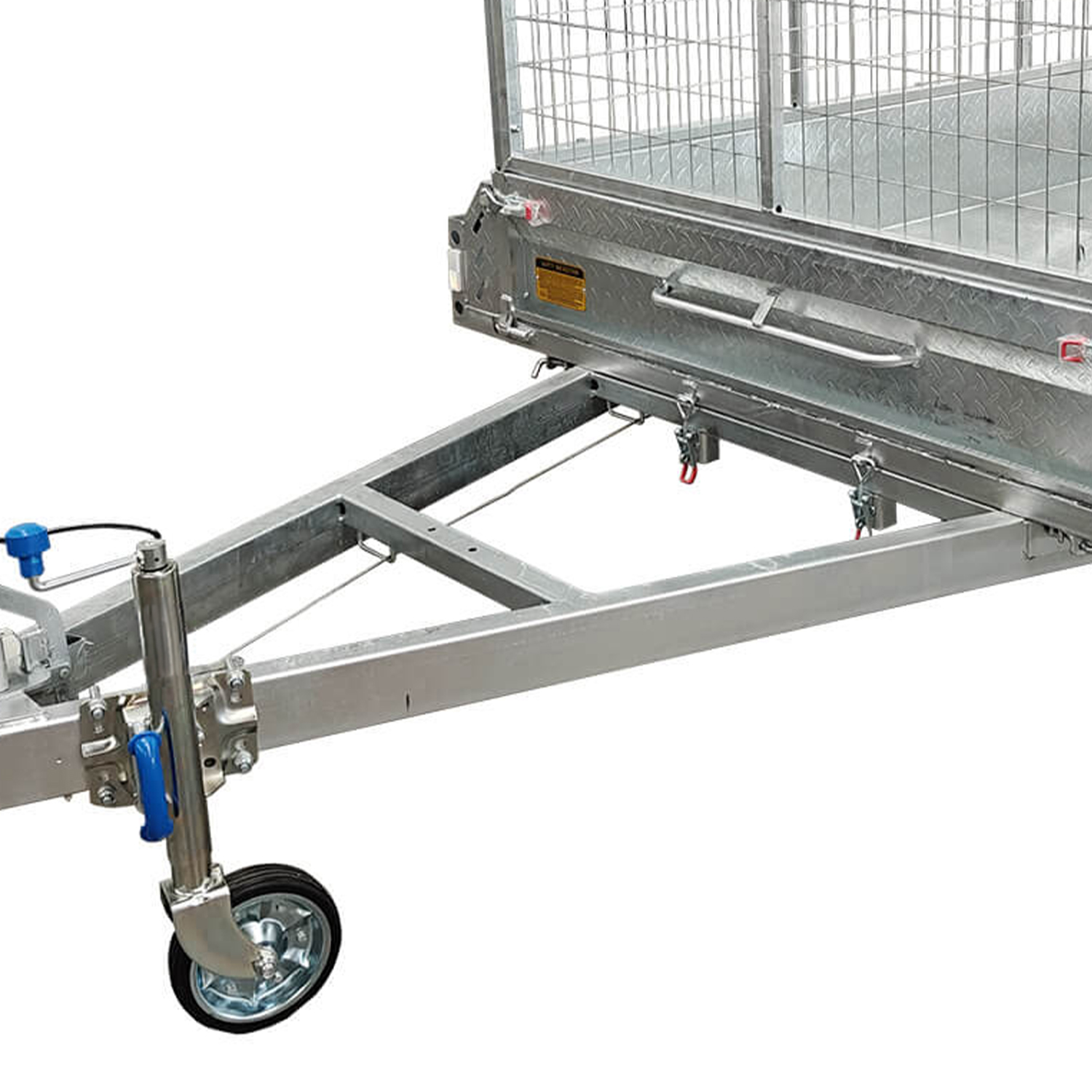

      • Jockey Wheel : 8” Swing up

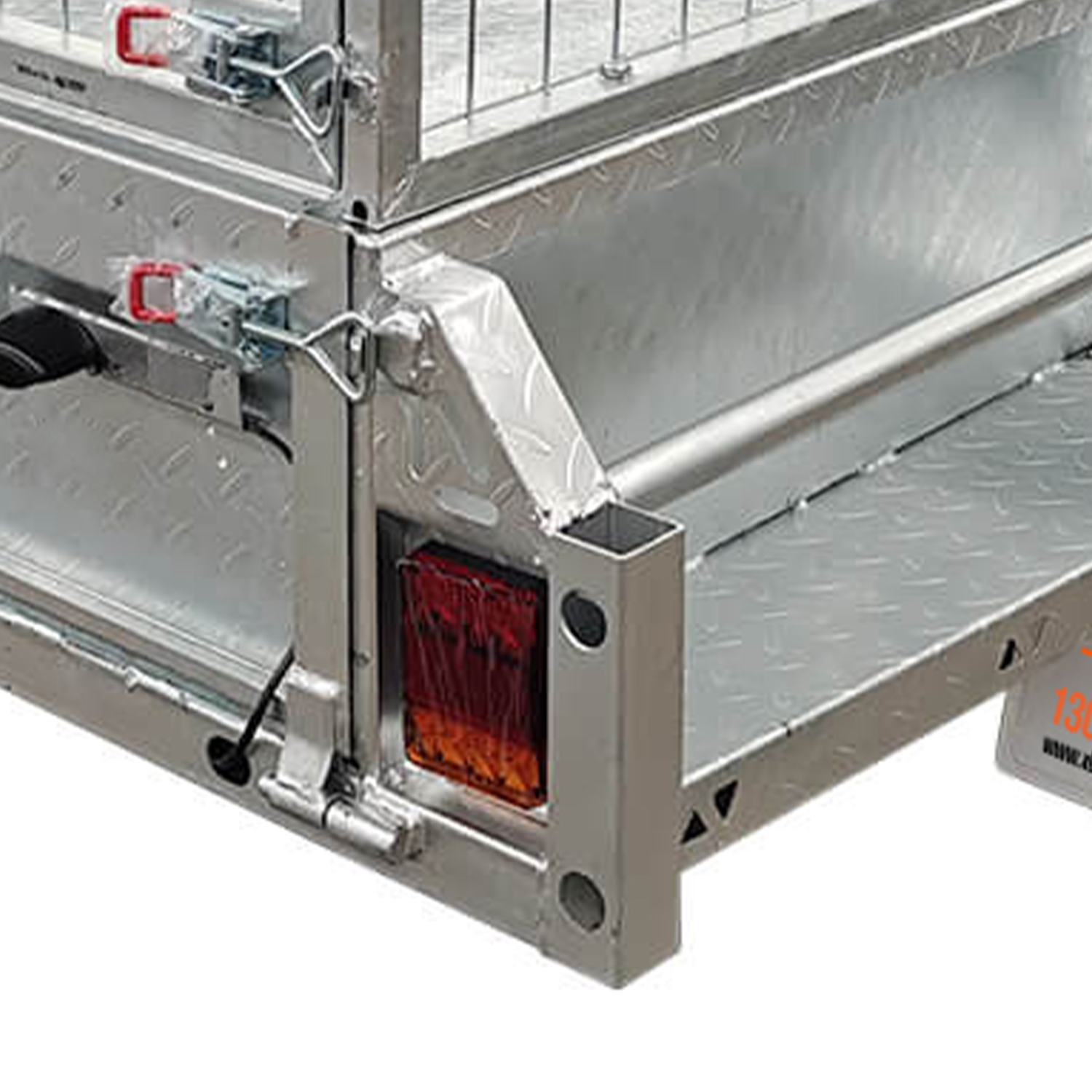

      • Light : Tail Light, LED
      • Plug : 7 Pin, Flat/ Small Round/ Big Round
