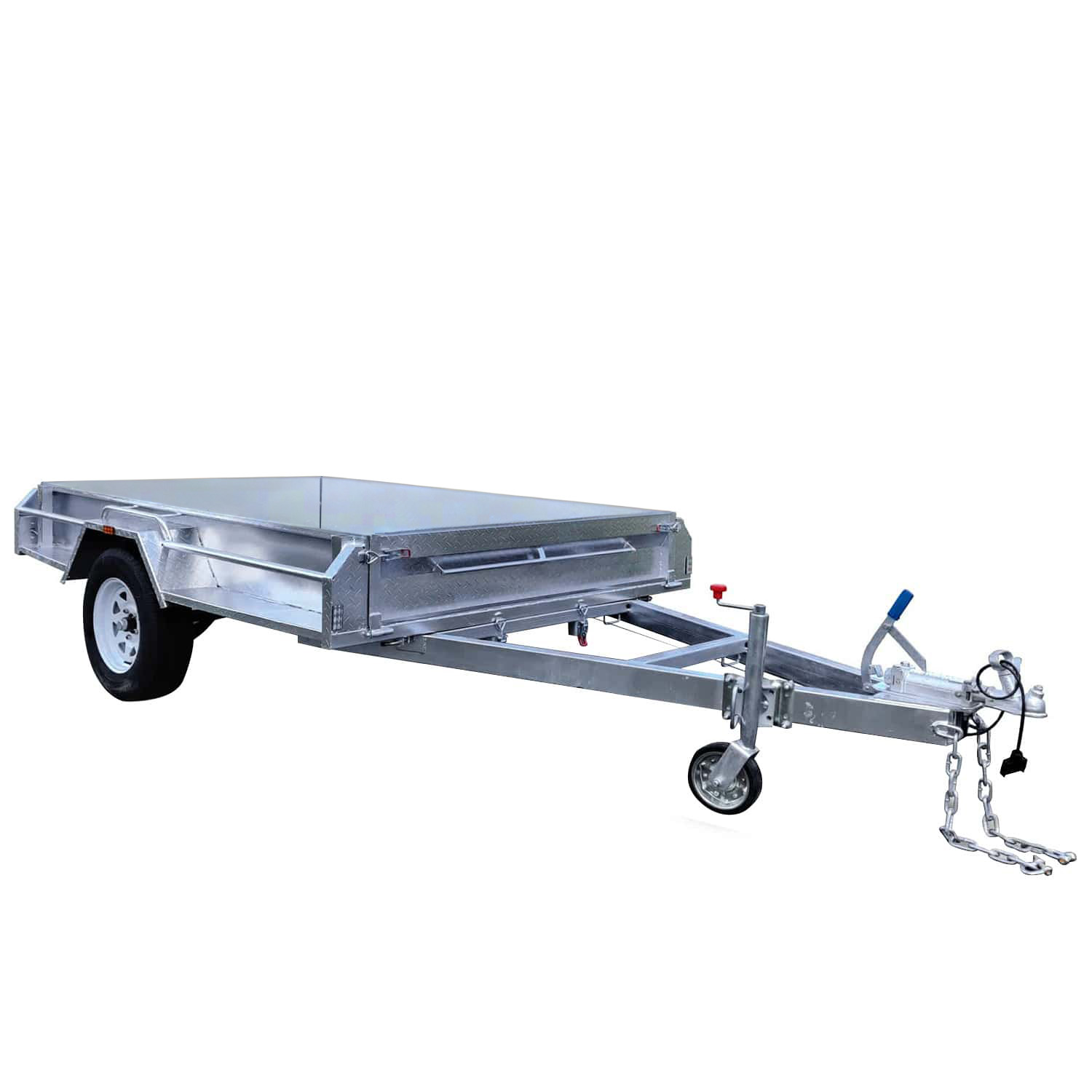

9×5 Single Axle Box Trailer ATM 1400KG With Jockey Wheel

SKU-SABTHD95XT ATM-1400KG
$2,545.00

Don't Pay $3,399.00

Save $854.00

*Buy Now from as little as $12.63 p.w. Fast online approval. View more info.

Finance Options Available
9×5 Single Axle Box Trailer ATM 1400KG With Jockey Wheel*
$2,545.00
Cage*
$300.00
Ramp*
$350.00
Ladder Racks*
$300.00
Aluminum Toolbox*
$350.00
Canvas Cover*
$580.00
Spare wheel*
$130.00
Spare wheel bracket*
$50.00
Mower Pad*
$380.00
Plug*
$0.00
Blue Slip*
$0.00

Deposit : $498.50 Per item

Delivery Options

1/191 The Horsley Drive Fairfield NSW 2165
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate Shipping Cost

Get Finance

×

    9×5 Single Axle Box Trailer ATM 1400KG With Jockey Wheel$2,545

    Enquiry Now

    ×

    Complete this enquire form to obtain additional information about our services or send personal complaint.

      9×5 Single Axle Box Trailer ATM 1400KG With Jockey Wheel$2,545

      Description

      Discover the ultimate in heavy-duty hauling with Xtreme Trailers’ 9×5 Single Axle Premium Heavy-Duty Box Trailer, a robust and certified solution for your transportation needs. Our trailers undergo rigorous testing, meeting RVSA requirements and adhering to Australian Design Rules (ADRs) to ensure reliability and compliance.

      Key Features:

      Robust Construction: Crafted for substantial hauling, this single-axle box trailer boasts a hot-dipped galvanized fully welded body and chassis, along with enhanced 45mm 9-leaf Eye To Eye springs for optimal load-bearing capacity.

      Safety Assurance: With a 1600mm RHS Drawbar and meticulous engineering, our trailers make heavy-duty hauling tasks not only easier but also safer, providing peace of mind for your transportation needs.

      Versatile Sizes: The Single Axle Heavy-Duty Box Trailers in the ATM 1400KG series offer versatility in sizes, including 7×4, 7×5, 8×5, 8×6, and 9×5, ensuring you can choose the perfect fit for your specific requirements.

      Nationwide Delivery: Xtreme Trailers caters to customers across Australia, including Sydney, Melbourne, Brisbane, Adelaide, Perth, Canberra, Newcastle, Wollongong, Port Macquarie, Coffs Harbour, Dubbo, Gold Coast, Sunshine Coast, Geelong, and Ballarat.

      Variety of Series: Explore our range of trailer sizes to cater to diverse use cases, from Premium box trailers ATM750KG ideal for lightweight applications to the Heavy Duty series with ATM750KG/1400KG for flexible transport and the Tandem series with ATM 2000KG/3200KG/3500KG designed for heavy lifting.

      Extensive Product Range: Beyond Box Trailers, Xtreme Trailers offers Tandem trailers, Boat & Jet-ski trailers, Hydraulic tipper trailers, Flat-Top trailers, Cattle/Livestock crate trailers, Car trailers, Tradesman trailers, Plant Trailers, ATV Trailer, and accessories.

      Xtreme Trailers is your trusted source for top-quality and compliant trailers. Century Caravans and Trailers® (CCT®) ensures reliable solutions for all your hauling needs. Explore our affordable and durable 9×5 Single Axle Premium Heavy-Duty Box Trailer for sale today!

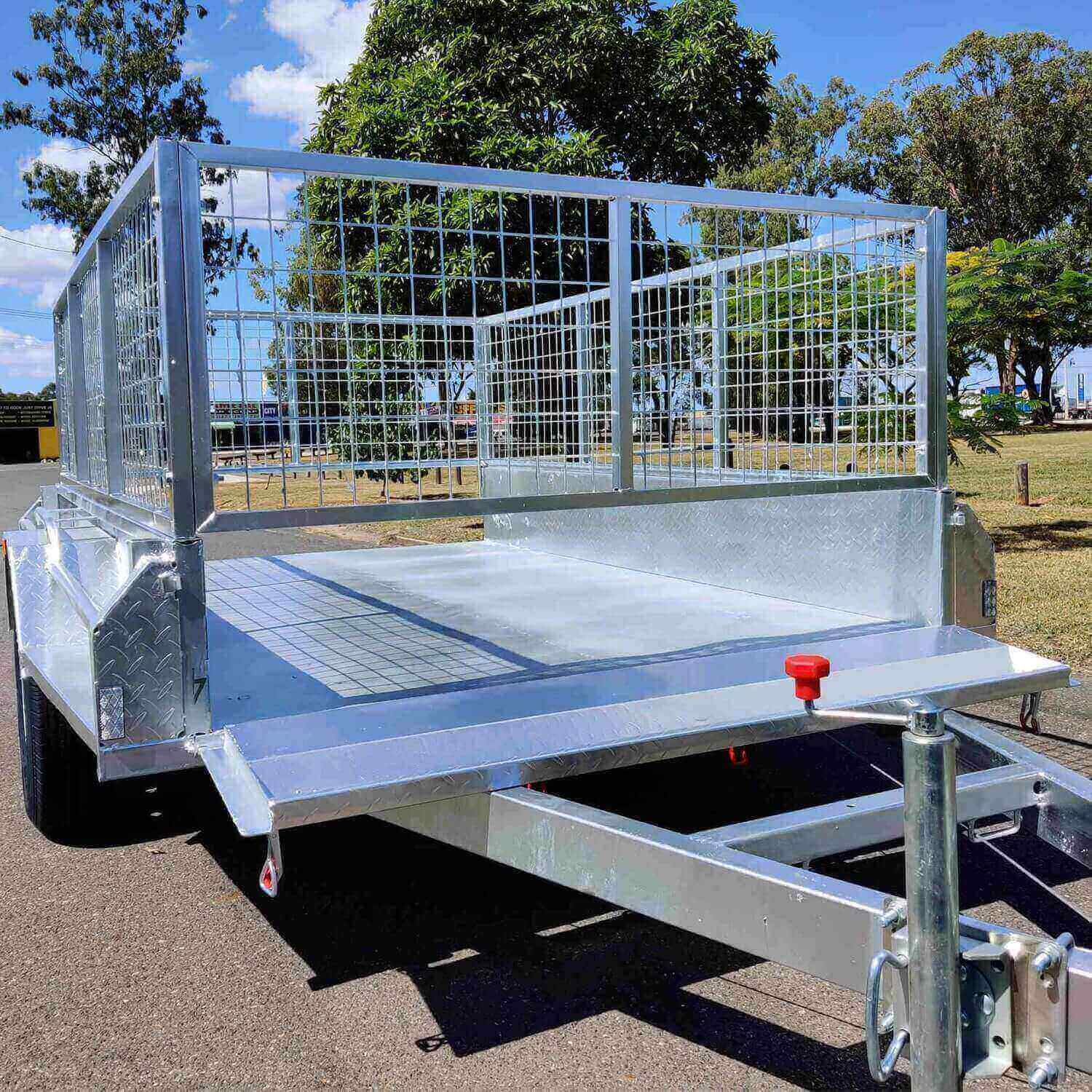

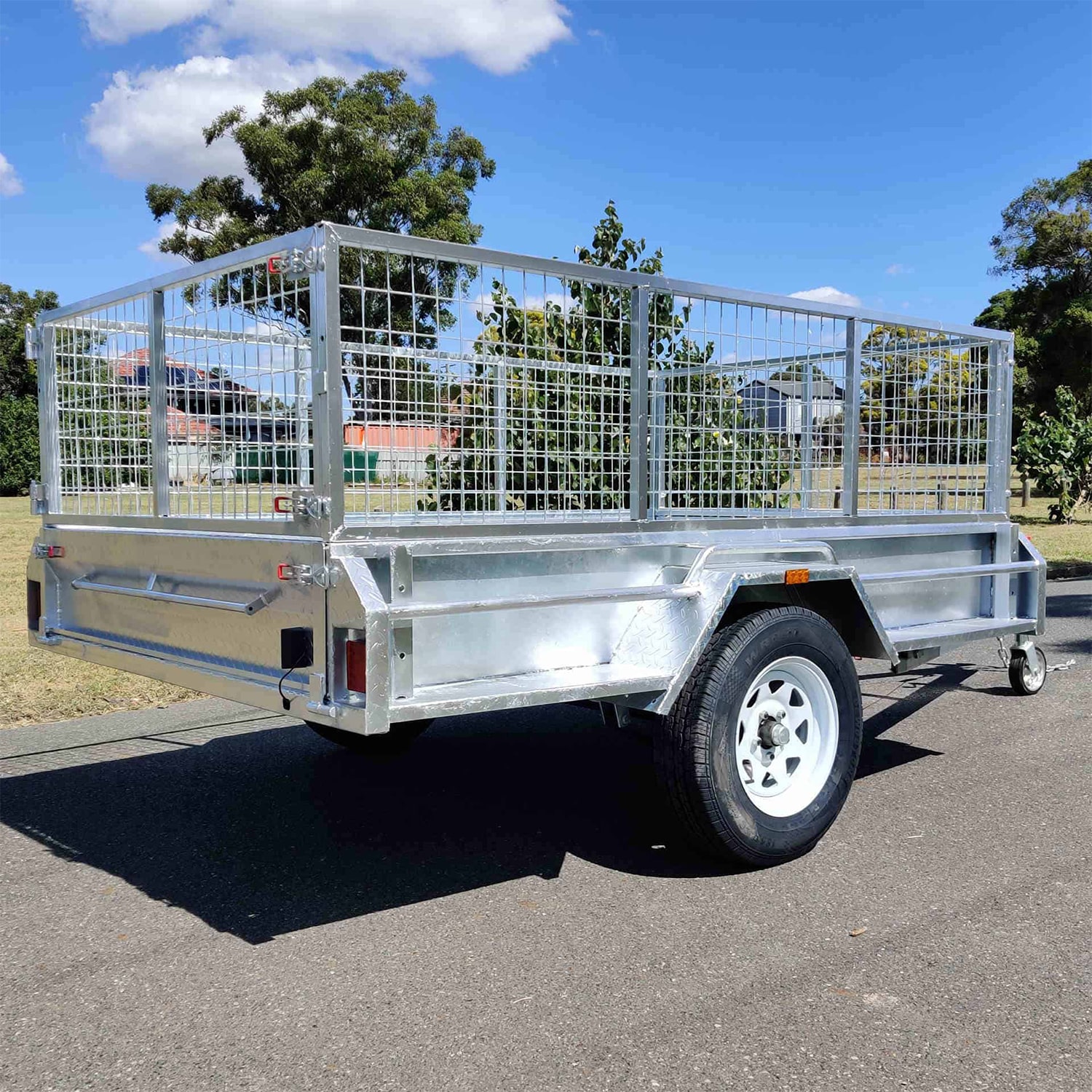

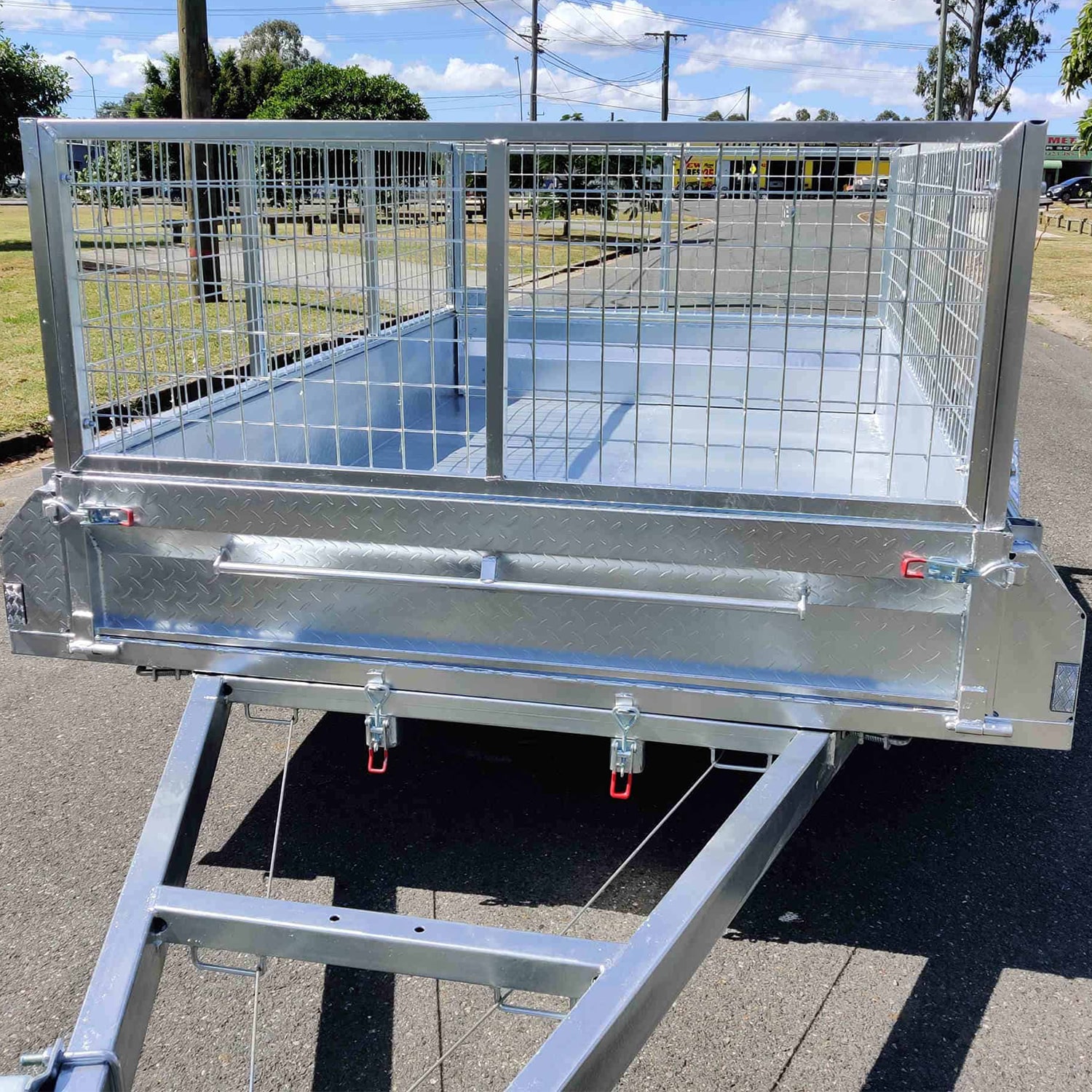

      NOTE: Cage displayed in images is for illustration purposes only.

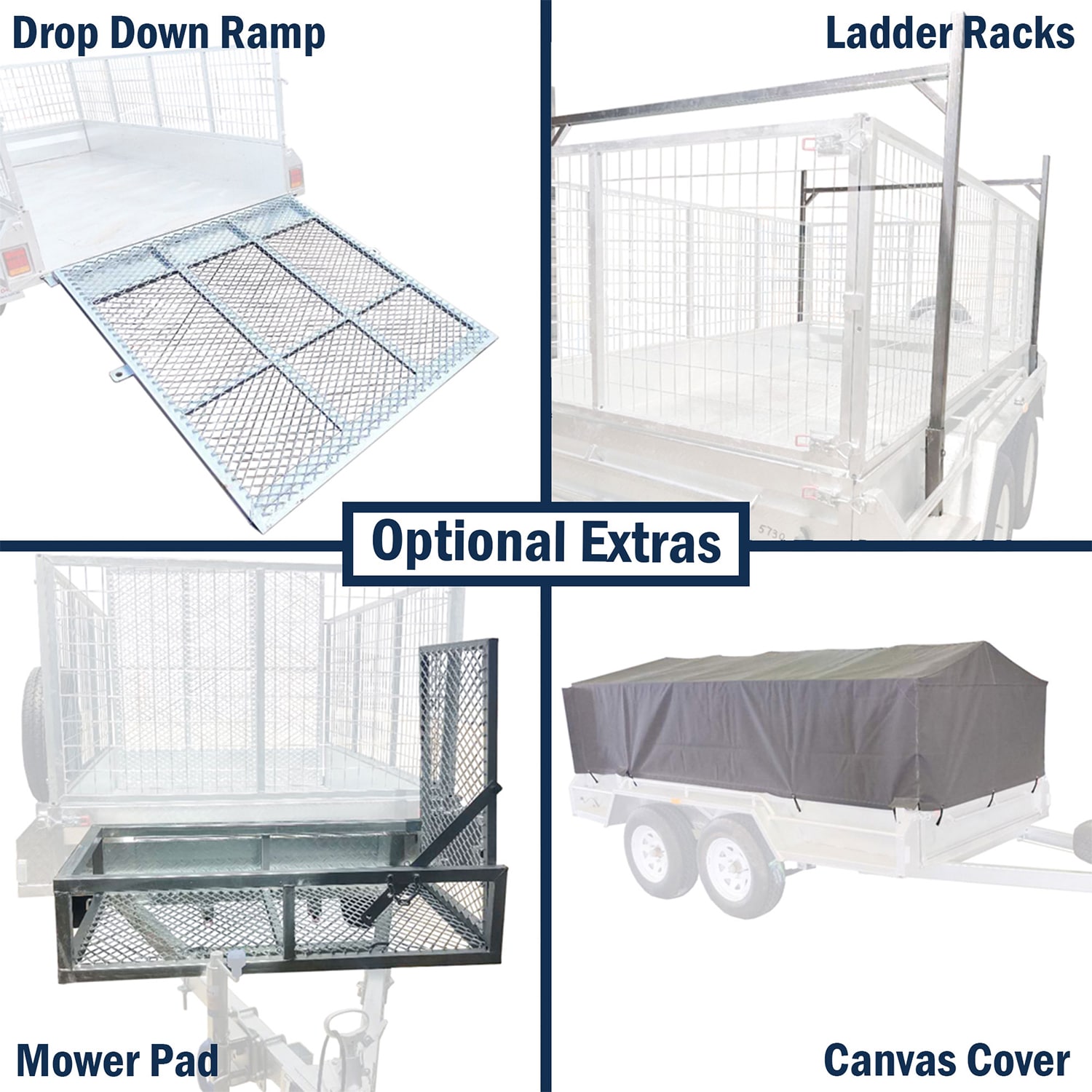

      Optional Extras

      • Spare Wheel
      • Mounting Spare Wheel Holder

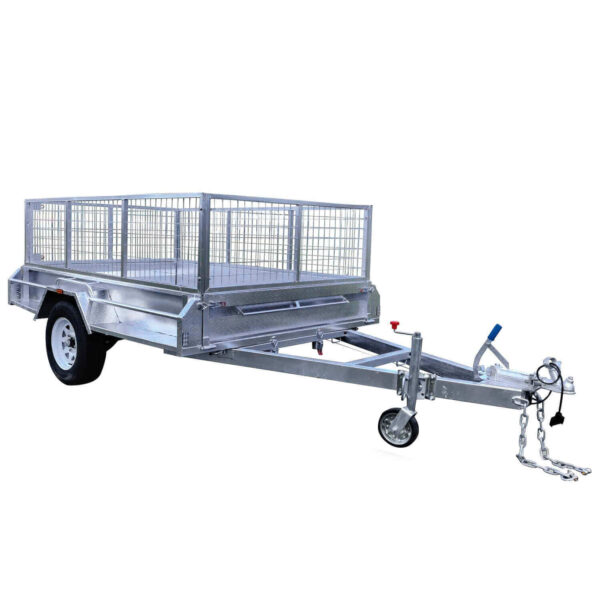

      • Removable 600mm/ 900mm Cage
      • Heavy Duty Mesh Ramp Door
      • Canvas Cover For 600mm Or 900mm Cage
      • Ladder Racks For 600mm Or 900mm Cage
      • Tool Box
      • Mower Pad

      Warranty

      The company guarantees all its distributed goods against defective parts or workmanship with the following warranty provisions:

      • 5-Year Structural Warranty on all Brand-New Trailers: This warranty excludes coverage for surface rust, mistreatment, damage, or misuse.
      • 1-Year Warranty on Leaf Springs, Lights, Wiring, Jockey Wheel, and All Other Parts.
      • Warranty Exclusion for Second-hand or Used Trailers or Goods.

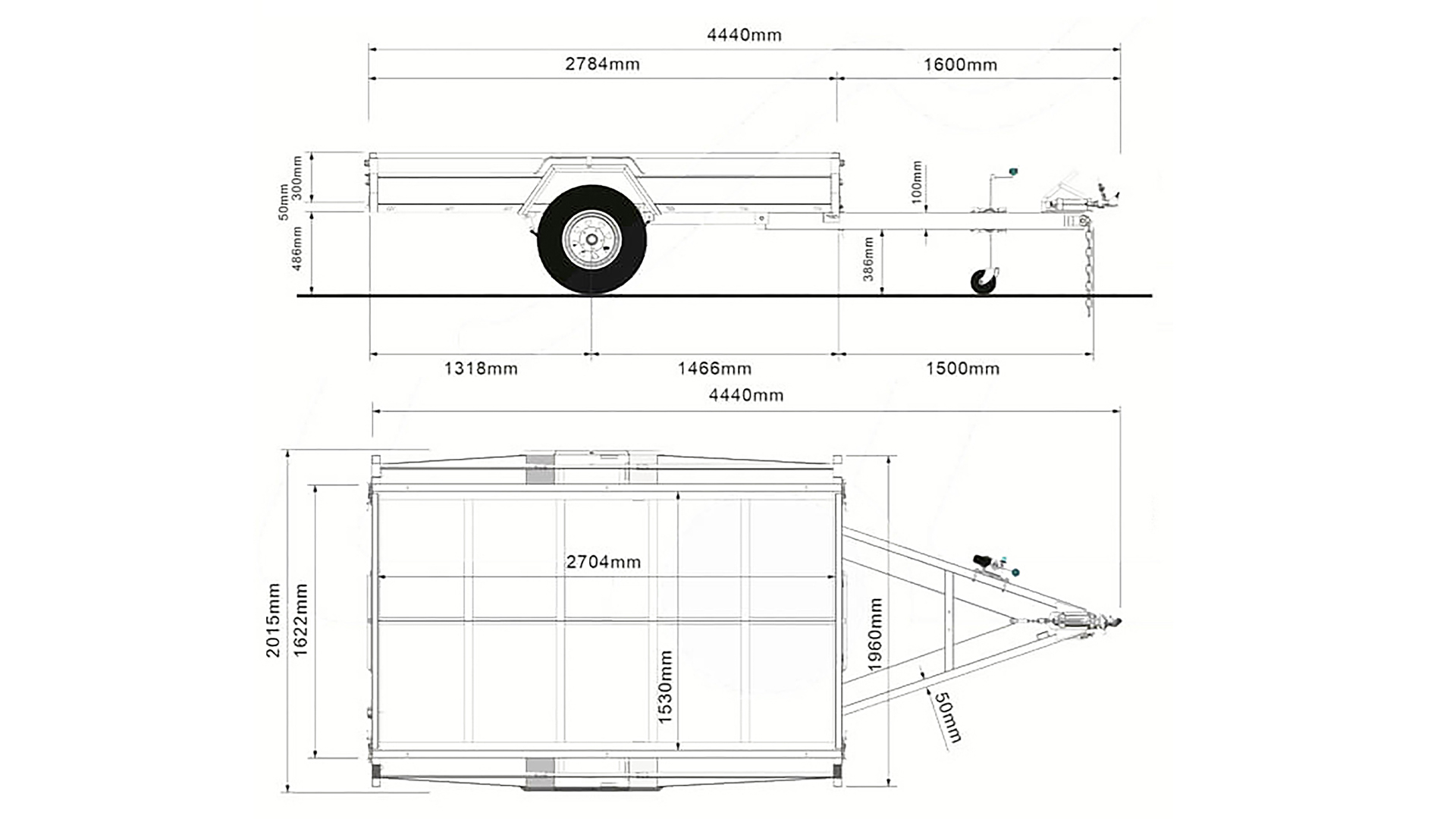

      Specifications

      • Model Number : SABTHD95
      • ATM : 1400kg
      • Tare : 440kg(Exclude the weight of the cage)
      • Capacity : 960kg
      • Internal Trailer Size : 2700mm x 1530mm x 300mm
      • Side : 300mm High, Fully Welded
      • Drawbar : 1600mm, 100mmx50mm RHS
      • Hot Dipped Galvanised
      • Fully Welded Body & Chassis
      • Removable Front and Rear Drop Down Gates
      • Welded Ladder Racks Holders
      • 6 Locking Points On Drawbar

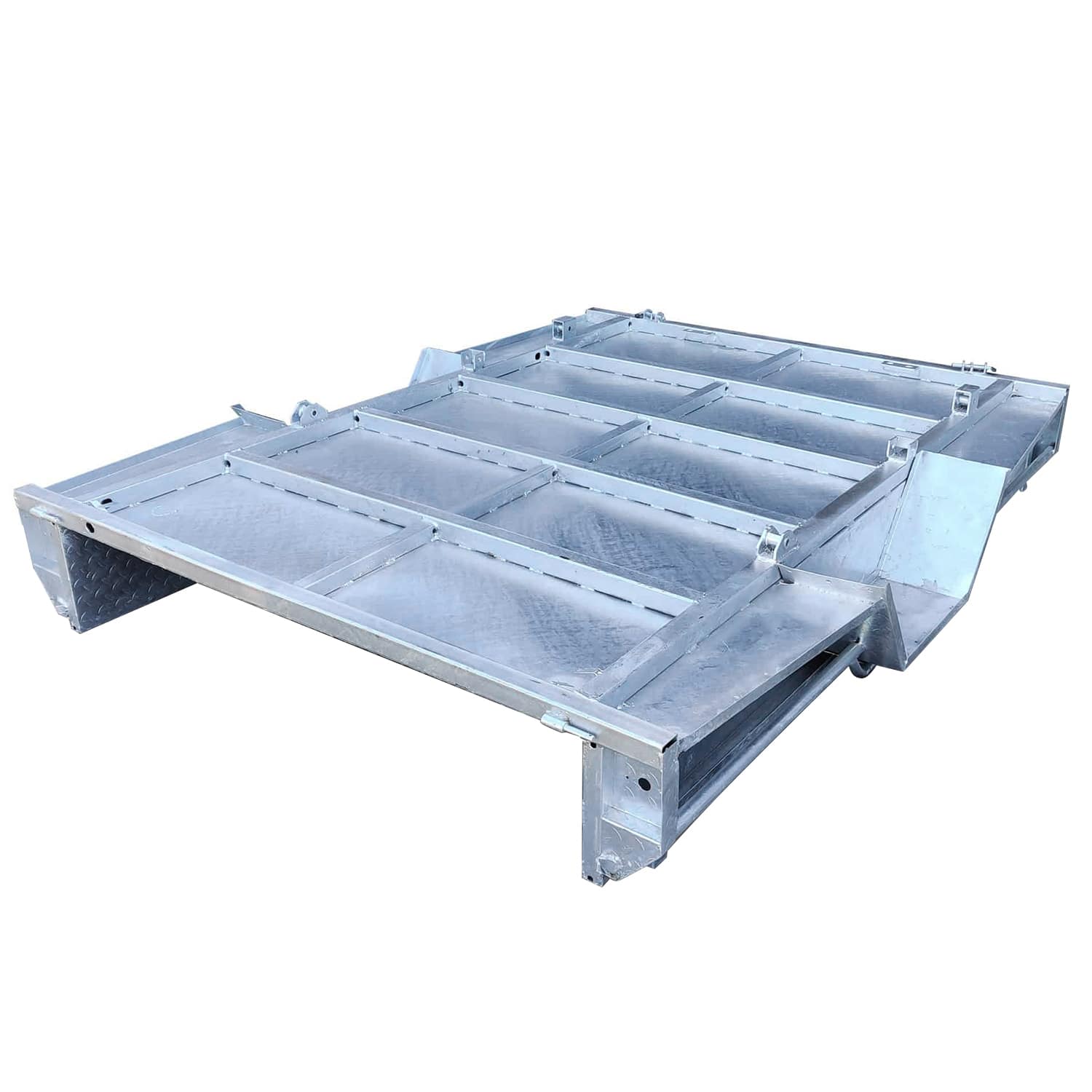

      • Flooring : Checker Plate Floor
      • Tie Down Rails All Around
      • Support : Better Structure Support 50mm×50mm SHS Support Beams From Left To Right 40mm×40mm SHS Support Beams From Front To Back
      • Step-up Platforms On Both Sides
      • Axle : Single Axle, 50mm Round Solid Axle
      • Brake : Menchanic Disc

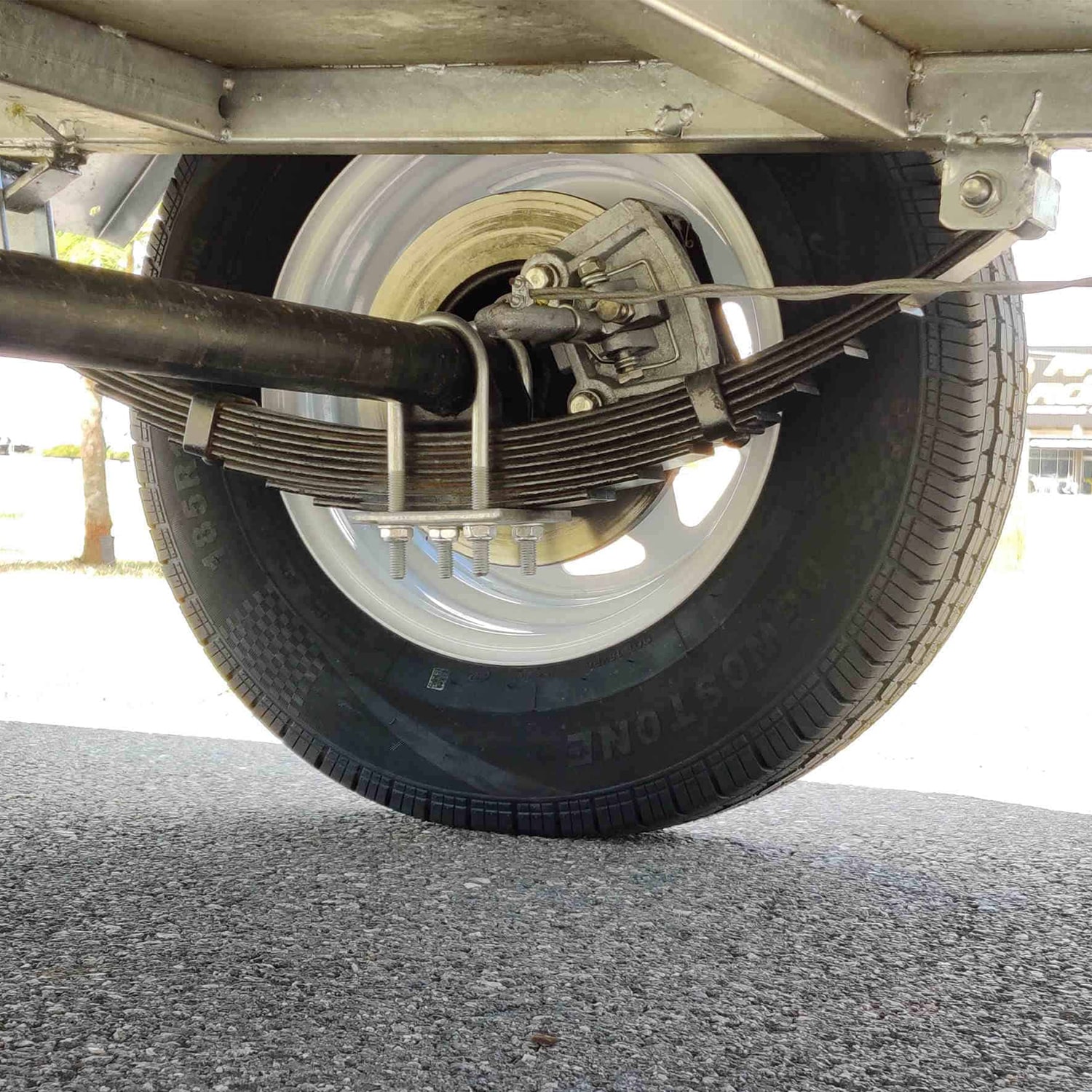

      • Springs : 45mm 9 Leaf Eye To Eye
      • Wheel Size : 14″
      • Tyre Size : 185/14

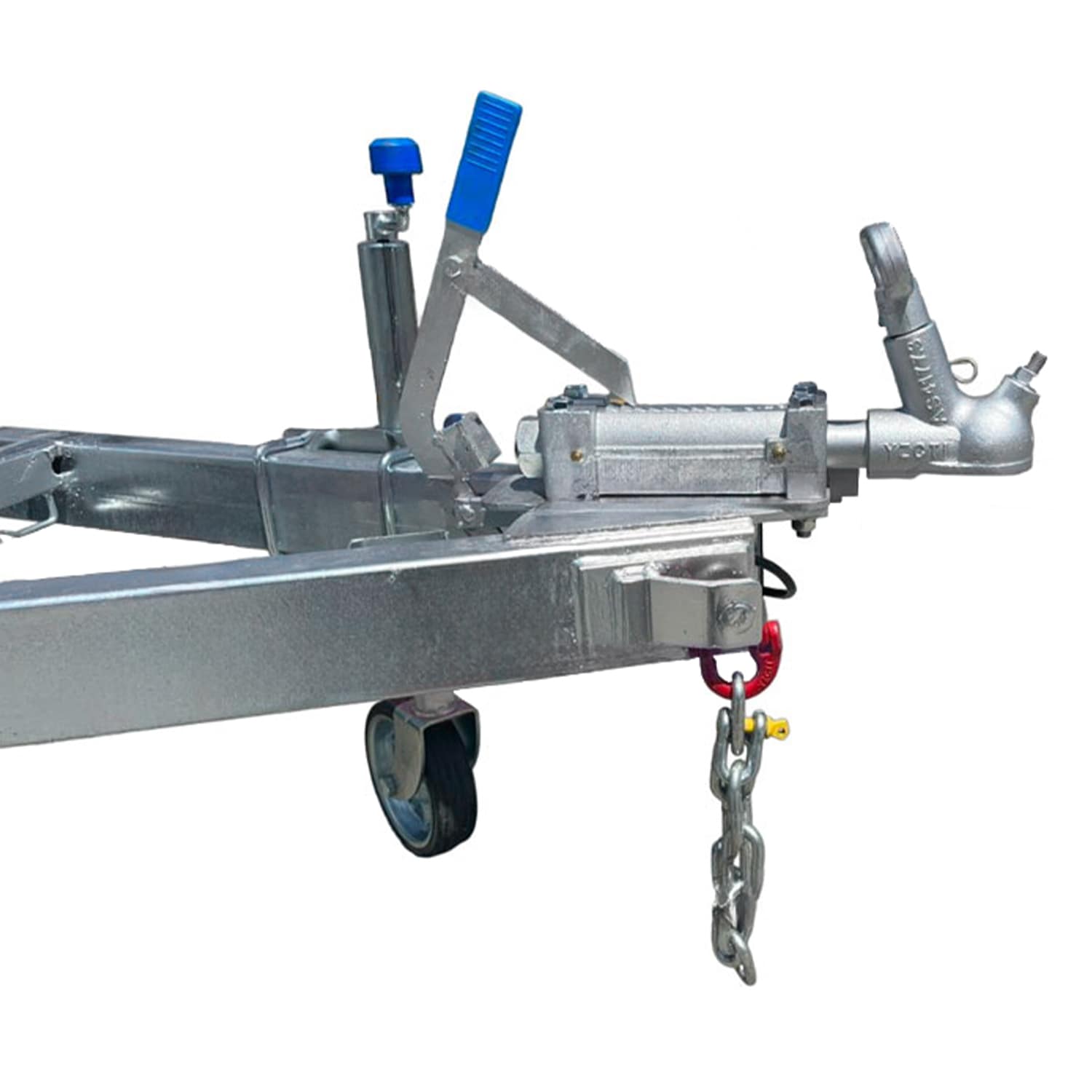

      • Coupling : 50mm 2000kg Over-ride
      • Jockey Wheel : 8” Swing up
      • Light : Tail Light, LED
      • Plug : 7 Pin, Flat/ Small Round/ Big Round
