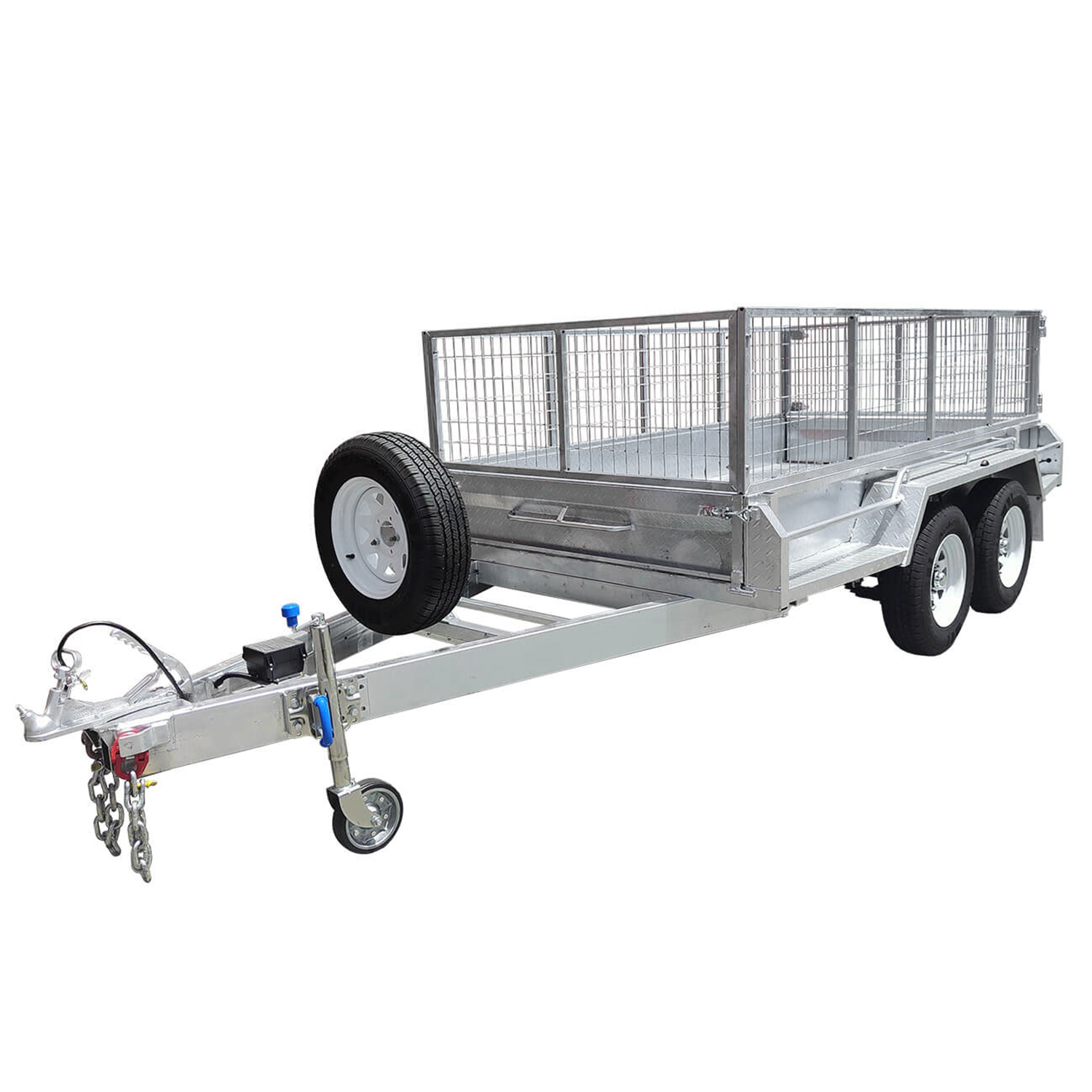

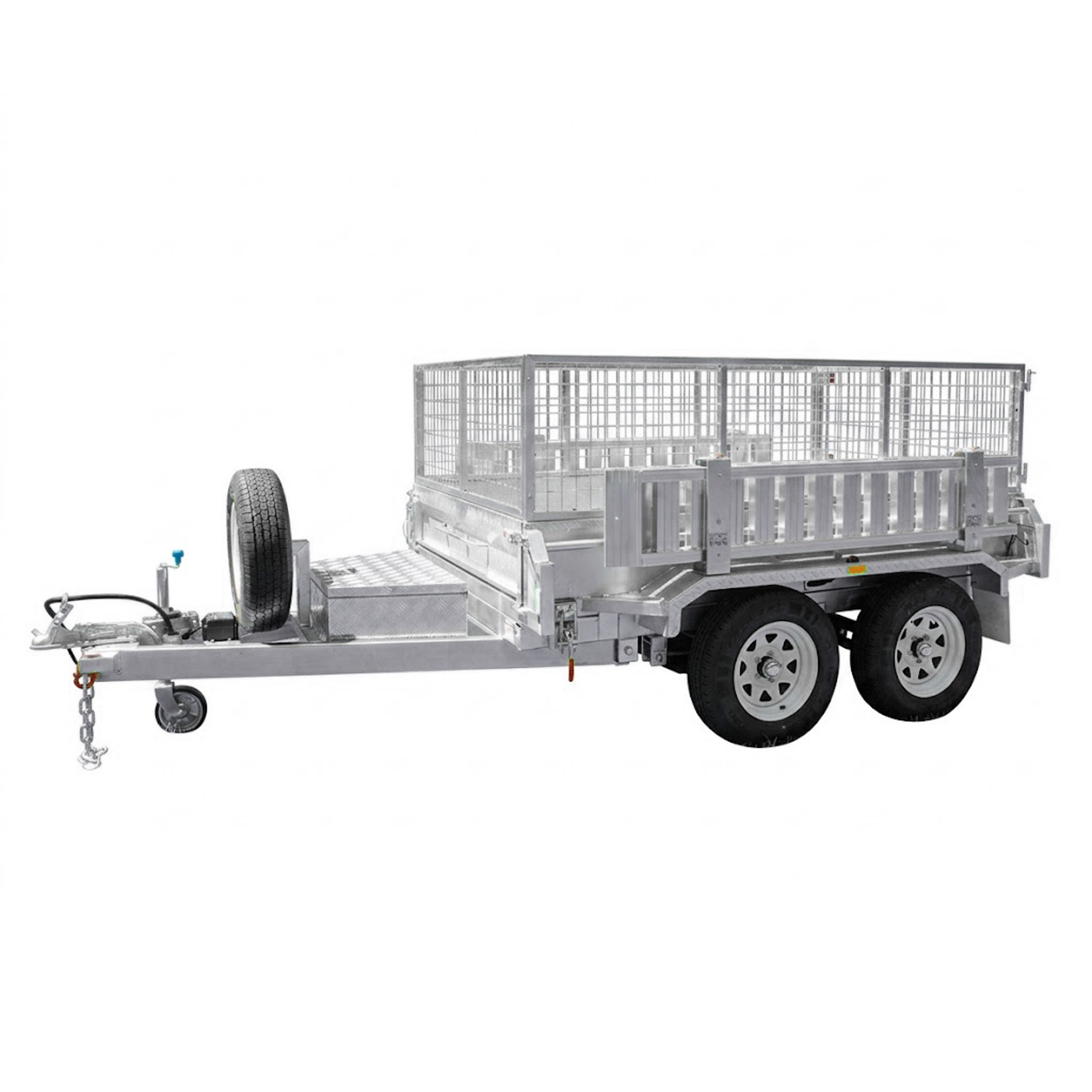

An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, Pre-order) featuring silver metal mesh sides, a front-mounted spare tire, a tow hitch, and dual axles for four-wheel support.
An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer with a 3200kg ATM (Pre-order) is shown on a white background, featuring mesh sides, four wheels, a silver finish, and a front-mounted spare tire.

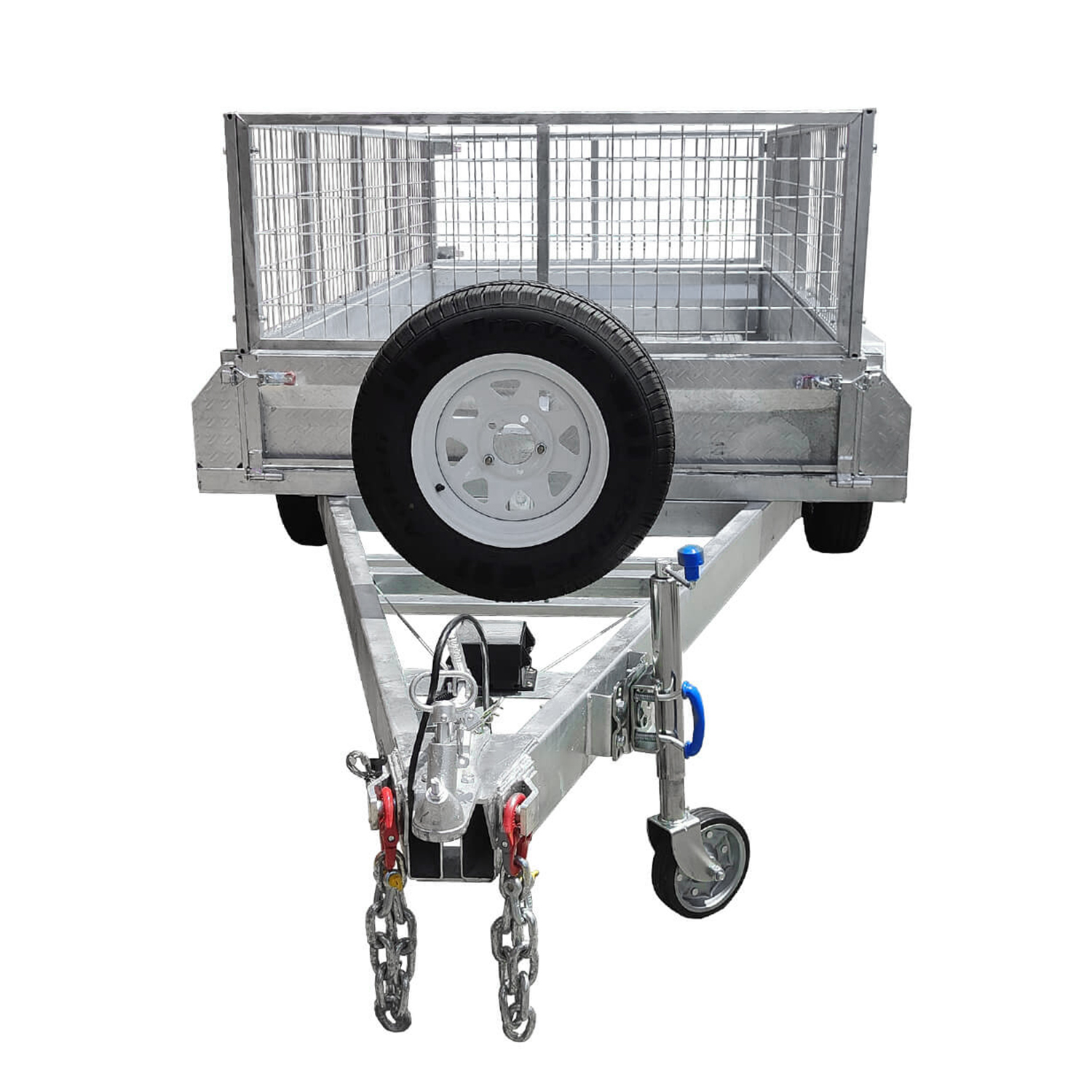

The 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order) features a robust metal construction with a mesh cage, front wheel, and a spare tire mounted at the front. Chains hang from the hitch, and it is designed for efficient towing.

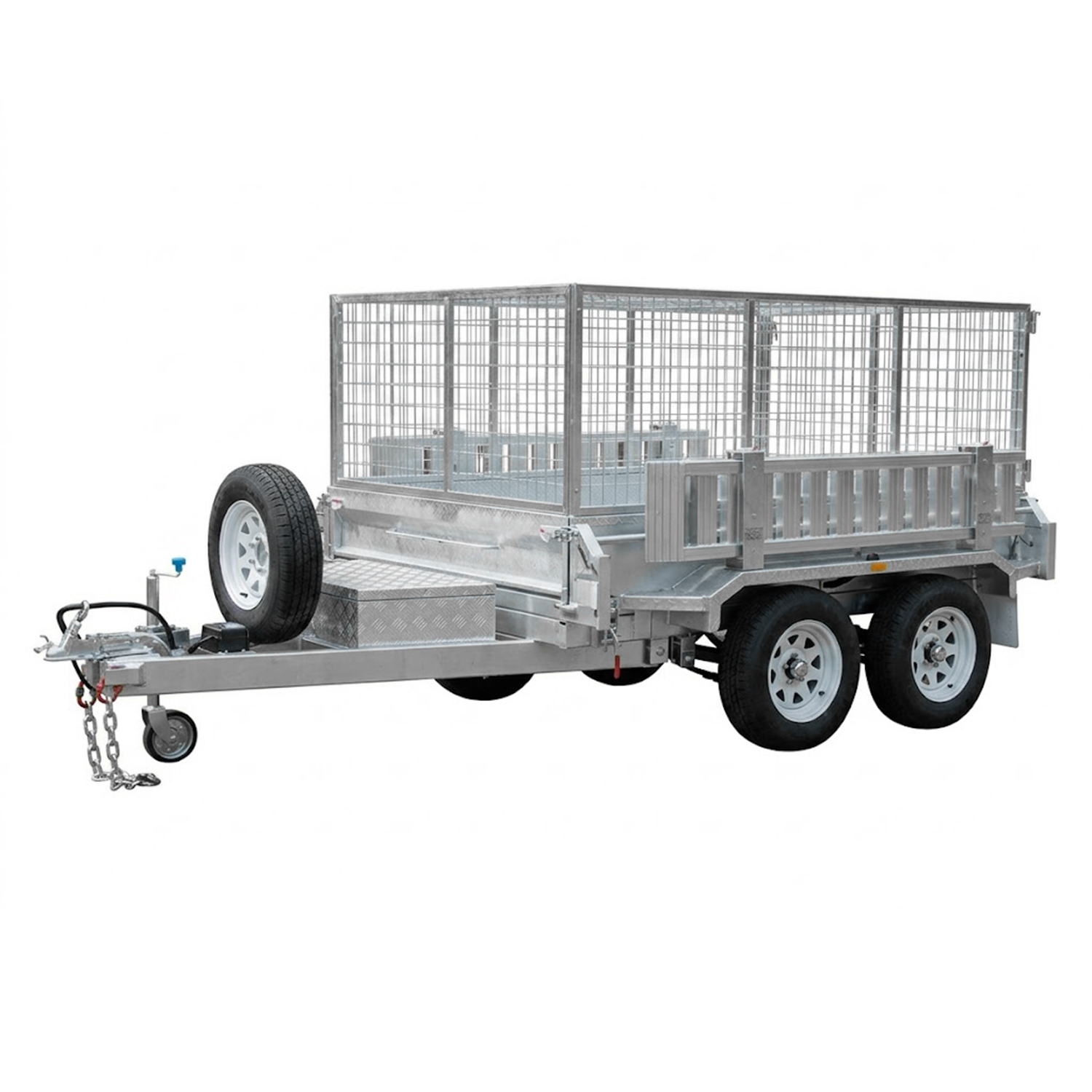

An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, pre-order) featuring a silver finish, metal mesh sides, mounted spare tire, dual axles, and a tow hitch with attached safety chains, shown on a white background.
An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, pre-order), featuring galvanized metal construction, high wire mesh sides, a mounted spare tire, and a tow hitch—designed for transporting goods or equipment.

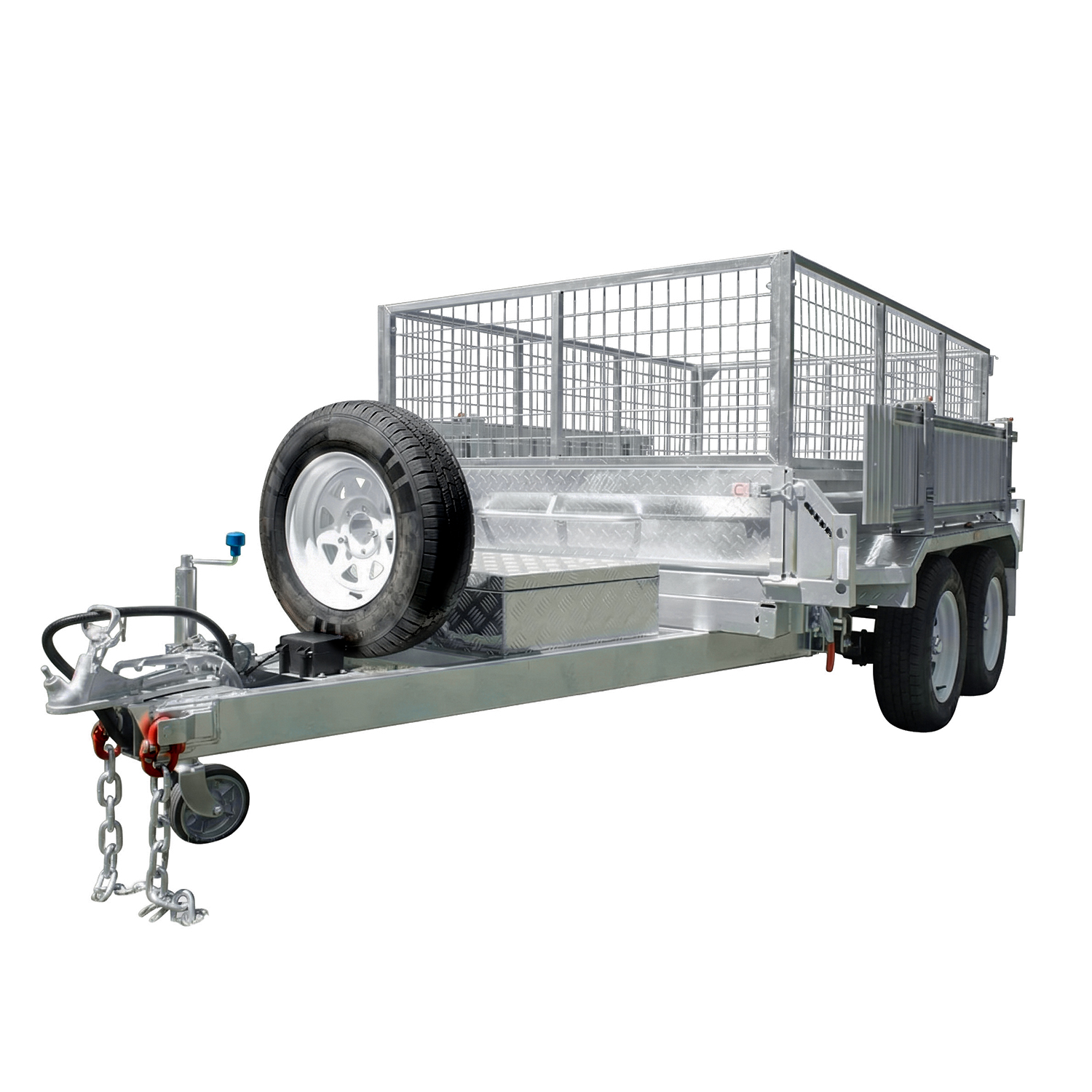

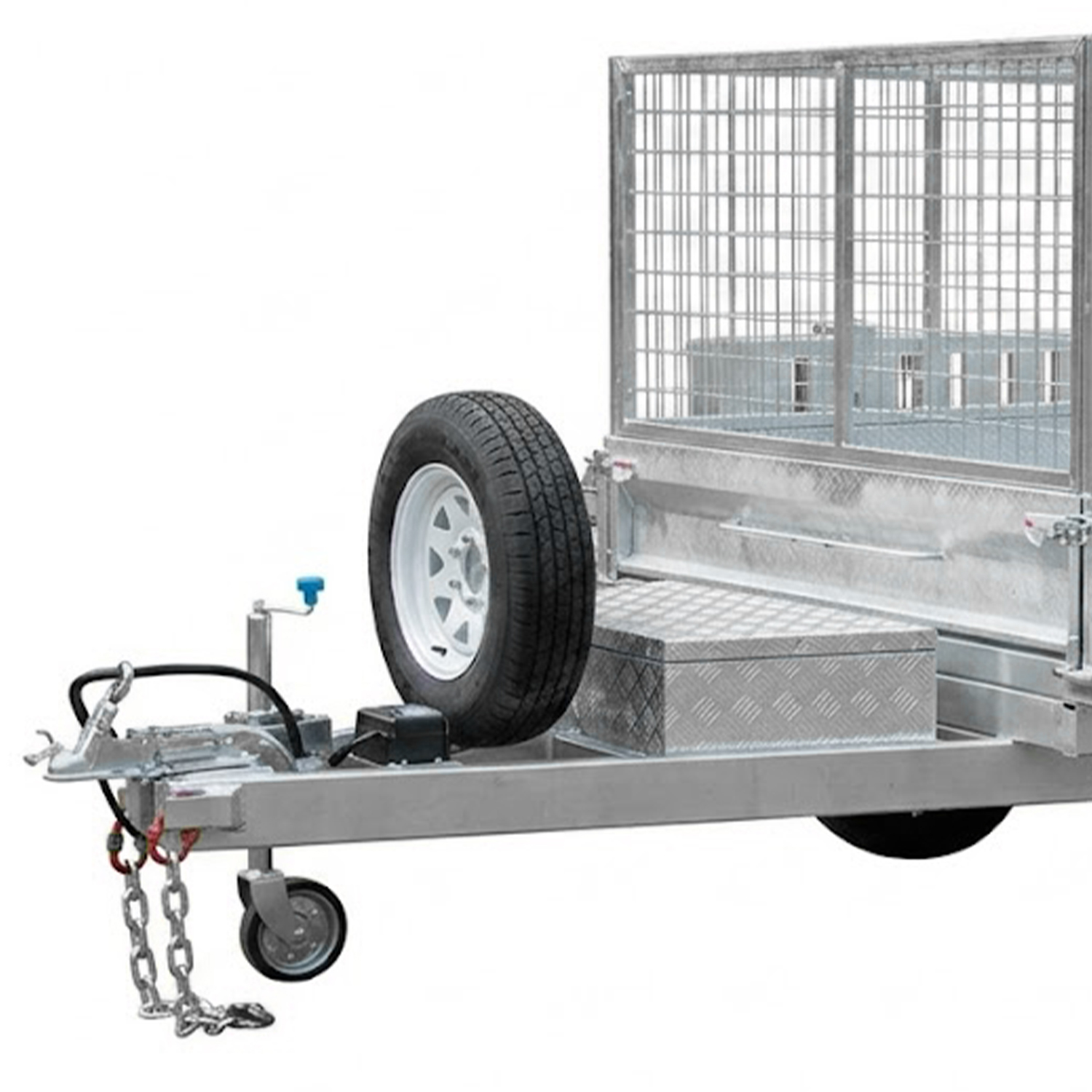

A close-up of the 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order) shows a spare tire, wire mesh cage, small storage box, and a tow hitch with safety chains.

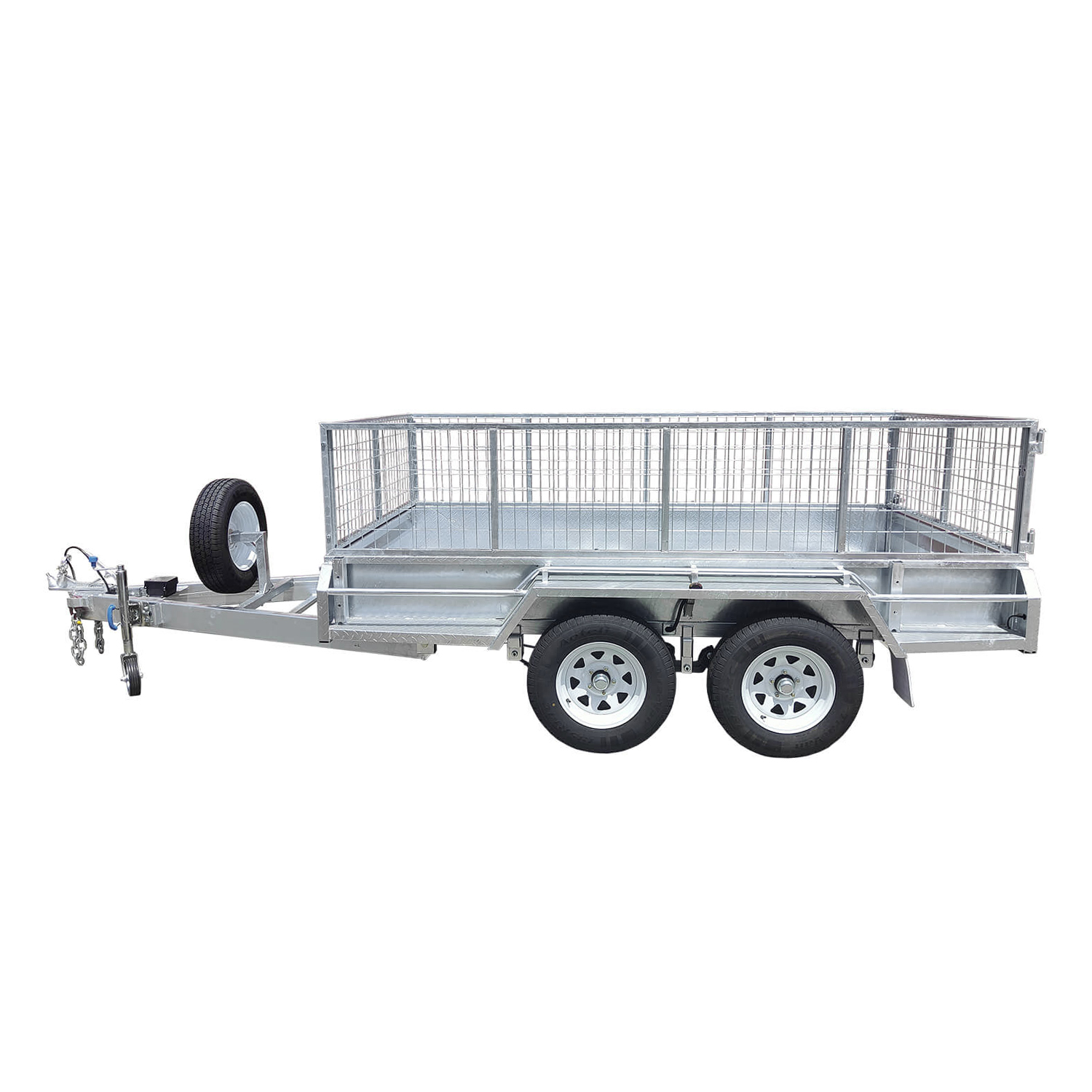

The 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, pre-order) is a galvanized metal utility trailer featuring two wheels per side, wire mesh sides, and a rear gate. Engineered for heavy-duty hauling, this sturdy trailer offers reliable performance and robust construction.

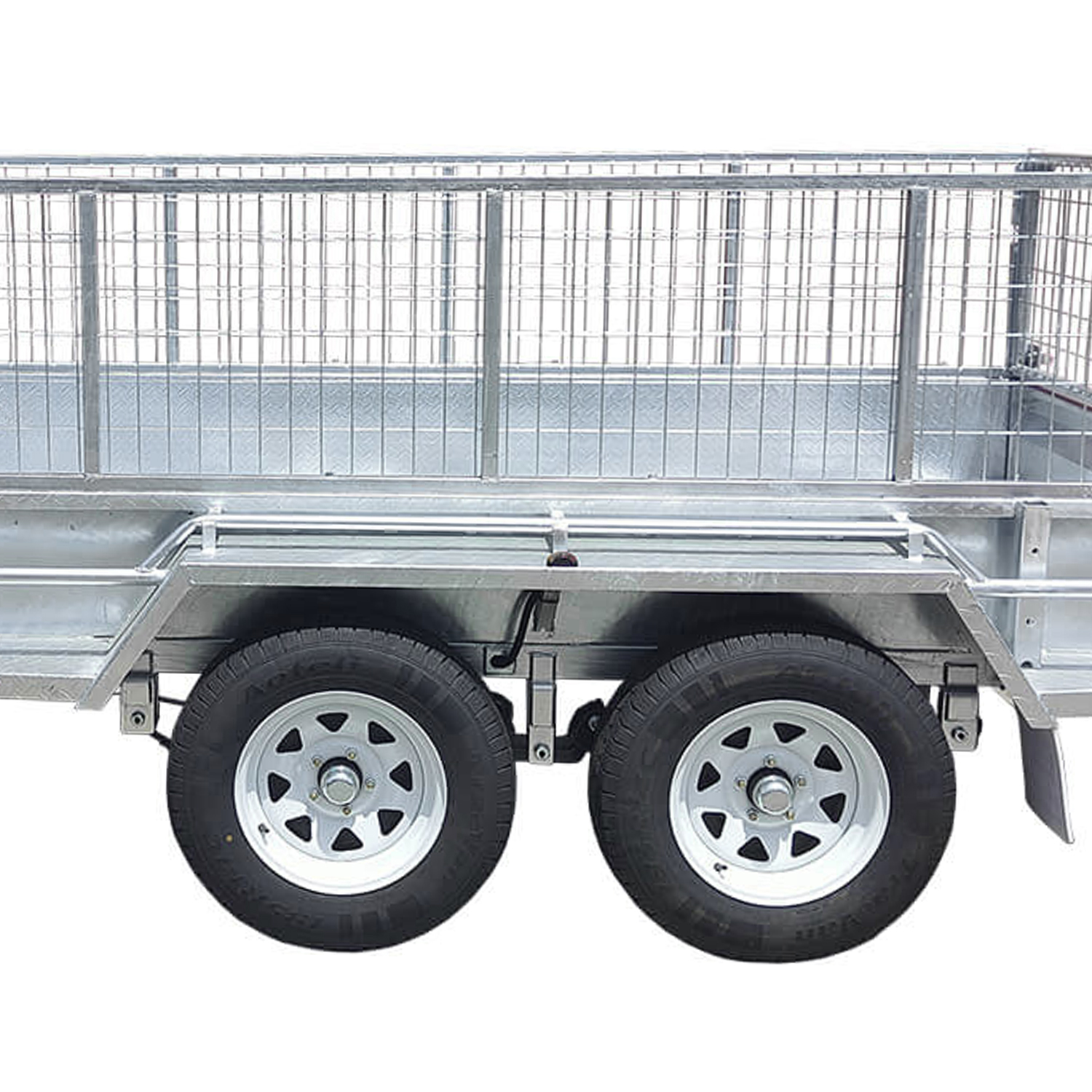

A close-up side view of the 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order) featuring two wheels with white rims and a wire mesh cage on top.

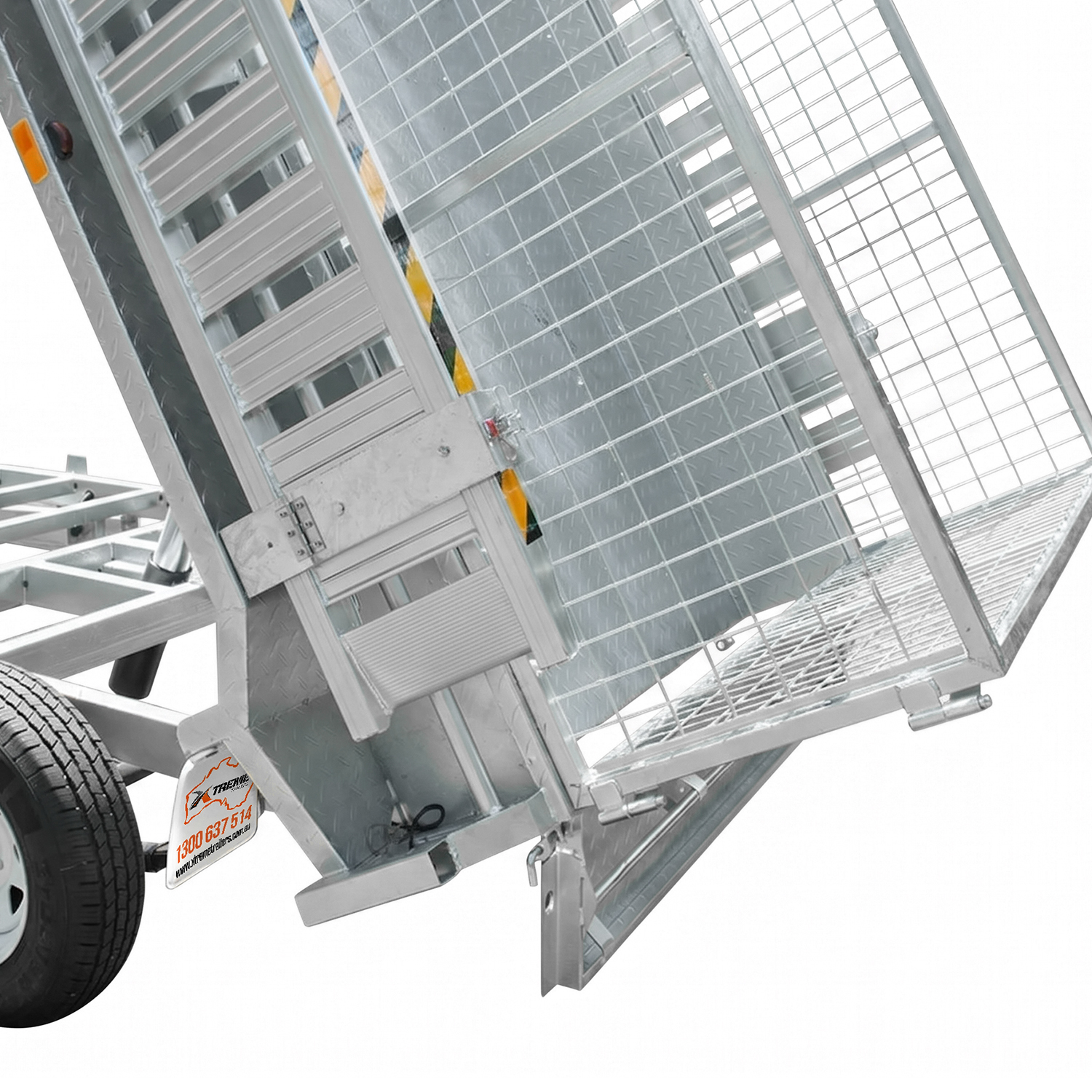

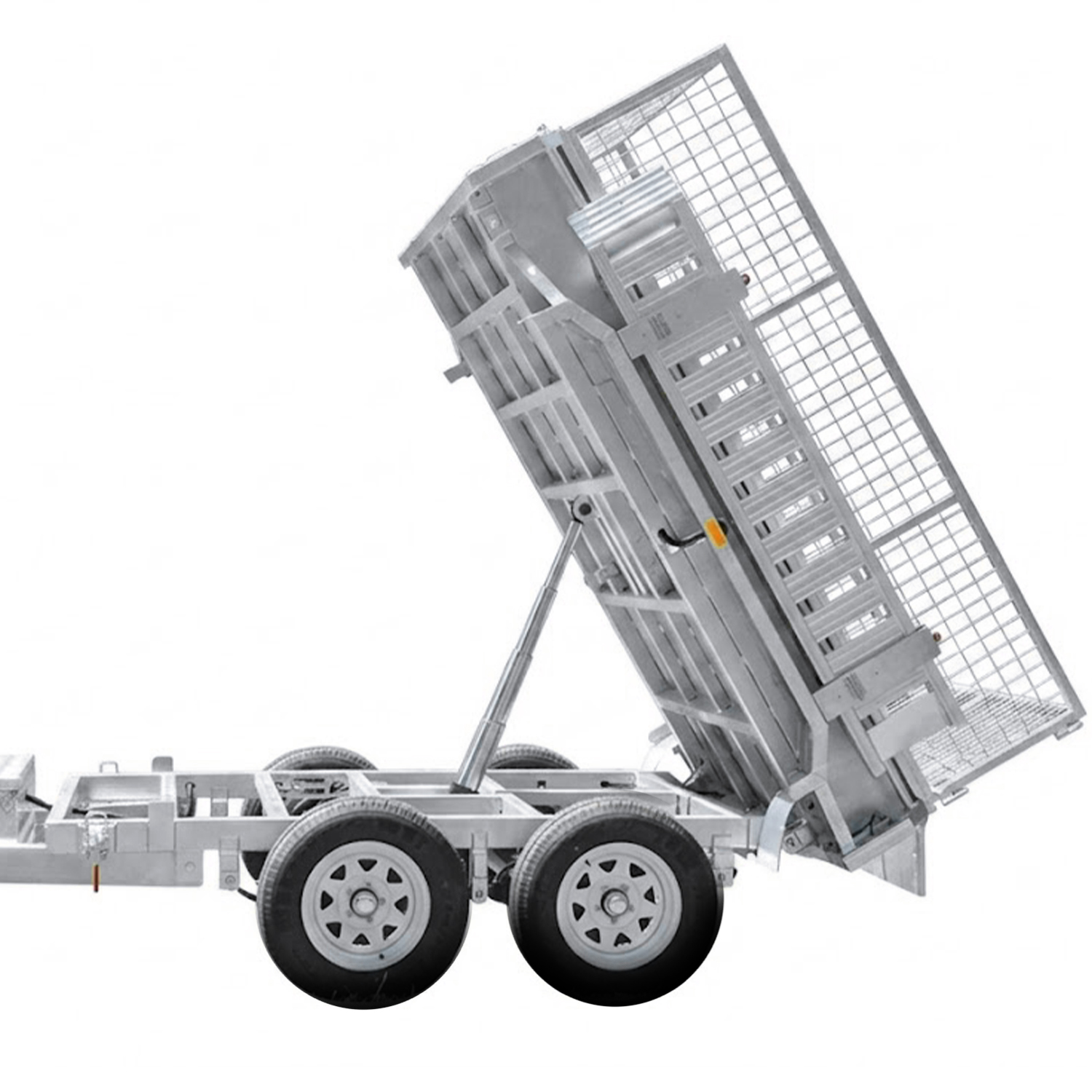

An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, Pre-order) in silver, featuring a mesh cage bed that tilts upward with its hydraulic lift for easy unloading of materials.

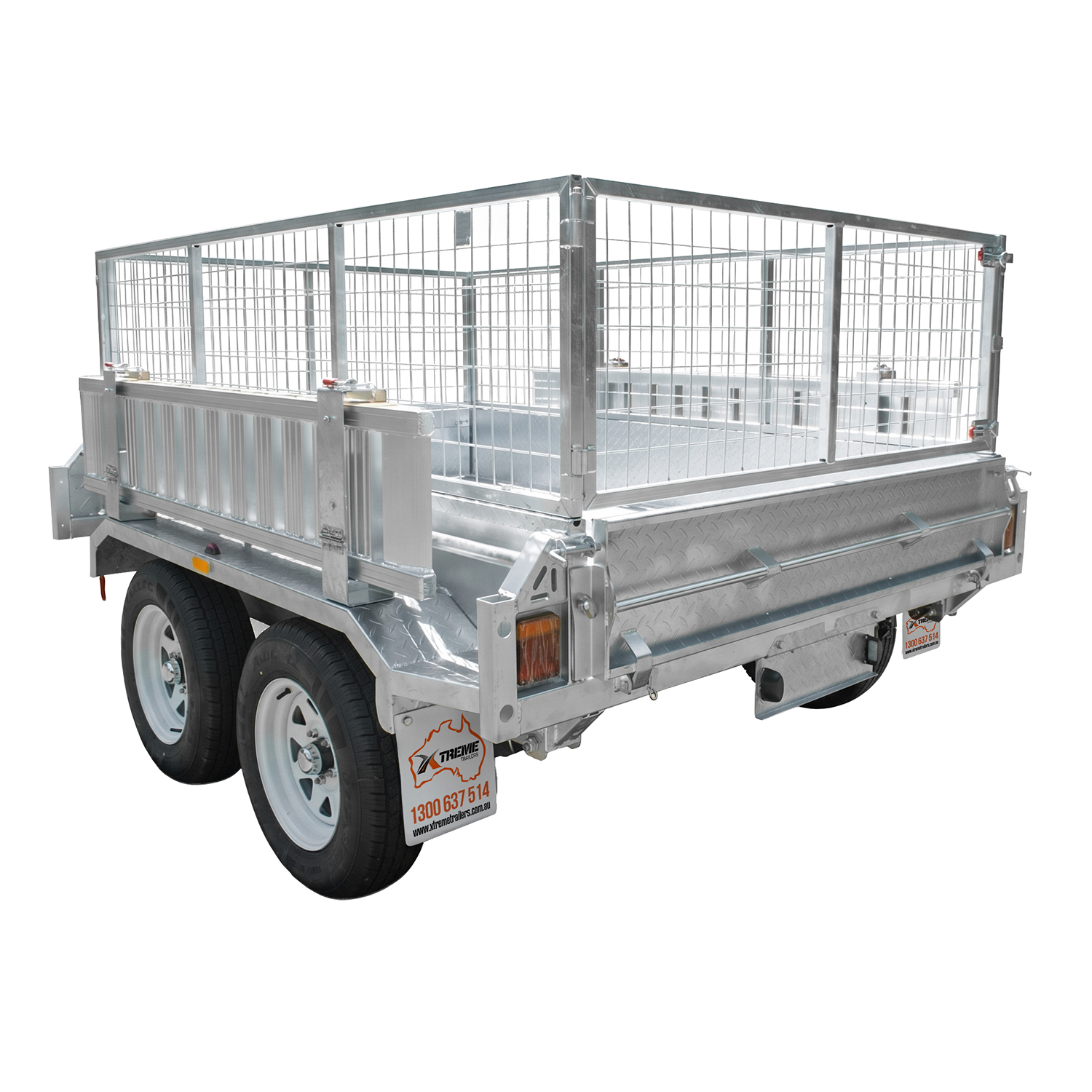

Close-up of an 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order) with a mesh ramp gate partially open, revealing the wheel and sturdy metal framework. The trailer is shown in a tilted position for easy loading or unloading.

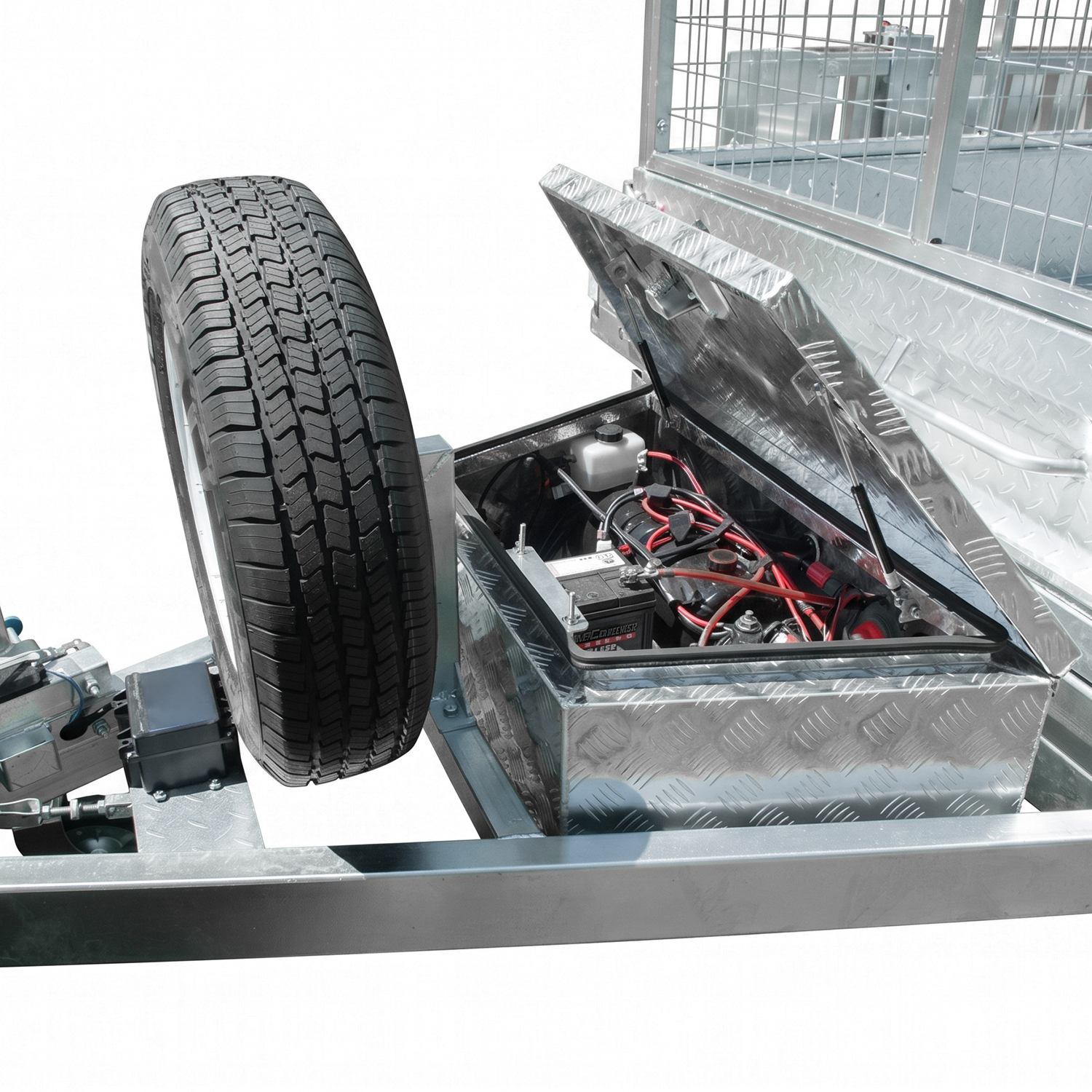

Close-up of the 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order) showing its metal frame with a mounted spare tire and an open toolbox revealing the battery and internal wiring. The surface is finished with a diamond plate pattern.
An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, pre-order) in silver, featuring side rails, a mesh cage, spare tire, and tow hitch, is viewed from the side against a white background.
An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, Pre-order) featuring silver metal mesh sides, a front-mounted spare tire, a tow hitch, and dual axles for four-wheel support.
An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer with a 3200kg ATM (Pre-order) is shown on a white background, featuring mesh sides, four wheels, a silver finish, and a front-mounted spare tire.
The 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order) features a robust metal construction with a mesh cage, front wheel, and a spare tire mounted at the front. Chains hang from the hitch, and it is designed for efficient towing.
An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, pre-order) featuring a silver finish, metal mesh sides, mounted spare tire, dual axles, and a tow hitch with attached safety chains, shown on a white background.
An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, pre-order), featuring galvanized metal construction, high wire mesh sides, a mounted spare tire, and a tow hitch—designed for transporting goods or equipment.
A close-up of the 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order) shows a spare tire, wire mesh cage, small storage box, and a tow hitch with safety chains.
The 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, pre-order) is a galvanized metal utility trailer featuring two wheels per side, wire mesh sides, and a rear gate. Engineered for heavy-duty hauling, this sturdy trailer offers reliable performance and robust construction.
A close-up side view of the 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order) featuring two wheels with white rims and a wire mesh cage on top.
An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, Pre-order) in silver, featuring a mesh cage bed that tilts upward with its hydraulic lift for easy unloading of materials.
Close-up of an 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order) with a mesh ramp gate partially open, revealing the wheel and sturdy metal framework. The trailer is shown in a tilted position for easy loading or unloading.
Close-up of the 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order) showing its metal frame with a mounted spare tire and an open toolbox revealing the battery and internal wiring. The surface is finished with a diamond plate pattern.
An 8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer (3200kg ATM, pre-order) in silver, featuring side rails, a mesh cage, spare tire, and tow hitch, is viewed from the side against a white background.

Displayed product images are for illustrative purposes only and may not precisely represent the product. Xtreme Trailers reserves the right to alter product specifications without notice. Some pictures may include optional features. All website images are copyright protected.

Categories: Hydraulic Tipper - ATM 3200kg, Trailers, Chains & Shackles

8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order)

SKU-HYDTBT3285XT ATM-3200KG
$7,300.00

Don't Pay $9,859.00

Save $2,559.00

*Buy Now from as little as $36.22 p.w. Fast online approval. View more info.

Finance Options Available
8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM*
$7,300.00
Cage*
Clear
$0.00
Canvas Covers*
Clear
$0.00
Ladder Racks*
Clear
$0.00
Spare Wheel and Holder*
Clear
$0.00
Side Wall Tie Down Points*
Clear
$300.00
Trapezoid Toolbox*
Clear
$0.00
Heavy Duty Aluminium Loading Ramps*
Clear
$700.00
Aluminium Loading Ramp Holder*
Clear
$0.00
Plug*
Clear
$0.00
Blue Slip*
Clear
$0.00

Delivery Options

71 Long St, Smithfield
NSW 2164
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate Shipping Cost

Get A Free Quote

Get Finance

×

    8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order)$7,300

    Enquiry Now

    ×

    Complete this enquire form to obtain additional information about our services or send personal complaint.

      8×5 Dual Axle Hydraulic Tipper Tandem Box Trailer 3200kg ATM (Pre-order)$7,300

      Description

      Xtreme Trailers 8×5 Hydraulic Tipper Tandem Box Trailer for Sale in Sydney – 3200kg ATM with Galvanised Construction.

      Explore the Xtreme Trailers 8×5 Hydraulic Tipper Tandem Box Trailer, a compact and heavy-duty solution for trade, landscaping, farm and worksite transport. Designed for practical performance, this hydraulic tipper trailer features a 3200kg ATM, 820kg tare weight excluding cage and a calculated 2380kg load capacity, providing dependable capacity for a wide range of applications.

      Built for durability, the trailer features a fully welded hot-dip galvanised body and chassis with checker plate flooring and 300mm high fully welded sides. Removable front and rear drop-down gates, tie-down rails and an aluminium toolbox add versatility and convenience, while the 2400mm × 1530mm × 300mm internal loading area provides a practical 8×5 body size for transporting materials, equipment and general loads.

      The hydraulic tipping system features a 4.5T, 1.2m hydraulic cylinder and hydraulic power pack, supported by a deep cycle battery system for practical tipping operation. The tandem axle running gear includes dual 50mm solid round axles, 7-leaf rocker roller suspension, 10-inch electric drum brakes on all four wheels, 14-inch wheels and 185/R14C tyres for stable and reliable towing.

      For those seeking a compact yet capable solution, Xtreme Trailers presents the 8×5 Hydraulic Tipper Tandem Box Trailer, built with durable galvanised construction and practical features to handle demanding trade, landscaping, farm and worksite transport requirements.

      Available Across Australia: Xtreme Trailers caters to customers across Australia, including Sydney, Melbourne, Brisbane, Adelaide, Perth, Canberra, Newcastle, Wollongong, Port Macquarie, Coffs Harbour, Dubbo, Gold Coast, Sunshine Coast, Geelong, and Ballarat. Secure your 12×6 Cattle/Livestock Trailer today for a hassle-free solution to transporting your livestock with confidence.

      🔍 Explore Our Diverse Range: Discover more at Xtreme Trailers! From Tandem trailers to Boat & Jetski trailers, Hydraulic tipper trailers to Flat Top trailers, we have you covered. Xtreme Trailers provides top-quality options to meet your specialized trailer needs across Australia.

      💪🏽🔧 #TrailerForSale #HeavyTransport #TandemTrailer #HydraulicTipper #TrailerForSale #SydneyTrailers #TrailersAustralia

      NOTE: Cage displayed in images is for illustration purposes only.

      Specifications

      • Model Number : HYDTBT3285
      • Trailer Type : Hydraulic Tipper Trailer
      • Size : 8×5
      • ATM : 3200kg
      • Tare : 820kg (Exclude cage)
      • Capacity : 2380kg
      • Internal Trailer Size : 2400mm × 1530mm × 300mm
      • Drawbar : 1600mm, 120mm × 50mm RHS
      • Fully Welded Body & Chassis
      • Hot Dipped Galvanised
      • Checker Plate Floor
      • 300mm High Fully Welded Sides
      • Removable Front & Rear Drop Down Gates
      • Deep Cycle Battery System
      • 4.5T, 1.2m Hydraulic Cylinder with Hydraulic Power Pack
      • Tie Down Rails
      • Tool Box : Aluminium
      • Axle : Dual Axle, 50mm Round Solid Axle
      • Brake : 10″ Electric Drum On Four Wheels
      • Springs : 7 Leaf Rocker Roller
      • Wheel Size : 14″
      • Tyre Size : 185/R14C
      • Coupling : 50mm, 3500kg Rated
      • Jockey Wheel : 8″ Swing Up
      • Light : 12V–24V, LED
      • Plug : 7 Pin, Flat / Small Round / Large Round

      Optional Extras

      • Mesh Cage
      • Canva Cover
      • Ladder Rack
      • Spare wheel & bracket
      • Side Wall Tie Down Points
      • Trapezoid Tool Box
      • Loading Ramps & holder
      • Solar Panel

      Warranty

      The company guarantees all its distributed goods against defective parts or workmanship with the following warranty provisions:

      • 10-Year Structural Warranty on all Brand-New Trailers: This warranty excludes coverage for surface rust, mistreatment, damage, or misuse.
      • 1-Year Warranty on Leaf Springs, Lights, Wiring, Jockey Wheel, and All Other Parts.
      • Warranty Exclusion for Second-hand or Used Trailers or Goods.
